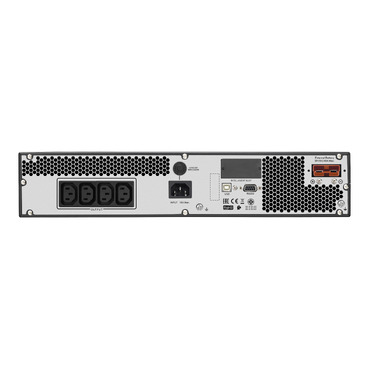

APC Easy UPS On-Line, 1000VA, Rackmount 4U, 230V, 4x IEC C13 outlets, Intelligent Card Slot, LCD, Extended runtime, W/O rail kit – SRV1KRIL
[ratingwidget type="page"]
For The Immediate delivery contact the sales team. Usually, Ship in 2-3 days, back order ship in 4-12 Weeks, images are for illustration purposes only.
AED 4,130.00 excl. VAT
Best Price: AED 4,026.75 on Bank Transfer / Cash Payment (-AED 103.25)
Estimated delivery between May 10, 2025 - Jul 21, 2025
APC Easy UPS On-Line, 1000VA, Rackmount 4U, 230V, 4x IEC C13 outlets, Intelligent Card Slot, LCD, Extended runtime, W/O rail kit – SRV1KRIL
- 1000VA/800W double-conversion on-line pure sine wave 4U rackmount UPS
- High operating efficiency in energy-saving ECO mode
- Add up to 4 external battery packs (SRV36RLBP-9A) for extended runtime
- Easy-to-read LCD interface for detailed and accurate information on UPS status
Overview
This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 1000VA double-conversion on-line 4U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRV comes with IEC 320 C14 input and 4x IEC 320 C13 outlets. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS.
- 1000VA/800W double-conversion on-line pure sine wave 4U rackmount UPS
- High operating efficiency in energy-saving ECO mode
- Add up to 4 external battery packs (SRV36RLBP-9A) for extended runtime
- Easy-to-read LCD interface for detailed and accurate information on UPS status
Published on lastbestprice.com
Specifications
Overview |
|
| Lead time | Usually in Stock |
Main |
|
| Main Input Voltage | 230 V |
| Product or component type | Uninterruptible power supply (UPS) |
| Other Input Voltage | 220 V |
| 240 V | |
| Main Output Voltage | 230 V |
| Other Output Voltage | 220 V |
| 240 V | |
| Rated power in W | 800 W |
| Rated power in VA | 1000 VA |
| Input Connection Type | IEC 60320 C14 |
| output connection type | 4 IEC 60320 C13 |
| Number of cables | 1 |
| Provided equipment | 1 IEC 60320 C13 to Schuko power cable |
| 1 IEC 60320 C13 to C14 power cable | |
| 1 USB cable | |
| 1 RS-232 configuration cable | |
| 1 battery cable | |
| rack mounting brackets | |
| user manual | |
| Provided equipment | CD with software |
| User manual | |
| USB cable | |
| Range of product | Easy UPS On-Line |
Batteries & Runtime |
|
| Efficiency | View Efficiency Graph |
| Battery type | Lead-acid battery |
| Battery voltage | 36 V |
| Extended runtime | 1 |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 4.5 h |
| Battery life | 3…5 year(s) |
| Battery charger power | 175 W rated |
General |
|
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Redundant | No |
Physical |
|
| Height | 17.2 cm |
| Width | 43.8 cm |
| Depth | 41.2 cm |
| Net weight | 27 kg |
| Mounting location | Front |
| Mounting preference | Lower |
| Mounting mode | Rack-mounted with kit |
| USB compatible | No |
| Mounting position | Horizontal |
Input |
|
| Input voltage limits | 110…285 V half load |
| 160…280 V full load | |
| Network frequency | 40…70 Hz auto sensing |
Output |
|
| Maximum configurable power in VA | 1000 VA |
| Maximum configurable power in W | 800 W |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Harmonic distortion | 3% |
| UPS type | Double conversion online |
| Wave type | Sine wave |
| Efficiency | 88 % (full load) |
| Additional information | Configurable for 220 : 230 or 240 nominal output voltage |
| Bypass type | Internal bypass (automatic and manual) |
| Crest factor | 3:01 |
Conformance |
|
| Product certifications | CE |
| Standards | EN/IEC 62040-1:2019/A11:2021 |
| EN/IEC 62040-2:2006/AC:2006 | |
| EN/IEC 62040-2:2018 | |
Environmental |
|
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % non-condensing |
| Operating altitude | 0…3000 m |
| Ambient air temperature for storage | -20…50 °C |
| Storage Relative Humidity | 0…95 % non-condensing |
| Storage altitude | 0…15000 m |
| Acoustic level | 50 dBA |
| Heat dissipation | 372 Btu/h |
| IP degree of protection | IP20 |
Communications & Management |
|
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| control panel | Multifunction LCD status and control console |
| Surge Protection and Filtering | |
| Surge energy rate | 600 J |
Packing Units |
|
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 48 cm |
| Package 1 Width | 60 cm |
| Package 1 Length | 50 cm |
| Package 1 Weight | 33.5 kg |
Contractual warranty |
|
| Warranty | 2 years repair or replace |
