QNAP 8-bay short-depth rackmount NAS AMD Ryzen V1000 series V1500B 4GB DDR4 2×2.5GbE LAN M.2 2280 NVMe/SATA SSD(PCIe Gen3x1) optional 10GbE expansion via PCIe 1xPCIe 3.0×8 slot USB 3.2 Gen2 Type-C & Type-A 2x300W PSU – TS-873AeU-RP-4G
[ratingwidget type="page"]
For The Immediate delivery contact the sales team. Usually, Ship in 2-3 days, backorder ship in 4-5 Weeks, images are for illustration purposes only.
Original price was: AED 9,238.00.AED 8,493.00Current price is: AED 8,493.00. excl. VAT
Best Price: AED 8,280.68 on Bank Transfer / Cash Payment (-AED 212.33)
Estimated delivery between Nov 9, 2024 - Nov 30, 2024
QNAP 8-bay short-depth rackmount NAS AMD Ryzen V1000 series V1500B 4GB DDR4 2×2.5GbE LAN M.2 2280 NVMe/SATA SSD(PCIe Gen3x1) optional 10GbE expansion via PCIe 1xPCIe 3.0×8 slot USB 3.2 Gen2 Type-C & Type-A 2x300W PSU – TS-873AeU-RP-4G
TS-873AeU-RP
Short Depth Rackmount dual-2.5GbE NAS. Powered by a Quad-core AMD Ryzen™ processor, supporting 10/25GbE or M.2 SSD caching PCIe expandability for virtual applications
(Supports QTS or QuTS hero operating systems)
(Supports QTS or QuTS hero operating systems)
Overview
Features
The compact 2U rackmount TS-873AeU-RP combines an AMD Ryzen™ V1000 series V1500B quad-core/eight-thread 2.2 GHz processor and dual-2.5GbE connectivity in one chassis. Compared to its previous generation, the TS-873AeU-RP is enhanced with two M.2 PCIe Gen3 x 1 ports for NVMe SSD cache acceleration or Edge TPU empowered AI image recognition. Cutting-edge hardware integrated with comprehensive software solutions makes the TS-873AeU-RP the preeminent choice to tackle resource-demanding applications and tasks, such as virtual machines or intensive multi-user access. The space-efficient short depth design of only 11.7 inches (297.4 mm) makes it easy to install in small media cabinets or places with a lot of cabling. The TS-873AeU-RP also features two redundant power supplies to ensure maximum system uptime.
Dual-2.5GbE connectivity
Features two 2.5GbE ports. Up to 5 Gbps transfer speeds can be achieved by using port trunking.
PCIe expandability
Features one PCIe Gen3 x 8 port. Add extra functionality with PCIe cards, including 10/25GbE ports, QM2, or Fibre Channel.
Optimized SSD performance
Features two M.2 PCIe Gen3 ports to install NVMe SSDs and empower Qtier™ and SSD caching technology.
Hybrid cloud storage
Supports block-based and file-based cloud storage gateways with local caching for low-latency access to cloud data.
Virtual machine applications
Host multiple virtual machines and containers to run a wide range of applications.
2U Short depth design
The rackmount NAS has a short-depth design of only 30 cm. It is perfectly suited for installation in a compact rack, or places with a lot of cabling.
2U Short depth design for up to 38% reduction in size
The 2U rackmount TS-873AeU-RP has a short depth design of only 11.7 inches (297.4 mm), making it an excellent choice for smaller racks, wall-mount AV rack cabinets, and network rack cabinets. The space saved by the short depth design can be reserved for cabling or ventilation. The TS-873AeU-RP is space-saving for flexible deployment and is especially suitable for multiple locations and applications including offices, audiovisual rooms, and security surveillance recording.
Note: Users can purchase the optional RAIL-B02 rail kit to deploy the TS-873AeU-RP in a 19-inch rack following the ANSI/EIA-RS-310-D standard.
Absolute performance with AMD Ryzen™ and up to 64GB RAM
Powered by a 4-core/8-thread AMD Ryzen™ V1500B 2.2GHz processor with AES-NI encryption acceleration and up to 64GB DDR4 RAM (supports ECC RAM), the rackmount TS-873AeU-RP delivers aggressive yet power-smart performance to drive resource-demanding business applications such as VDI, R&D, private cloud, and server virtualization.
Windows File Transfer (2x 2.5GbE) 10 Gigabytes file transfer |
Download
548 MB/s
|
Upload
590 MB/s
|
---|---|---|
Windows File Transfer with Encryption (2x 2.5GbE) 10 Gigabytes file transfer |
Download
548 MB/s
|
Upload
586 MB/s
|
Virtualization Certifications Supported by TS-873AeU-RP

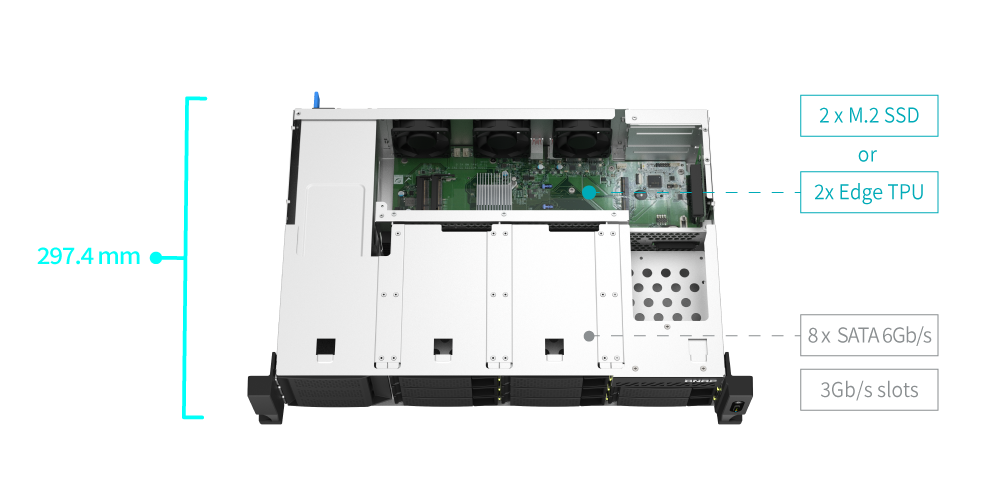

Two M.2 PCIe Gen3 slots for SSD caching and accelerated AI-powered image recognition
The 8-bay TS-873AeU-RP is equipped with two M.2 PCIe Gen3 x 1 slots, enabling cache acceleration or SSD storage pools for improved performance, or Edge TPU for AI image recognition.
Abundant I/O capabilities with PCIe Gen3 expansion
The TS-873AeU-RP has a PCIe Gen 3 x 8 slot that allows for installing various expansion cards for expanding application potential.
USB 3.2 Gen 2 (10Gbps) cards
Add extra USB ports to the TS-873AeU-RP to enhance large media file transfer experience.
Learn More: USB 3.2 Gen 2 (10Gbps) Expansion Card
Build an affordable Fibre Channel SAN environment
Common Fibre Channel Storage Area Networks (SAN) devices are often costly. By installing QNAP dual-port 16Gb Fibre Channel expansion cards in the TS-873AeU-RP, you have more budget-friendly options to add a NAS to a SAN environment. You can set a Fibre Channel Target using the iSCSI & Fibre Channel app. Moreover, the LUN Masking and Port Binding features provide an additional layer of data security.
Learn More: QNAP NAS supports Fibre Channel SAN, QNAP Fibre Channel cards
Comprehensive backup and disaster recovery solution
The TS-873AeU-RP supports various apps that cover all your backup needs. Practice safe IT habits by regularly backing up files and device content, allowing them to be easily restored when needed.
Multi-version snapshots mitigate ransomware threats
The TS-873AeU-RP supports block-based snapshots that record the state of the system at any time. It helps protect data, which can be restored back to a specific point of time, greatly helping in mitigating the threat of ransomware.
Reliable, high-performance storage for virtualization
The TS-873AeU-RP supports block-based iSCSI LUN as a reliable, high-performance, and affordable storage solution for mainstream virtualization environments. It supports VMware® VAAI and Microsoft® ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively.
Optimized performance for VMware Virtualization with iSER
The iSCSI Extensions for RDMA (iSER) protocol boosts the data transfer performance of VMware® ESXi storage and reduces the CPU load of the ESXi server. iSER support can be added to the TS-873AeU-RP by installing a QNAP QXG-10G2SF-CX4 10GbE PCIe card, which uses the Mellanox® ConnectX-4 controller. iSER can provide a significant increase in performance, providing an essential tool to optimize demanding virtualization applications.
Learn More: iSER
Note: To create an iSER connection with VMware ESXi, both the server and NAS require compatible Mellanox® NICs and switches compatible with Mellanox® or supporting PFC (Priority Flow Control) configuration.
All-in-one solution for hosting virtual machines and containers
By running multiple virtual machines and containers on the TS-873AeU-RP, you can deploy multi-tenant environments and applications to increase management efficiency and save hardware costs. Coupled with the Network & Virtual Switch app that boosts interoperability between virtual machines, containers, QNAP NAS, and other physical devices on the network, you can flexibly allocate physical and virtual network resources to simplify network deployment.
Comprehensive security and privilege settings
The TS-873AeU-RP is loaded with flexible privilege settings and security measures. Besides IP blocking, 2-step verification, HTTPS connection, there are more apps that help ensure optimal NAS protection against threats like malware and hackers.
Smart surveillance solution for 24/7 security
QVR Elite is QNAP’s subscription-based smart surveillance solution, allowing you to easily build a surveillance system with lower TCO and higher scalability. Recordings are saved as MP4 files, allowing playback on nearly every device. QVR Elite also integrates QNAP AI-based solutions to build smart facial recognition for retail and door access systems with QNAP NAS. You can arrange a dedicated, independent storage space for surveillance data on the TS-873AeU-RP and enjoy simplified camera management, storage space allocation, camera live viewing and playback.
Flexible and economical storage expansion
QNAP provides easy ways to expand your storage capacity. Here are several ways to expand your TS-873AeU-RP storage as needed to accommodate data and business growth.
More productivity-boosting applications
The TS-873AeU-RP provides an App Center that includes feature-rich apps to expand your NAS potential!
QuObjects
Run a high-performance S3 compatible development environment on your TS-873AeU-RP to simplify service development workflows from testing to production. You can also move cold data from the cloud to an on-premises QuObjects to save cloud storage costs.
Proxy Server
By using a high-capacity TS-873AeU-RP as a proxy server, online resources can be efficiently accessed with greater cost-savings and productivity, while network security is also enhanced at the same time.
If any of the S.M.A.R.T. values are reported as abnormal, or bad blocks are detected, you can take early action and replace drives before potential data loss occurs.
Switch to QuTS hero operating system for optimal data integrity and reliability
The TS-873AeU-RP also supports QuTS hero – QNAP’s ZFS-based NAS operating system. Providing end-to-end data integrity, data reduction (inline data deduplication, compression, and compaction), and much more, QuTS hero uses additional system resources to ensure an optimal environment for protecting business data.
QTS
Suited for performance-demanding tasks, cross-teams file sync, and HDD-SSD hybrid storage applications
QuTS hero
Featuring highly reliable data protection and data reduction, and optimized for SSD-based applications
Learn More: QuTS hero operating system, How to migrate data & folder permissions between QTS and QuTS hero with HBS3?
1. QTS and QuTS hero use different file systems. You must remove all the drives from the TS-873AeU-RP before switching from QTS to QuTS hero.
2. QuTS hero requires a NAS with at least 8 GB memory.
3. Inline Data Deduplication requires a NAS with at least 16 GB memory (at least 32 GB memory is recommended for optimal performance).
4. It is recommended to create an SSD RAID with at least two SSDs for the QuTS hero system drive to attain optimal system performance. Please note that M.2 SSD hot-swapping is only supported by M.2 SSD slots on PCIe cards (such as the QM2). M.2 SSD slots that are built into the NAS do not support hot-swapping.
Short Tech Specification
8-bay short-depth rackmount NAS, AMD Ryzen V1000 series V1500B 4C/8T 2.2GHz, 4GB DDR4 SODIMM RAM (max. 64GB total, optional ECC RAM support), 2 x 2.5GbE LAN, M.2 2280 NVMe/SATA SSD( PCIe Gen3x1), optional 10GbE expansion via PCIe, 1 x PCIe 3.0 x 8 slot, USB 3.2 Gen2 Type-C & Type-A, 2 x 300W PSU |
Detailed Tech Specification
Hardware Specs
TS-873AeU-RP-4G
CPU | AMD Ryzen™ Embedded V1500B 4-core/8-thread 2.2 GHz processor |
CPU Architecture | 64-bit x86 |
Floating Point Unit | ✓ |
Encryption Engine | ✓ (AES-NI) |
Hardware-accelerated Transcoding | Optional via a PCIe graphics card |
System Memory | 4 GB SODIMM DDR4 (1 x 4 GB) |
Maximum Memory | 64 GB (2 x 32 GB) |
Memory Slot | 2 x SODIMM DDR4 Support ECC memory For dual-DIMM configuration, you must use a pair of identical DDR4 modules.
|
Flash Memory | 5GB (Dual boot OS protection) |
Drive Bay | 8 x 3.5-inch SATA 6Gb/s, 3Gb/s
The system is shipped without HDD.
For the HDD compatibility list, please visit https://www.qnap.com/compatibility/ |
Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
Hot-swappable | ✓ |
M.2 Slot | 2 x M2 2280 (PCIe Gen3 x 1) |
SSD Cache Acceleration Support | ✓ |
GPU pass-through | ✓ |
2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via a network adapter |
10 Gigabit Ethernet Port | Optional via a network adapter |
Wake on LAN (WOL) |
✓ Only the 2.5GbE port
|
Jumbo Frame | ✓ |
PCIe Slot | 1 x PCIe Gen3 x8 |
USB 3.2 Gen 2 (10Gbps) Port | 4 (2 x Type A, 2 x Type C) |
HDMI Output | Optional via a PCIe graphics card |
Form Factor | 2U Rackmount |
LED Indicators | HDD 1-8, Status, LAN, USB, Power |
Buttons | Power, Reset |
Dimensions (HxWxD) | 89 × 482 × 297.4 mm |
Weight (Net) | 8.15 kg |
Weight (Gross) | 10.92 kg |
Operating Temperature | 0 – 40 °C (32°F – 104°F) |
Storage Temperature | -20 – 70°C (-4°F – 158°F) |
Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
Power Supply Unit | 300W PSU(x2), 100 – 240V |
Power Consumption: HDD Sleep Mode | 32.19 W |
Power Consumption: Operating Mode, Typical | 58.14 W
Tested fully populated with WD10EFRX hard drives.
|
Fan | 3 x 60mm, 12VDC |
System Warning | Buzzer |
Max. Number of Concurrent Connections (CIFS) – with Max. Memory | 2000 |
Processor | AMD Ryzen |
---|---|
Memory | 4GB |
