QNAP QSW-IM1200-8C, fan less industrial design, 8 ports 10GbE SFP+/RJ45, 4 ports 10GbE SFP+, rack mount/wall mount web managed switch – QSW-IM1200-8C
QSW-IM1200-8C
Industrial-grade Fanless full 10GbE Switch to accelerate high-speed network deployment in rugged industrial environments
Overview
Features
The rugged 12-Port 10GbE Managed Switch QSW-IM1200-8C has four 10GbE SFP+ fiber ports, eight 10GbE SFP+/RJ45 combo ports, and supports Layer 2 switching and network management to provide a user-friendly entry-level network management solution. With a robust industrial-grade hardware design and operating temperatures of -30 ~ 65° Celsius in airy environments (0.5~0.7m/s ) or -30 ~ 45° Celsius in enclosed spaces, the QSW-IM1200-8C enables high-speed network deployment in the rugged environments of Industry 4.0, smart transportation, and smart cities.
Rock-solid & Fanless
With an industrial hardened IP20 metal case, fanless design and ventilated construction, the QSW-IM1200-8C can operate in temperatures of -30 ~ 65° Celsius. The redundant DC power supply and circuit breaker also guarantees continuous operation.
NBASE-T Ethernet
The QSW-IM1200-8C is equipped with eight 10GbE SFP+/ RJ45 combo ports. Compatible with 10GbE and NBASE-T technologies to support five speeds (10G / 5G / 2.5G / 1G / 100M), the QSW-IM1200-8C offers higher transmission speeds when used with existing cables.
Layer 2 network
The QSW-IM1200-8C provides Layer 2 management features, such as LACP, VLAN, ACL and LLDP for users to efficiently control network bandwidth and enhance security.
User-friendly management interface
Featuring a user-friendly web UI, the QNAP Switch System (QSS) provides an overview dashboard, port management and setting guide, making central industrial network management intuitive and easy.
RSTP protocol
Supports Rapid Spanning Tree Protocol (RSTP). You can easily and efficiently deploy small/medium-scale networks that support expansion, redundancy and loop prevention.
Energy saving
Compliant with IEEE 802.3az Energy Efficient Ethernet and IEEE802.3x Flow Control in full-duplex mode, the QSW-IM1200-8C avoids packet loss from unparalleled bandwidth and reduces power consumption for low-speed and inactive connections.
Industrial-grade hardened hardware design
The QSW-IM1200-8C features an IP20-rated metal case, providing protection in rugged and industrial environments. Adopting a fanless design with ventilated construction, the QSW-IM1200-8C can operate in temperatures of -30 ~ 65° Celsius in airy environments (0.5~0.7m/s ) or -30 ~ 45° Celsius in enclosed space.
Flexible deployment combo ports and 10GbE / NBASE-T
The 12-port QSW-IM1200-8C switch includes four SFP+ (fiber) ports, and eight SFP+/RJ45 (copper) combo ports for connecting different interfaces. With RJ45 interfaces, 10GbE is supported using Cat 6a (or above) cables. Direct Attach Copper (DAC) cables can be used with SFP+ ports for connecting to servers inside a rack. The switching capacity of the QSW-M1208-8C is 240 Gbps, guaranteeing the full potential of each port. The QSW-IM1200-8C is also compatible with 10GbE and NBASE-T technologies to support up to five speeds (10G / 5G / 2.5G / 1G / 100M). The SFP+/RJ45 (copper) combo ports provide higher transmission speeds with existing cables. Depending on cable types and their lengths, different speeds can be achieved for faster, more efficient data transfer.
Note: If the distance between the switch and the device is less than 45 meters (148 feet), a Cat 6 cable can be used to achieve 10Gb/s speeds.

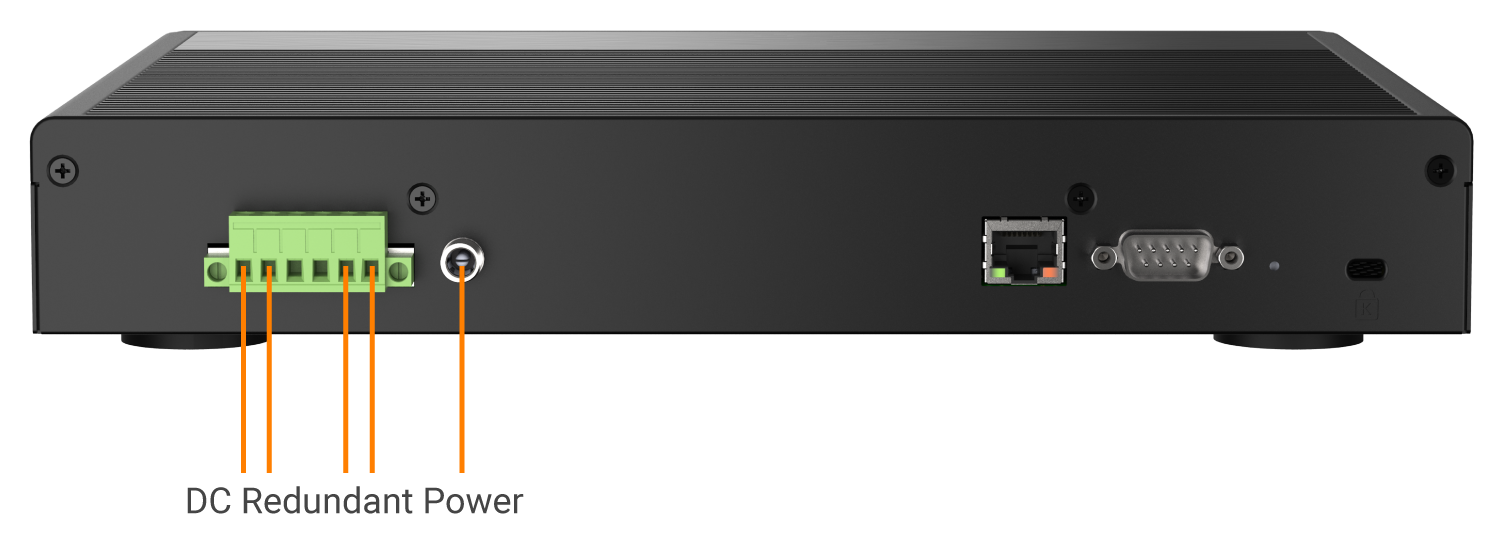

Redundant DC power for reliable operations in variable environments
The QSW-IM1200-8C has three redundant DC power input supplies and a circuit breaker to protect the electrical circuits from potential overvoltage in factories. The QSW-IM1200-8C ensures an uninterrupted power supply in constant-motion factories and outdoor environments with varying power supplies.
Fully embrace Industrial High-Speed Networking with QNAP!
From NAS with built-in 10GbE SFP+ and 10GBASE-T ports, or NAS with PCIe slots that support 10GbE network adapters, QNAP has led the industry in 10GbE adoption. Other high-speed network solutions from QNAP include Thunderbolt 3 to 10GbE Network Adapters and USB 3.2 Gen 1 to 5GbE Network Adapters for Mac®, Windows® or Industrial computers (IPC). These can all be used with the QSW-IM1200-8C to boost the performance of virtualization, surveillance, 3D printing, large-file data transfers, and other bandwidth-demanding tasks in industrial high-speed network environments.
Learn More: QNAP 10GbE NAS Solution, QNAP 10GbE Network Expansion Card, QNAP USB 3.2 Gen 1 to 5GbE Network Adapter, QNAP Thunderbolt 3 to 10GbE Network Adapter

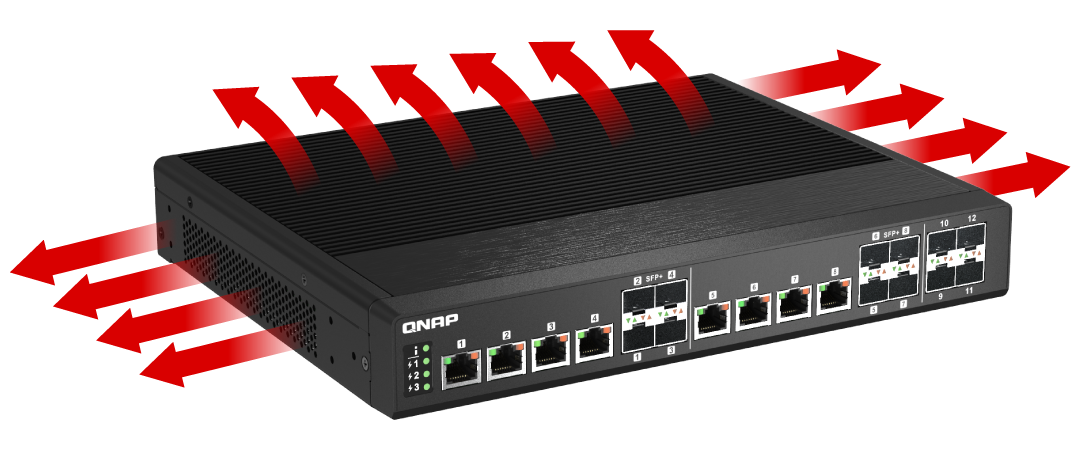

Fanless, energy saving design
With its fanless design and smart ventilated construction, the QSW-IM1200-8C ensures high-speed network performance without any moving parts. IEEE 802.3az (EEE) support also reduces power consumption without sacrificing performance or functionality. By dynamically detecting link speeds and activities and adjusting accordingly, the QSW-IM1200-8C provides energy savings of up to 50% to minimize operational costs.
QSS: Intuitive Network Management Software
The QNAP Switch System (QSS) features an easy-to-use Web GUI with value-added functions to simplify network set up and management.
Learn More: QSS
QSS: Human-centered settings guide
QSS provides an overview dashboard, port management and settings guide to help users control Layer 2 networks.
Optimize Network Performance with bandwidth and packet control
The QSW-IM1200-8C provides bandwidth and packet control functions (such as LACP, VLAN, QoS, and IGMP Snooping) to boost network performance through IP grouping and bandwidth management.
Powerful security and system functions
The QSW-IM1200-8C has powerful security and system functions (including ACL, LLDP, RSTP and Flow Control) to help users enhance network reliability using access controls, troubleshooting, loop prevention and avoiding packet loss.
Short Tech Specification
| QSW-IM1200-8C, fan less industrial design, 8 ports 10GbE SFP+/RJ45, 4 ports 10GbE SFP+, rack mount/wall mount web managed switch |
Detailed Tech Specification
Hardware Specs
QSW-IM1200-8C
| Management Type | Web Managed |
| Number of Ports | 12 |
| 10GbE SFP+ | 4 |
| 10GbE SFP+/RJ45 Combo Ports | 8 |
| Management Port | 1 x 1GbE RJ45 |
| Power Supply Description | Adapter |
| Max. Power Consumption | 78W |
| Input Power Type | DC |
| Input Voltage Range | 9V-54V |
| MAC Address Table | 16K |
| Total Non-Blocking Throughput | 120Gbps |
| Switching Capacity | 240Gbps |
| Management Interface | Web |
| Console | RS232 |
| Energy Efficient Ethernet (IEEE 802.3az complaint) | ✓ |
| Fanless | ✓ |
| Supported Standards | IEEE 802.3 Ethernet IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5G/5GBase-T IEEE 802.3an 10G BASE-T IEEE 802.3z 1000BASE-SX/LX IEEE 802.3ae 10G Fiber IEEE 802.3x Full-Duplex Flow Control IEEE 802.1Q VLAN Tagging IEEE 802.1w RSTP IEEE 802.3ad LACP IEEE 802.1AB LLDP IEEE 802.3az Energy Efficient Ethernet (IEEE 802.1p Class of Service) |
| Form Factor | Rackmount |
| LED Indicators | Per Port: Speed/Link/Activity Per System: Status/Power1/Power2/Power3 |
| Buttons | Reset button |
| Dimensions (HxWxD) | 43.5 x 285 x 238 mm |
| Weight (Net) | 4.58 kg |
| Weight (Gross) | 5.31 kg |
| Operating Temperature | Natural convection (in airy environments 0.5~0.7m/s) operating temperature -30°C-65°C (-22°F –149°F) in airy environments Non natural convection operating temperature -30°C-45°C (-22°F –113°F) |
| Relative Humidity | 5~95% Non-condensing |
| Certifications | CE, FCC, VCCI, BSMI |
| Electromagnetic Compliance | Class A |
| Jumbo Frames | 9K |
| Warranty | 2 Years |
