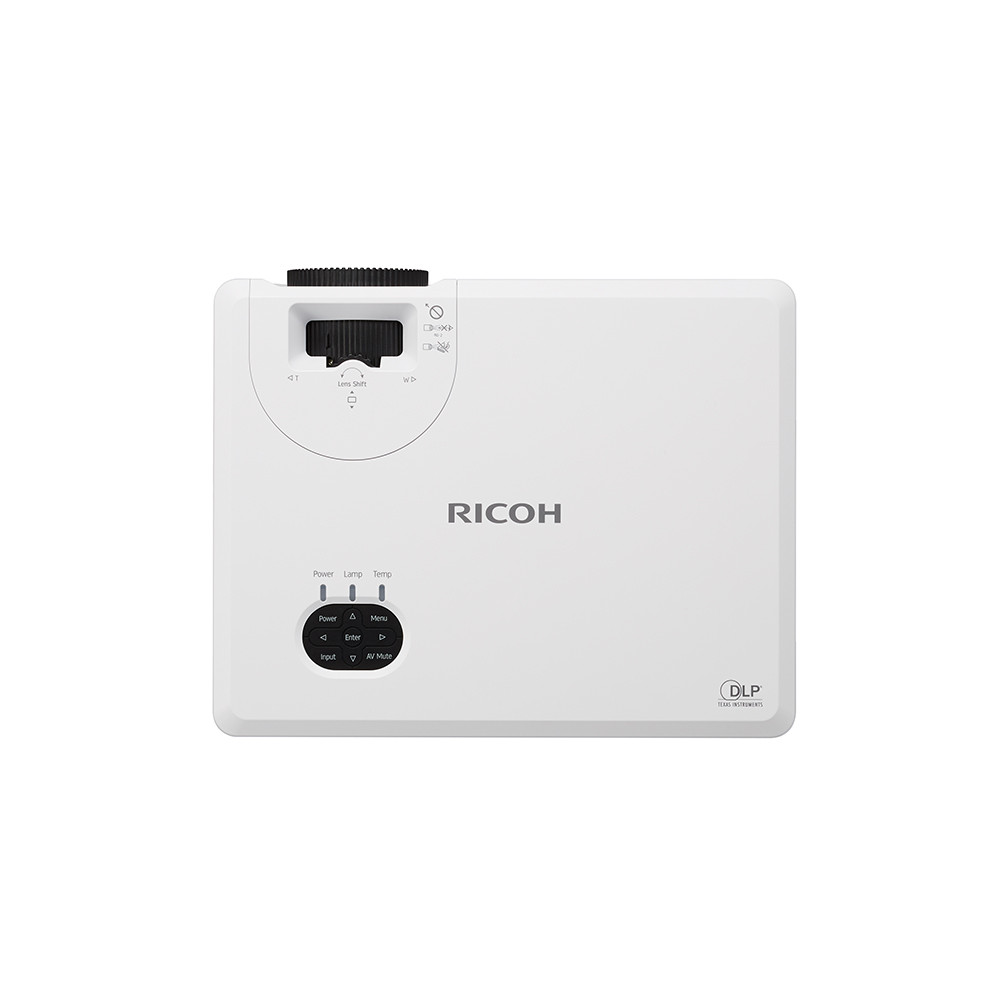

Ricoh PJ WXL5860 Business & Classroom Laser Projector – PJ WXL5860



• Higher lumen count of 4,700 lumens allows for users to project in a variety of settings.
• Laser light technology enables fast, high-quality image projection and allows for quick power-off.
• Equipped with HDMI 2.0 connectivity; 4K signal compatible
• Vertical lens shift functionality allows for easy adjustment of the image position without having to move the projector
• Supports 360-degree installation for ceiling, floor, or wall projection
• Resolution: PJ WXL5860 1280×800 (WXGA)

PN: PJ WXL5860



---



Overview



Projecting high quality, with a compact design

The RICOH PJ WXL5860 offers lifelike color reproduction and versatile setup options to elevate your viewing experience—even when space is limited.

Easy to set-up and use, its small size, light weight and fast start-up make it ideally suited for ad-hoc use, when it may be moved from room to room.

Key features:

• Adjustable screen size ranging from 30” to 300”
• Higher lumen count of 4,700 lumens allows for users to project in a variety of settings, including brightly-lit meeting rooms.
• Lightweight and small footprint provides a versatile, day-to-day solution for small to medium presentation spaces.
• Laser light technology enables fast, high-quality image projection and allows for quick power-off.
• With maintenance-free operation up to 20,000 hours, laser technology offers a great improvement over conventional lamp technology.
• Equipped with HDMI 2.0 connectivity; 4K signal compatible
• Vertical lens shift functionality allows for easy adjustment of the image position without having to move the projector
• Ensure a perfectly rectangular view, even with offset projector positions, with built-in four corner correction and keystone adjustments
• Supports 360-degree installation for ceiling, floor, or wall projection
• IP6X dust-proof design with a fully enclosed optical engine, no filters are required
• Resolution: PJ WXL5860 1280 x 800 (WXGA)
• Includes a customizable ID remote control and two 8 integrated Watt speakers





Projecting high quality, even in small spaces

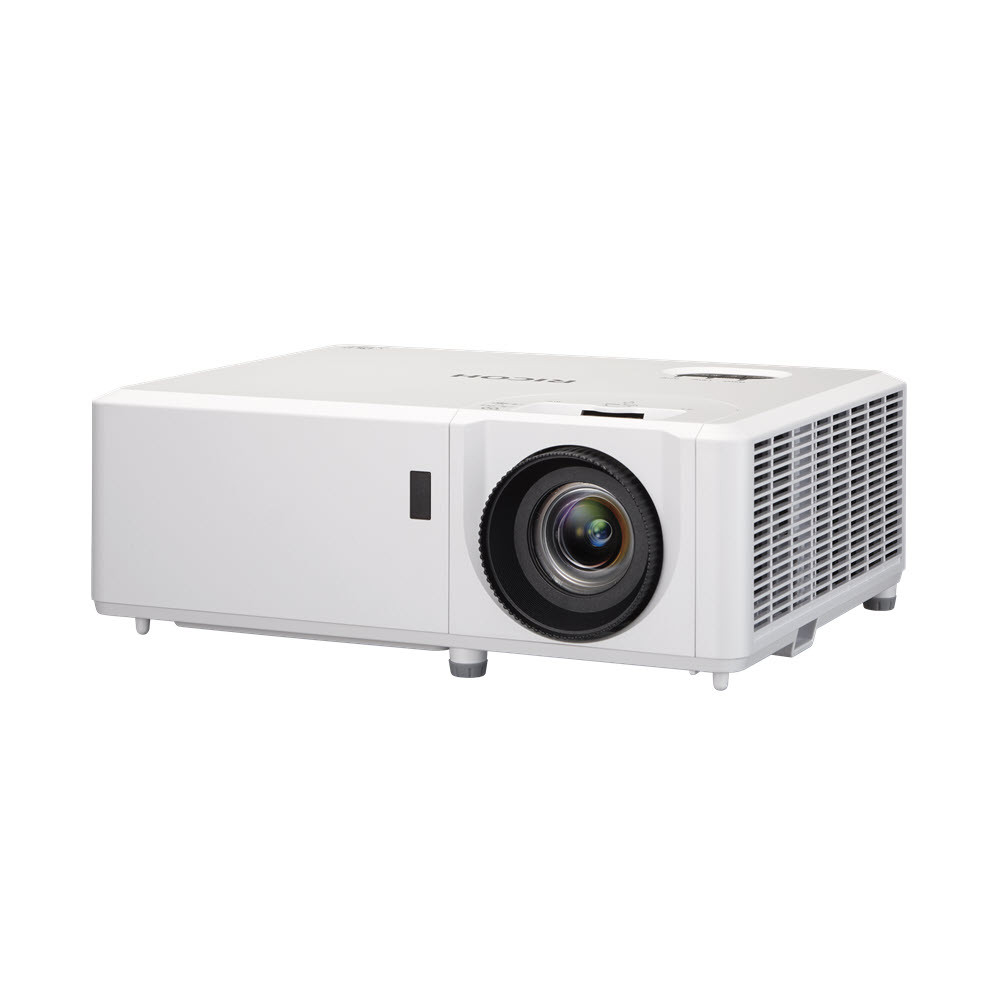

Compact and Portable Design

At just 4.3 kg (PJ WXL5860 model) and 4.6kg (PJ WUL5860 model) in weight and with a footprint of only 337 x 265 x 108mm, RICOH Compact Laser Projectors provide a versatile, short throw day-to-day solution for smaller presentation spaces.



Multi-Module Laser Light Source

The multi-module structure laser light source supports continuous operation for 7 x 24 hours and outputs a stable brightness of 4000-4700lm (subject to model). The laser beam is produced by multiple laser diodes, increasing reliability. It offers three laser power modes: Normal, Eco, and Image ECO. The Image ECO mode can dynamically adjust power consumption based on image brightness, extending the life of the laser diode.



High Image Quality and Wide Colour Gamut

These DLP projectors use RICOH’s unique NCE natural colour gain technology, efficiently covering over 92% of the Rec.709 colour gamut range and delivering natural and realistic colours.

20,000 Hour-Long Life

The laser light source has a long life of 20,000 hours, which is 6-7 times the life of a typical projector bulb source.

Quick start-up

Full brightness is achieved within seconds of turning the projector on. The light will also turn off as soon as the unit is powered off.

4K Signal Compatible Display

The PJ WUL5860 and PJ WXL5860 models are compatible with 3840×2160 60HZ, which means they can directly play 4K resolution format audio and video content.

Horizontal and Vertical Keystone/Four Corners Correction

Complex or uneven installation surfaces can cause distortion of the image. The four corners correction function can adjust each corner of the projection screen separately, supplemented by horizontal and vertical keystone adjustment, delivering a rectangular final image.

Vertical Lens Shift

The +10% (PJ WUL5860) and +12.4% (PJ WXL5860) vertical lens adjustment ranges make these models easier to ceiling-mount, enabling image adjustment without moving the unit.

IP6X Dust-Proof Design

Dust is a key factor affecting the life of a projector. The fully closed optical engine in both models meets the IP6X dust-proof standard, effectively eliminating image speckle, brightness decline, and projector life decline that dust can cause, as well as significantly reducing the cost of maintenance and consumables.



HDMI2.0

The HDMI2.0 interface expands bandwidth to 18GBps, achieving a refresh rate of 50/60Hz in 4K image transmission – about twice that of HDMI1.4. This makes playback lively, smooth and much gentler to the human eye.

360-degree Installation and Portrait Orientation Support

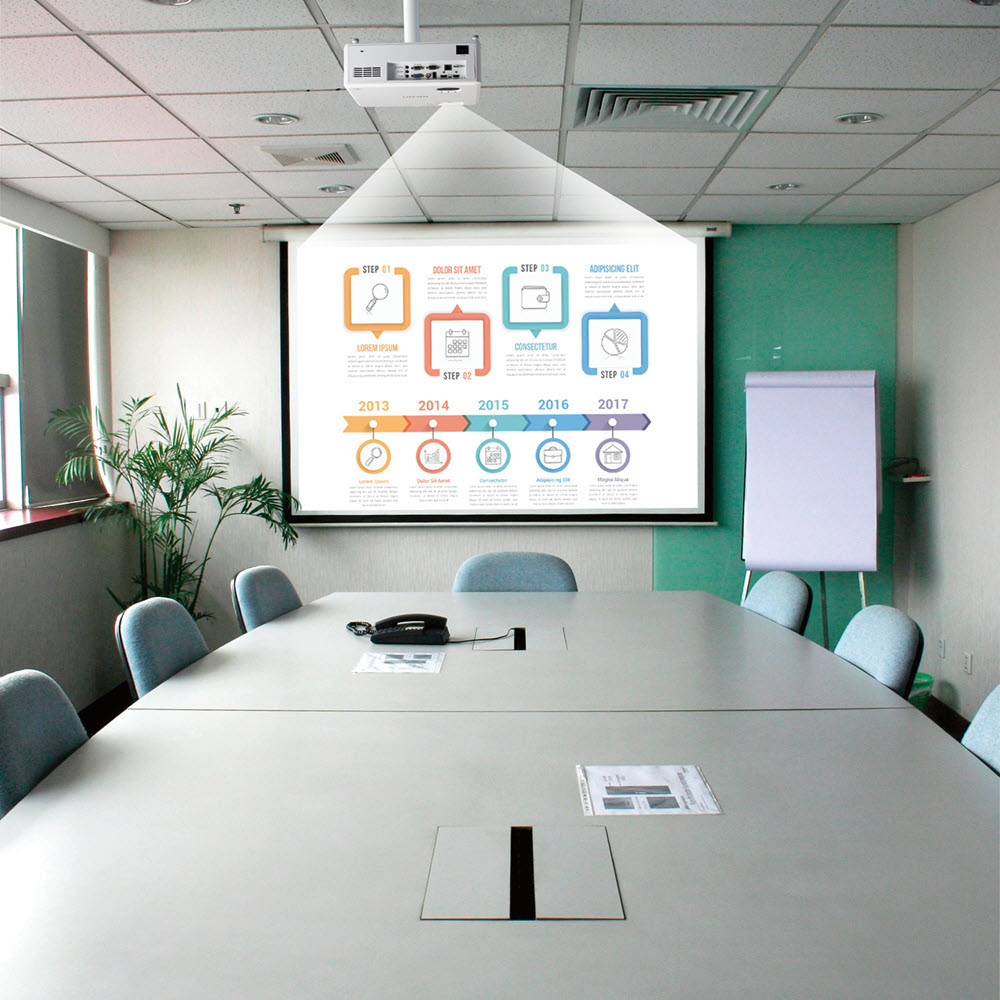

The PJ WUL5860 and PJ WXL5860 projectors can be installed to project through 360 degrees, making them highly flexible, reducing installation limitations and greatly expanding the application range.

Supports DICOM SIM medical mode

Equipped with DICOM SIM (Digital Imaging and Communications in Medicine Simulation), these models are suitable for projecting monochromatic medical images, such as X-ray films, MRI, and tomography images. Details of medical images can be presented to a wider audience in a large, high-definition format, ideal for medical education environments.



Customisable ID Remote Control

Up to 99 projectors can be assigned a separate ID and individually controlled, one at a time.

Mercury-free

The solid-state semiconductor laser light source used in the PJ WUL5860 and PJ WXL5860 models contains no harmful mercury elements – unlike many bulb projectors which use high voltage mercury lamps.



















Published on lastbestprice.com

---



Specifications



Model name			PJ WXL5860
Projection system			DLP
Chip size			0.65”
Brightness			4,700lm
Contrast ratio			5,000,000:1
Aspect ratio			16:10
Light source			Laser
Light source life time			20,000h(*)
Projection size			30-300inch
Projection distance			1.0-7.2m
Throw ratio			1.113-1.523
Resolution			1,280 x 800(WXGA)
Color reproduction			1,073,000,000
Focus			Manual
Zoom ratio			1.36
Lens shift			Vertical +12.4%
Keystone			Horizontal/Vertical:±30%
Four corners correction			Support
Dust proof			IP6X

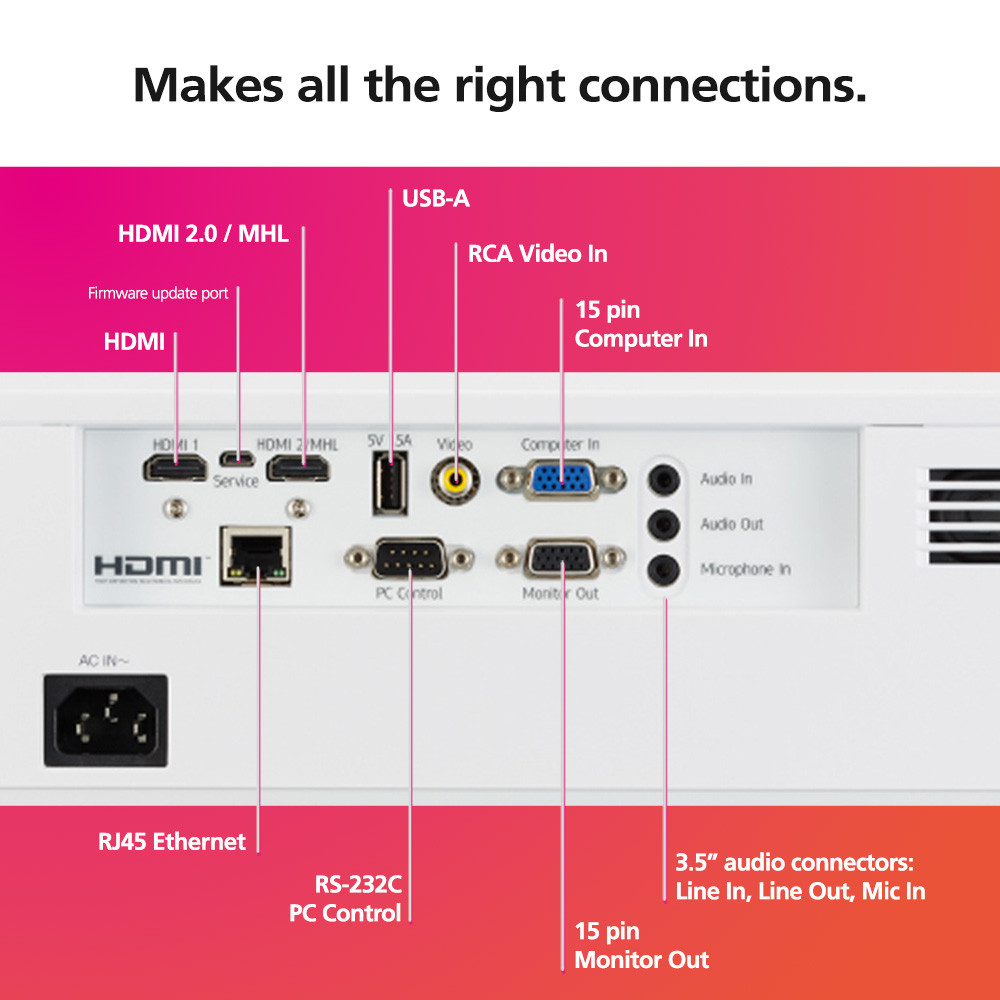

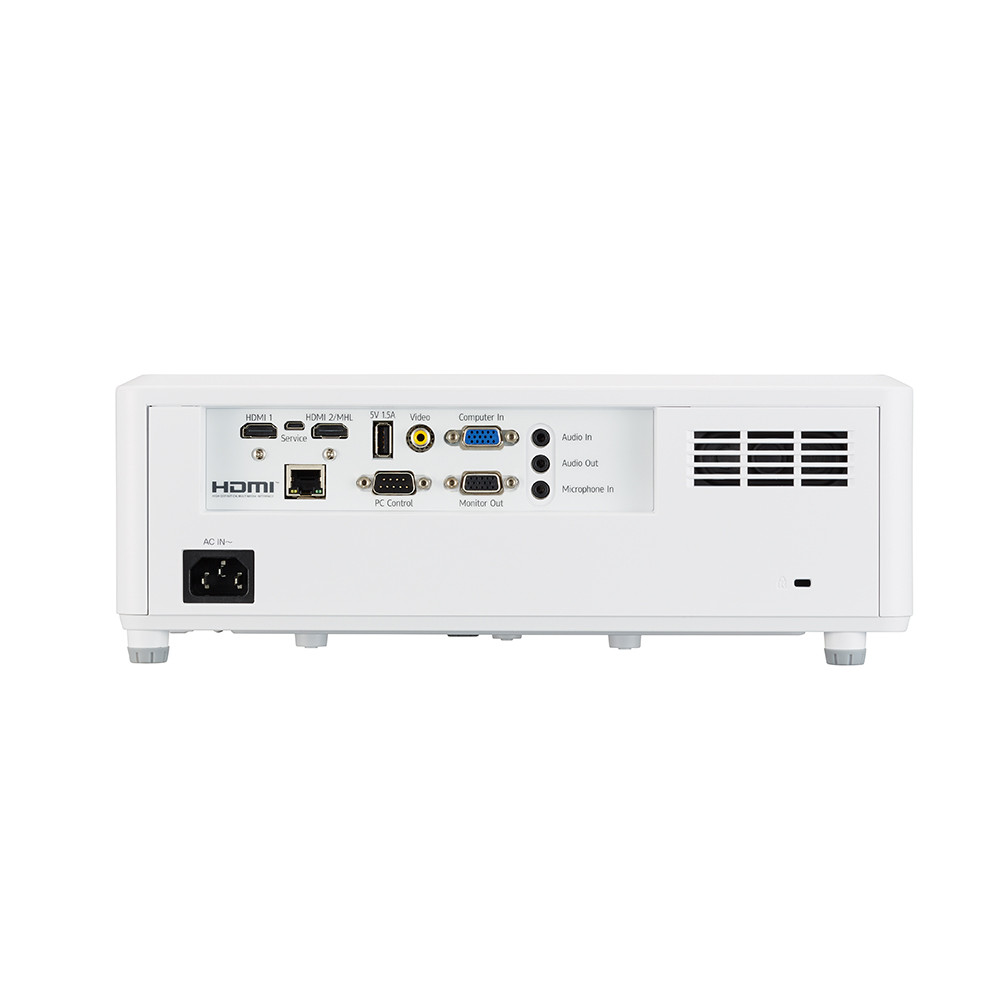

Interfaces	Input	Computer	Mini D-SUB15pin x1
		HDMI1	HDMI(1.4) x1
		HDMI2/MHL	HDMI(2.0)/MHL(2.2) x1
		Video	RCA(Yellow) x1
		Audio 1	3.5mm mini jack x1
		Audio 2	3.5mm mini jack x1
	Output	Computer	Mini D-SUB15pin x1
		Audio	3.5mm mini jack x1
	Control	Wired LAN	RJ45 x1
		PC control	RS232C x1
	Others	USB	USB Type A x1
		USB(FW update)	USB micro B x1
Noise(standard/eco)			<34db/<33db
Dimension (W x D x H mm) – (without feet)			337 x 265 x 108
Weight			<5kg
Environment condition			Temperature: 0°C~40°C Humidity: 0-85%(non-condensing)
Power supply voltage			100-240V 50/60Hz
Power consumption			300W/230W@110V 300W/225W@220V
Stand by power consumption			<0.5W
High altitude mode			Support
Speaker			8W x2

• (*)Running time until the initial brightness reduces to 40%.
• (Life time varies depending on usage conditions and environment.)



Projection distance

PJ WXL5860
Screen size	Projection distance (D/m)		Offset (Hd/m)
	Wide	Tele	Min	Max
60	1.44	1.97	0	0.10
80	1.92	2.62	0	0.13
100	2.40	3.28	0	0.17
120	2.88	3.94	0	0.20
150	3.60	4.92	0	0.25
200	4.79	6.56	0	0.33
300	7.19	–	0	0.50
