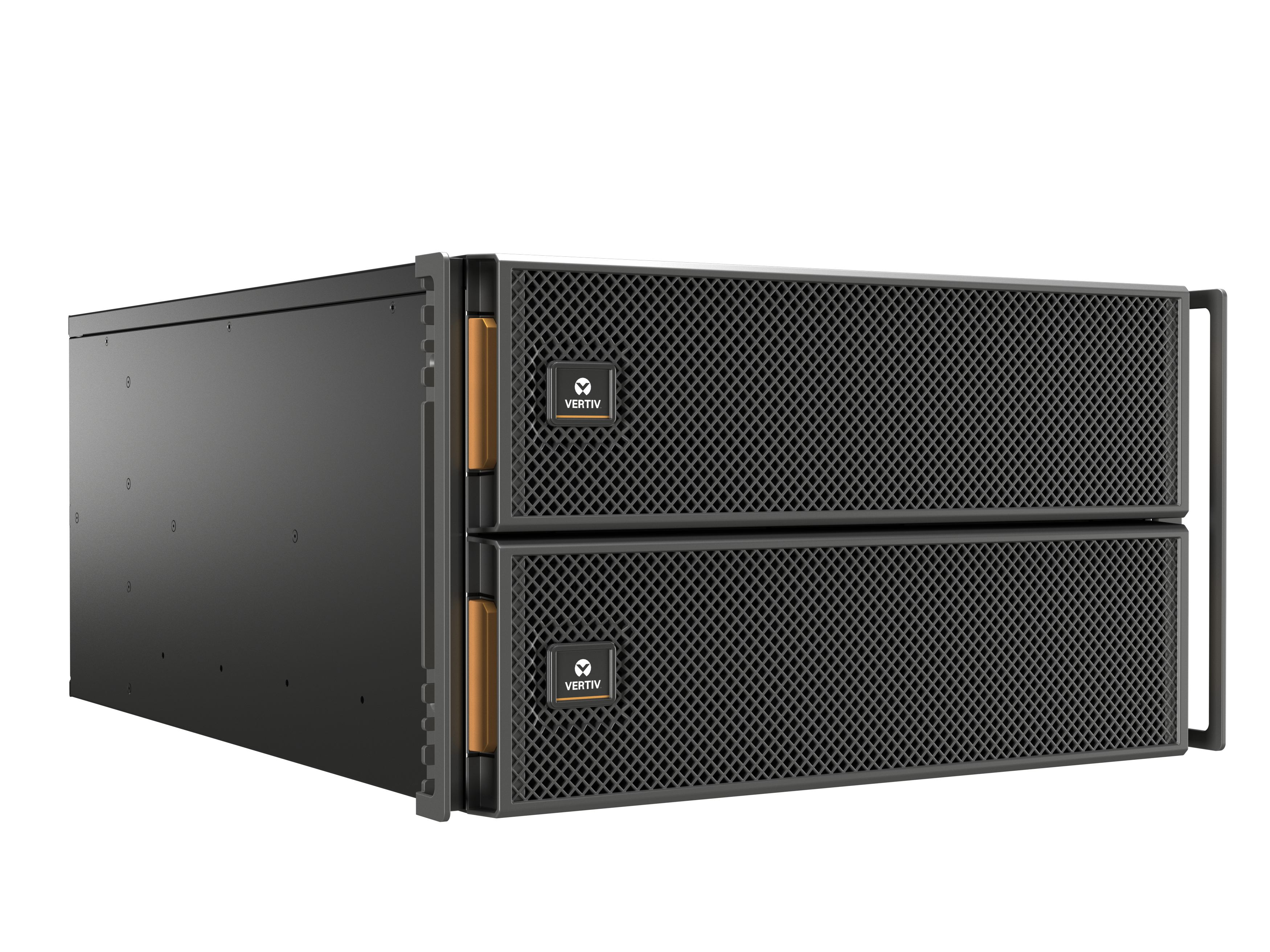

Vertiv Liebert GXT5 external battery cabinet for 16kVA-20kVA – GXT5-EBC384VRT6U





Vertiv Liebert GXT5 External Battery 384V for Liebert GXT5 UPS (16 – 20kVA)

The Vertiv Liebert GXT5-EBC384VRT6U is an external hot-swappable, lead-acid UPS battery cabinet designed for use with these UPS models: Liebert GXT5-16KIRT9UXLE and Liebert GXT5-20KIRT9UXLE. Its new auto detection feature makes installation easy and fast ensuring the UPS configuration is complete and accurate. Users can connect to up to 10 external battery cabinets to a single UPS for extended runtime.





Overview



The full range of single-phase Vertiv™ Liebert® GXT5 UPS systems are easy to deploy with convertible rack/tower design that offers installation flexibility. Its gravity-sensing, color LCD provides a user-friendly interface for local configuration and management. Setup and integration are also easy with auto-detection of matching external battery cabinets for additional runtime solutions. With available network interface card (NIC), the Vertiv suite of management solutions including Trellis™ Power Insight and Vertiv™ LIFE™ Services are available to support your critical infrastructure. Designed for high availability and capacity, these compact UPS models with output power factors up to unity provide more usable power for connected equipment. High efficiency operation of this Energy Star 2.0 certified UPS means you get protection while supporting sustainability. Increased efficiency is also achieved with Active ECO operating mode.

Key Benefits





Short Tech Specification



Vertiv Liebert GXT5 external battery cabinet for 16kVA – 20kVA product variants





Detailed Tech Specification



GXT5-EBC384VRT6U



USED WITH UPS MODEL

• 16 – 20 KVA MODELS



Dimensions (D×W×H)

Unit

• 630 x 430 x 261



Weight (kg)

Unit

• 112



Battery

Type

• Valve-regulated, non-spillable, lead acid

Qty×V

• 32 × 12V



Environmental Requirements

Operating Temperature,°F (°C)

• 0 to 40 (32 to 104)

Storage Temperature, °F(°C)

• -15 to 40 (5 to 104)

Relative Humidity

• 0 – 95%, non-condensing

Operating Elevation

• Up to 9,842.5 ft. (3000m) at 77ºF (25ºC)



Agency

Safety

• IEC62040-1:2008 version, GS mark; UL1778, c-UL listed

Transportation

• ISTA Procedure 1E
