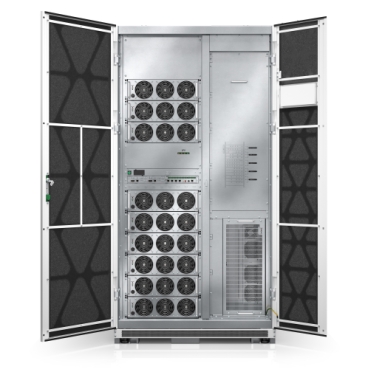

APC Easy UPS 3L 500kVA 400V 3:3 UPS Startup 5×8 – E3LUPS500KHS
Brand: APC
Call for Price
For The Immediate delivery contact the sales team. Usually, Ship in 2-3 days, back order ship in 4-12 Weeks, images are for illustration purposes only.
[ratingwidget type="page"]
Call for Price
Best Price: AED 0.00 on Credit / Debit card / Cash Payment (AED 0.00)
For urgent delivery, please contact sales before ordering. Orders usually ship as per the estimated delivery date in certain case backorders may take 4–12 weeks. Images are for illustration only and may differ from the actual item.
APC Easy UPS 3L 500kVA 400V 3:3 UPS Startup 5×8 – E3LUPS500KHS
Overview
E3LUPS500KHS Features
Run time for load
—
Max. Capacity Used
Output power capacity
500.0kWatts / 500.0kVA
Nominal Output Voltage
400V 3PH
Nominal Input Voltage
400V 3PH
Maximum Input Current
899.0A
Easy UPS 3L 500kVA 400V 3:3 UPS, Startup 5×8
Easy-to-configure, easy-to-use and easy-to-service 500 kVA 3 phase UPS. With its exceptional combination of competitive specifications, compact footprint, and highly available parallel and redundant designs, the EcoStruxure Ready Schneider Electric Easy UPS 3L is the easy choice for business continuity on your shop floor, in your electrical room, or in your data center. Includes 5×8 start-up service.
Includes: Dust filter, Installation manual, Start-up service
Easy UPS 3L Features & Benefits
Protection
Replaceable dust filters
protect the UPS in harsh environments.
Wide Input Voltage Window
Saves your battery power for when you really need it – during power cuts!
Optional SNMP Card
When you purchase the SNMP card, you can monitor and manage UPS status remotely through the UPS Web interface or through EcoStruxure IT’s cloud-based and on-premise software suites. Click here for more information about EcoStruxure IT.
Parallel capability
Multiple units can be placed in parallel to meet power capacity and redundancy requirements
Convenience
Smallest footprint
Minimizes your real estate expenses
ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
LCD graphics touch screen display
Full color text and mimic diagrams that easily display modes of operation, systems parameters and alarms.
Published on lastbestprice.com
Detailed Tech Specs
Output
Max Configurable Power (Watts)
500.0kWatts / 500.0kVA
Output Frequency (sync to mains)
50 Hz Sync to mains, 60 Hz Sync to mains
Other Output Voltages
380 V, 415 V
Topology
Double conversion online
Overload Operation
10 minutes at 125% and 60 seconds at 150%
Output Voltage THD
< 2% linear load and < 4% non-linear load
Input
Input frequency
40 - 70 Hz
Input voltage range for main operations
323 - 477 V
Input Total Harmonic Distortion
Less than 3 % for full load
Other Input Voltages
380 V, 415 V
Maximum Short Circuit Withstand (Icw)
35.0kAmps
Input Power Factor at Full Load
0.99
Batteries & Runtime
Battery type
External battery system
Nominal Battery Voltage
+/- 216...+/- 300 V
End of Discharge Battery Voltage
+/- 172.8...+/- 240 V
Maximum Available Short Circuit Current
35kAmps
Efficiency
Communications & Management
Control panel
Touch screen LCD user interface
Physical
Maximum Height
1970MM, 197.0CM
Maximum Width
1000MM, 100.0CM
Maximum Depth
850MM, 85.0CM
Net Weight
640.0KG
Shipping weight
688.0KG
Shipping Height
2115MM, 211.5CM
Shipping Width
1015MM, 101.5CM
Shipping Depth
1200MM, 120.0CM
Color
White
Environmental
Operating Temperature
0 - 30 °C
Operating Relative Humidity
0 - 95 (Non-condensing) %
Operating Elevation
0 - 1499.92meters
Storage Temperature
-25 - 55 °C
Storage Relative Humidity
0 - 95 (Non-condensing) %
Storage Elevation
0 - 14999.8meters
Audible noise at 1 meter from surface of unit
72.0dBA
Online thermal dissipation
108507.0BTU/hr
Protection Class
IP20
Conformance
Approvals
CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM
Standard warranty
1 year on-site repair or replace with factory authorized Start-Up
Sustainable Offer Status
RoHS
Compliant
Other Environmental Compliance
China RoHS
