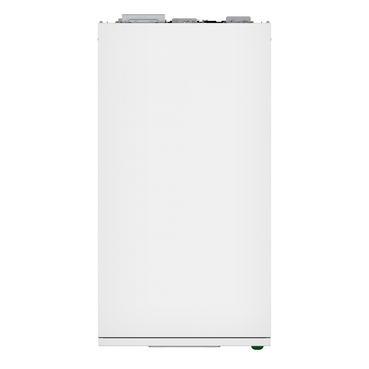

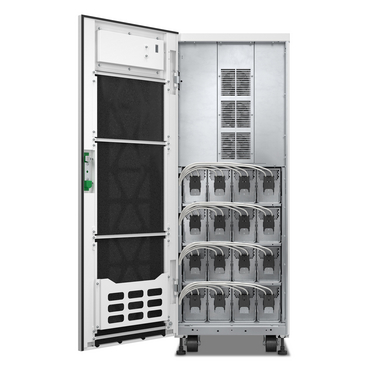

APC Easy UPS 3S Pro 30kVA 400V 3:3 UPS for internal batteries – E3SP30KHB
Brand: APC
Call for Price
APC Easy UPS 3S Pro 30kVA 400V
- Easy UPS 3S Pro is easy to install and start up
- Parallel up to 4 UPSs for capacity or redundancy
- Extended runtime options available
- EcoStruxure IT: Enables resilient, secure, and sustainable IT environments
- Part No: E3SP30KHB
[ratingwidget type="page"]
Call for Price
Best Price: AED 0.00 on Credit / Debit card / Cash Payment (AED 0.00)
For urgent delivery, please contact sales before ordering. Orders usually ship as per the estimated delivery date in certain case backorders may take 4–12 weeks. Images are for illustration only and may differ from the actual item.
APC Easy UPS 3S Pro 30kVA 400V 3:3 UPS for internal batteries – E3SP30KHB
Overview
High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 30 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is for internal batteries, but is supplied without batteries, so you can easily customize the battery runtime.
- Easy UPS 3S Pro is easy to install and start up
- Parallel up to 4 UPSs for capacity or redundancy
- Extended runtime options available
- EcoStruxure IT: Enables resilient, secure, and sustainable IT environments
Published on lastbestprice.com
Detailed Tech Specs
Main |
|
| Main input voltage | 400 V 3 phases |
| 380 V 3 phases | |
| 415 V 3 phases | |
| Maximum input current | 46 A |
| Max short time withstand current | 16 kA |
| Input harmonic distortion | Less than 3 % for full load |
| Load power factor | From 0.7 leading to 0.7 lagging without any derating |
| Input connection | hard wire |
| Input frequency | 40...70 Hz |
| Output voltage | 400 V 3 phases |
| 380 V 3 phases | |
| 415 V 3 phases | |
| Rated power in W | 30 kW |
| Rated power in VA | 30 kVA |
| Output connection | Hard wire |
| Crest factor | 03:01 |
| Maximum configurable power in VA | 30 kVA |
| Maximum configurable power in W | 30 kW |
| Output harmonic distortion | < 1% linear load and < 5% non-linear load |
| Output overload operation | 10 minutes at 125% and 60 seconds at 150% |
| Output voltage tolerance | +/- 10% |
| UPS topology | Double conversion online |
| Output frequency | 50/60 Hz +/- 0.1 % |
Complementary |
|
| Battery type | Lead-acid internal |
| Control panel | Touch screen LCD user interface |
| UPS connectivity | Pre-installed network management card 3 |
| Color | White |
| Height | 140 cm |
| Width | 50 cm |
| Depth | 94 cm |
| Product weight | 151 kg |
| Provided equipment | Dust filter |
| Installation manual | |
| Redundant | No |
| Product or component type | Uninterruptible power supply (UPS) |
Environment |
|
| Product certification | EN/IEC 62040-1 |
| EN/IEC 62040-2 | |
| EN/IEC 62040-3 | |
| ISTA 2B | |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -25…55 °C |
| Storage altitude | 0…25400 mm |
| IP protection | IP20 |
| Relative humidity | 0…95 % |
| Storage relative humidity | 0…95 % non-condensing |
| Acoustic level | 61 dB |
| Heat dissipation | 4681 Btu/h |
Batteries & Runtime |
|
| Discharge battery voltage | 384 V |
Packing Units |
|
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 140.000 cm |
| Package 1 Width | 50.000 cm |
| Package 1 Length | 94.000 cm |
| Package 1 Weight | 151.000 kg |
