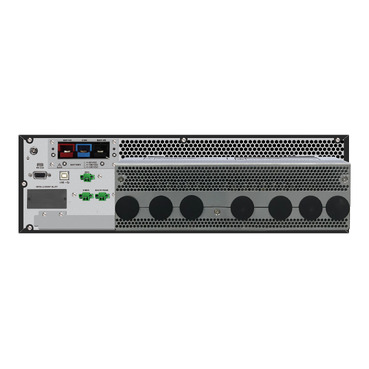

APC Easy UPS On-Line, 15kVA/15kW, Rackmount 9U, 230V, Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD, Extended Runtime, W/ Rail Kit – SRV15KRILRK
Brand: APC
Call for Price
APC Easy UPS On-Line 15kVA/15kW
- 15kVA/15kW double-conversion on-line pure sine wave 9U rackmount UPS
- High operating efficiency in energy-saving ECO mode
- Add up to 10 external battery packs (SRV120RLBP2-9A) for extended runtime
- Easy-to-read LCD interface for detailed and accurate information on UPS status
- Part No: SRV15KRILRK
[ratingwidget type="page"]
Call for Price
Best Price: AED 0.00 on Credit / Debit card / Cash Payment (AED 0.00)
For urgent delivery, please contact sales before ordering. Orders usually ship as per the estimated delivery date in certain case backorders may take 4–12 weeks. Images are for illustration only and may differ from the actual item.
APC Easy UPS On-Line, 15kVA/15kW, Rackmount 9U, 230V, Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD, Extended Runtime, W/ Rail Kit – SRV15KRILRK
Overview
- 15kVA/15kW double-conversion on-line pure sine wave 9U rackmount UPS
- High operating efficiency in energy-saving ECO mode
- Add up to 10 external battery packs (SRV120RLBP2-9A) for extended runtime
- Easy-to-read LCD interface for detailed and accurate information on UPS status
Published on lastbestprice.com
Specifications
| Main | |
| Run time for load | |
| Min-max: 1500-15000 W | 4min 37s |
| Max. Capacity Used | 100% |
| Main Input Voltage | 230 V AC |
| 415 V AC | |
| Product or component type | Uninterruptible power supply (UPS) |
| Other Input Voltage | 220 V |
| 230 V | |
| 415 V | |
| Main Output Voltage | 230 V |
| Other Output Voltage | 220 V |
| 240 V | |
| Rated power in W | 15000 W |
| rated power in VA | 15000 VA |
| Output connector type | Hard wire 3-wire (1P + N + E) 1 |
| Number of rack unit | 9U |
| Provided equipment | 1 USB cable |
| 1 RS-232 configuration cable | |
| 3 rack mounting brackets | |
| 3 stabilization/wall mounting feet | |
| 6 jumper bar | |
| 2 external battery pack | |
| 1 battery cable | |
| user manual | |
| Range of product | Easy UPS On-Line |
| Batteries & Runtime | |
| Run Time | View Runtime Graph |
| Efficiency | View Efficiency Graph |
| Battery type | Lead-acid battery |
| Battery voltage | +/- 120 V |
| Extended runtime | 1 |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 6 h |
| Battery charger power | 2340 W rated |
| General | |
| Redundant | No |
| Physical | |
| Colour | Black (RAL 7010) |
| Height | 39.3 cm |
| Width | 43.8 cm |
| Depth | 69.0 cm |
| Net weight | 157 kg |
| Mounting location | Front |
| Mounting preference | No preference |
| Mounting mode | Rack-mounted |
| USB compatible | Yes |
| Mounting position | Horizontal |
| Input | |
| Input voltage limits | 110...300 V half load |
| 176...300 V full load | |

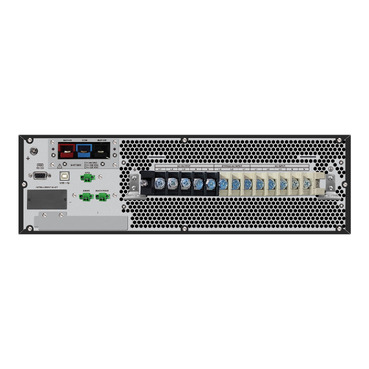

| Number of input connectors | 1 hard wire 3-wire (1P + N + E) |
| 1 hard wire 5-wire (3P + N + E) | |
| Network frequency | 40...70 Hz auto sensing |
| Output | |
| Maximum configurable power in VA | 15000 VA |
| Maximum configurable power in W | 15000 W |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Harmonic distortion | 2% |
| UPS type | Double conversion online |
| Wave type | Sine wave |
| Efficiency | 95 % (full load) |
| Additional information | Configurable for 220 : 230 or 240 nominal output voltage |
| Bypass type | Internal bypass (automatic and manual) |
| Crest factor | 3:01 |
| Conformance | |
| Product certifications | CE |
| UKCA | |
| Standards | EN/IEC 62040-1:2019/A11:2021 |
| EN/IEC 62040-2:2006/AC:2006 | |
| EN/IEC 62040-2:2018 | |
| Environmental | |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % non-condensing |
| Operating altitude | 0...3000 m |
| Ambient air temperature for storage | -20…60 °C |
| Storage Relative Humidity | 0…95 % non-condensing |
| Storage altitude | 0…15000 m |
| Acoustic level | 65 dBA |
| Heat dissipation | 2503 Btu/h |
| IP degree of protection | IP20 |
| Communications & Management | |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Emergency power off | Yes |
| control panel | Multifunction LCD status and control console |
| Surge Protection and Filtering | |
| Surge energy rate | 600 J |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1000 mm |
| Package 1 Width | 900 mm |
| Package 1 Length | 600 mm |
| Package 1 Weight | 196 kg |
| Contractual warranty | |
| Warranty | 2 years repair or replace |
