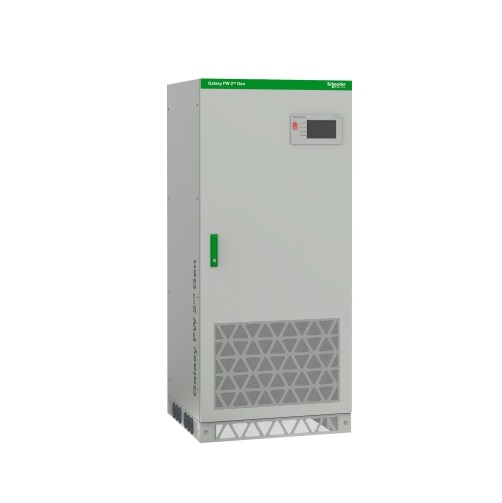

APC Galaxy PW 2nd Gen 40kVA 3:1 UPS 220VAC 6 pulse 384VDC, Start-up 5×8 – EPWUPS40KU6PS
Brand: APC
[ratingwidget type="page"]
APC Galaxy PW 2nd Gen 40kVA
- Built-in isolation transformer
- Resilient in industrial applications, with conformal coating and IP31 protection
- Upstream and downstream breaker coordination
- 40 kA lighting protection module
- EcoStruxure IT option: Enables resilient, secure, and sustainable IT environments
- Part No : EPWUPS40KU6PS
AED 48,340.00 excl. VAT
Best Price: AED 47,131.50 on Bank Transfer / Cash Payment (-AED 1,208.50)
Estimated delivery between Jan 15, 2026 - Mar 27, 2026
For urgent delivery, please contact sales before ordering. Orders usually ship as per the estimated delivery date in certain case backorders may take 4–12 weeks. Images are for illustration only and may differ from the actual item.
APC Galaxy PW 2nd Gen 40kVA 3:1 UPS 220VAC 6 pulse 384VDC, Start-up 5×8 – EPWUPS40KU6PS
Overview
Transformer-based 40 kVA 3-phase input, single-phase output UPS with 6-pulse SCR technology and a 384 VDC internal DC bus. Ideal for industrial applications, this UPS includes 5×8 start-up service.
- Built-in isolation transformer
- Resilient in industrial applications, with conformal coating and IP31 protection
- Upstream and downstream breaker coordination
- 40 kA lighting protection module
- EcoStruxure IT option: Enables resilient, secure, and sustainable IT environments
Published on lastbestprice.com
Specifications
Overview |
|
| Presentation | Transformer-based 40 kVA 3-phase input, single-phase output UPS with 6-pulse SCR technology and a 384 VDC internal DC bus. Ideal for industrial applications, this UPS includes 5×8 start-up service. |
Main |
|
| Main Input Voltage | 400 V 3 phases |
| Other Input Voltage | 380 V |
| 400 V | |
| 415 V | |
| Main Output Voltage | 230 V 3 phases |
| Other Output Voltage | 220/230/240 V |
| Rated power in W | 32 kW |
| rated power in VA | 40 kVA |
Batteries & Runtime |
|
| Battery voltage | 384 V |
| Max current discharge | 114 A |
General |
|
| Redundant | No |
| Product or component type | Uninterruptible power supply (UPS) |
Physical |
|
| Colour | Light grey |
| Height | 180 cm |
| Width | 80 cm |
| Depth | 80 m |
| Net weight | 579 kg |
Input |
|
| Network frequency | 45…55 Hz |
| Input voltage limits | 400 V |
| Maximum input current | 92 A |
| Max short time withstand current | 10 kA |
| Input protection type | Circuit breaker |
Output |
|
| Maximum configurable power in W | 32 kW |
| Harmonic distortion | Less than 2 % |
| Output frequency | 50 Hz +/- 1 % |
| Wave type | Sine wave |
| Output voltage tolerance | +/- 1 % |
| Output harmonic distortion | < 2% linear load and < 4% non-linear load |
| Output overload operation | 10 minutes at 125% and 60 seconds at 150% |
| Maximum configurable power in VA | 40 kVA |
Conformance |
|
| Product certifications | CE |
| Standards | IEC 62040-1-1 |
| IEC 62040-2 | |
| IEC 62040-3 | |
| IEC 62040-4 | |
| ISTA 2B | |
Environmental |
|
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % non-condensing |
| Operating altitude | 0…2000 m |
| Ambient air temperature for storage | -25…55 °C |
| Storage Relative Humidity | 0…95 % non-condensing |
| Storage altitude | 0…10000 m |
| Acoustic level | 70 dB/1m |
| Heat dissipation | 9192 Btu/h |
| IP degree of protection | IP31 |
Communications & Management |
|
| control panel | Touch screen LCD user interface |
Packing Units |
|
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2085 mm |
| Package 1 Width | 928 mm |
| Package 1 Length | 928 mm |
| Package 1 Weight | 653 kg |
Contractual warranty |
|
| Warranty | 1 year on-site repair or replace with factory authorized Start-Up |
Published on lastbestprice.com
