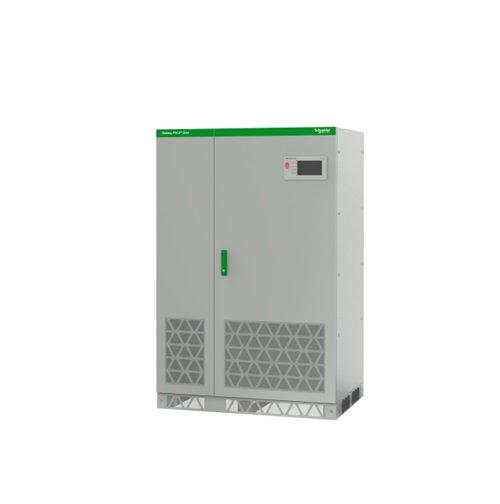

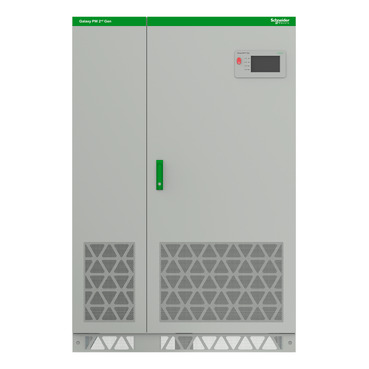

APC Galaxy PW 2nd Gen 50kVA 3:1 UPS 220VAC 12 Pulse 220VDC with input transformer, Startup 5×8 – EPWUPS50KU12PTS
Brand: APC
Call for Price
[ratingwidget type="page"]
Call for Price
Best Price: AED 0.00 on Credit / Debit card / Cash Payment (AED 0.00)
For urgent delivery, please contact sales before ordering. Orders usually ship as per the estimated delivery date in certain case backorders may take 4–12 weeks. Images are for illustration only and may differ from the actual item.
APC Galaxy PW 2nd Gen 50kVA 3:1 UPS 220VAC 12 Pulse 220VDC with input transformer, Startup 5×8 – EPWUPS50KU12PTS
Overview
Transformer-based 50 kVA 3-phase input, single-phase output UPS with 12-pulse SCR technology and a 220 VDC internal DC bus. Ideal for industrial applications, this UPS includes 5×8 start-up service.
Published on lastbestprice.com
Specifications
Overview |
|
| Presentation | Transformer-based 50 kVA 3-phase input, single-phase output UPS with 12-pulse SCR technology and a 220 VDC internal DC bus. Ideal for industrial applications, this UPS includes 5x8 start-up service. |
Main |
|
| Main Input Voltage | 400 V 3 phases |
| Other Input Voltage | 380 V |
| 415 V | |
| Main Output Voltage | 400 V 3 phases |
| Other Output Voltage | 380 V |
| 415 V | |
| Rated power in W | 40 kW |
| rated power in VA | 50 kVA |
Batteries & Runtime |
|
| Battery voltage | 192...240 V |
| Max current discharge | 289 A |
General |
|
| Redundant | No |
| Product or component type | Uninterruptible power supply (UPS) |
Physical |
|
| Colour | Light grey |
| Height | 180 cm |
| Width | 120 cm |
| Depth | 80 cm |
| Net weight | 876 kg |
Input |
|
| Network frequency | 45...55 Hz |
| Input voltage limits | 400 V |
| Maximum input current | 112 A |
| Max short time withstand current | 10 kA |
Output |
|
| Maximum configurable power in W | 40 kW |
| Harmonic distortion | Less than 2 % |
| Output frequency | 50 Hz +/- 1 % |
| Wave type | Sine wave |
| Output harmonic distortion | < 2% linear load and < 4% non-linear load |
| Output overload operation | 10 minutes at 125% and 60 seconds at 150% |
| Maximum configurable power in VA | 50 kVA |
Conformance |
|
| Product certifications | CE |
| Standards | IEC 62040-1-1 |
| IEC 62040-2 | |
| IEC 62040-3 | |
| IEC 62040-4 | |
| ISTA 2B | |
Environmental |
|
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % non-condensing |
| Operating altitude | 0...3281 ft |
| Ambient air temperature for storage | -25…55 °C |
| Storage Relative Humidity | 0…95 % non-condensing |
| Storage altitude | 0…9999.9 m |
| Acoustic level | 70 dBA |
| Heat dissipation | 7250 Btu/h |
| IP degree of protection | IP31 |
Communications & Management |
|
| control panel | Touch screen LCD user interface |
Packing Units |
|
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2085 mm |
| Package 1 Width | 928 mm |
| Package 1 Length | 1328 mm |
| Package 1 Weight | 963 kg |
Contractual warranty |
|
| Warranty | 1 year on-site repair or replace with factory authorized Start-Up |
Published on lastbestprice.com
