Netshelter SX Roof Fan Tray 208-230 VAC – ACF502


$ 329.74

  • AED: AED 1,180.00

For Immediate delivery requirement contact sales team., Usually Ship in 1-3 Days Back to Back 2-3 Weeks Images are for illustration purposes only
SKU: ACF502 Categories: , Tag:


Netshelter SX Roof Fan Tray 208-230 VAC – ACF502


Roof Fan Tray 208/230VAC 50/60HZ for NetShelter SX 600mm Wide x 1070mm Deep Enclosures

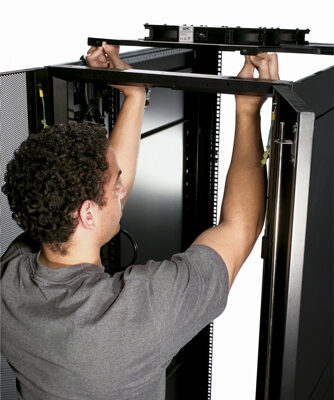

The Rack Fan Tray is a low cost solution that aids in heat removal from a Netshelter Enclosure. The system easily installs into the top of the enclosure and expels heat from the roof of the rack. Wall-mounted enclosures have the additional option of installing the rack fan tray systems in the base of the rack as well. The fan trays are designed to promote bottom to top airflow within the enclosure.




Roof Fan Tray 208/230VAC 50/60HZ for NetShelter SX 600mm Wide x 1070mm Deep Enclosures

  • Facilitates overhead cable management
    Overhead cable troughs and partitions install toollessly on the roof of the enclosure eliminating the need for ceiling mounted or underfloor mounted cable trays. Cable troughs and partitions are designed to manage both power and data cables while maintaining separation.
  • Fan guards
    A safety measure that provides protection from the fan opening by covering the inlet.
  • Ships fully assembled
    NetShelter VX Enclosures ship fully assembled reducing the time required to install equipment.

Rack Air DistributionFeatures & Benefits

  • Increases Airflow
    Provides proper intake temperatures, increasing equipment life.
  • Easy to install
    Innovative design allows for fast, easy installation by almost anybody.



  • Nominal Input Voltage

    208V , 230V

  • Input frequency

    50/60 Hz

  • Input Connections

    British BS1363A, IEC-320 C14, Schuko CEE 7/7P

  • Number of Power Cords



  • Maximum Height

    60mm , 6.0cm

  • Maximum Width

    574mm , 57.4cm

  • Maximum Depth

    893mm , 89.3cm

  • Net Weight


  • Shipping weight


  • Shipping Height

    152mm , 15.2cm

  • Shipping Width

    749mm , 74.9cm

  • Shipping Depth

    991mm , 99.1cm

  • Color



  • Audible noise at 1 meter from surface of unit



  • Approvals

    CSA C22.2 No. 60950, PSE, UL 60950, VDE

  • Standard warranty

    2 years repair or replace

Sustainable Offer Status

  • RoHS


  • Other Environmental Compliance

    China RoHS


  • Air Flow
