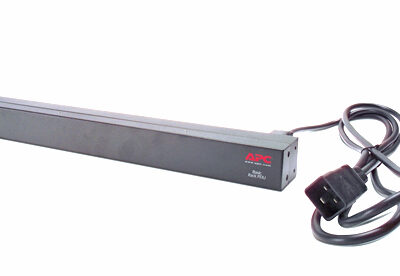

Rack PDU Basic 1U 16A 208/230V (12)C13 – AP9565
[ratingwidget type="page"]
For The Immediate delivery contact the sales team. Usually, Ship in 2-3 days, back order ship in 4-12 Weeks, images are for illustration purposes only.
AED 1,007.00 excl. VAT
Best Price: AED 981.83 on Bank Transfer / Cash Payment (-AED 25.18)
Estimated delivery between Dec 6, 2024 - Dec 23, 2024
Rack PDU Basic 1U 16A 208/230V (12)C13 – AP9565
Overview
AP9565 Features
Rack Height
1U
Output Connections
(12) IEC 60320 C13
Nominal Output Voltage
208V, 230V
Nominal Input Voltage
200V, 208V, 230V
Input Connections
IEC 60320 C20
Cord Length
2.5meters
Rack PDU, Basic, 1U, 16A, 208/230V, (12)C13
Reliable rack power distribution designed to increase manageability and efficiency in the data center The output and input connections are (12)C13 Real-time remote monitoring of connected loads User-defined alarms warn IT and data center managers of potential circuit overloads to prevent accidental power loss to critical equipment.
Includes: Installation guide, Rack mounting brackets
NetShelter Basic Rack PDUs Features & Benefits
Total cost of Ownership
Low Cost Power Distribution
Provides a number of outlets to bring power to rack equipment at an affordable price.
Agility
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most – in the racks near the equipment.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 17.3kW using a single branch whip.
Detailed Tech Specification
Output
Maximum Total Current Draw
16
Input
Input frequency
50/60 Hz
Number of Power Cords
1
Load Capacity
3680VA
Maximum Input Current
16A
Physical
Maximum Height
44MM, 4.4CM
Maximum Width
447MM, 44.7CM
Maximum Depth
57MM, 5.7CM
Net Weight
2.05KG
Shipping weight
3.64KG
Shipping Height
70MM, 7.0CM
Shipping Width
464MM, 46.4CM
Shipping Depth
229MM, 22.9CM
Color
Black
Environmental
Operating Temperature
0 – 45 °C
Operating Relative Humidity
0 – 95 %
Operating Elevation
0 – 3048meters
Storage Temperature
-25 – 65 °C
Storage Relative Humidity
0 – 95 %
Storage Elevation
0 – 15240meters
Conformance
Approvals
CE, cUL listed, Queensland Australia, UL 60950, UL listed, VDE
Standard warranty
2 years repair or replace
Sustainable Offer Status
RoHS
Compliant
PEP
Available in Documentation tab
EOLI
Available in Documentation tab
