ATEN 16-Port Short Depth PS/2-USB VGA Single Rail WideScreen LCD KVM Switch – CL3116NX-ATA-AE
Brand: ATEN
AED 8,495.00 excl. VAT
ATEN 16-Port Short Depth PS/2-USB VGA
- Exclusive LED illumination light
- Integrated LCD KVM console with an 18.5” LED-backlit widescreen LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack
- Cascade up to 2 levels – CL3116 controls up to 256 computers from a single console
- Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneously booting multiple computers even when the console focus is elsewhere
[ratingwidget type="page"]
AED 8,495.00 excl. VAT
Best Price: AED 8,282.63 on Bank Transfer / Cash Payment (-AED 212.38)
Estimated delivery between May 8, 2026 - May 21, 2026
For urgent delivery, please contact sales before ordering. Orders usually ship as per the estimated delivery date in certain case backorders may take 4–12 weeks. Images are for illustration only and may differ from the actual item.
ATEN 16-Port Short Depth PS/2-USB VGA Single Rail WideScreen LCD KVM Switch – CL3116NX-ATA-AE
- Exclusive LED illumination light
- Integrated LCD KVM console with an 18.5” LED-backlit widescreen LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack
- Cascade up to 2 levels – CL3116 controls up to 256 computers from a single console
- Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneously booting multiple computers even when the console focus is elsewhere
Overview

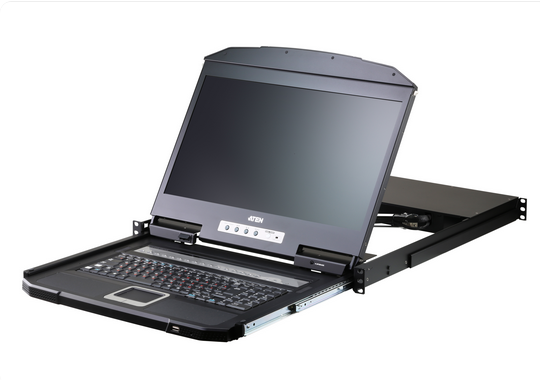

The ATEN CL3116 LCD KVM Switch offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 18.5″ LED-backlit LCD monitor, and a touchpad in a 1U rack-mountable sliding housing. The short-depth design maximizes space utility for equipping rack-mounting devices in narrow spaces. In addition, its exclusive LED illumination light provides users with proper visibility when working in low-light conditions.

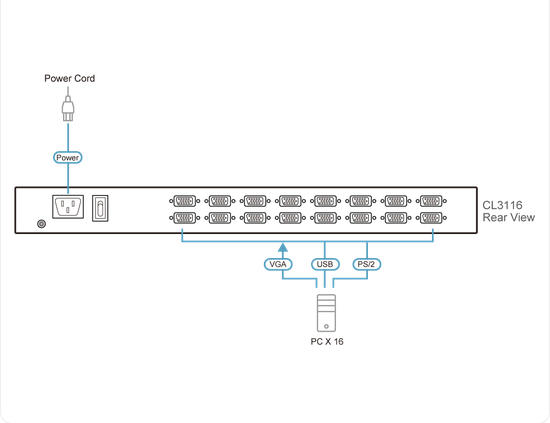

The CL3116 can control up to 16 computers; when 16 additional KVM switches are cascaded, a single CL3116 LCD KVM Switch can control up to 256 computers. To achieve greater operational efficiency, the CL3116 offers Broadcast mode, which the console spreads out the commands to all computers to perform operations simultaneously. Besides, the Auto scan mode fulfills the needs for continuous monitoring a specific group of computers, and establishing a reliable working environment for users.
To enhance information safety, the CL3116 provides two-level password security which restricts unauthorized users from viewing and controlling the computers. For added convenience, the CL3116 comes with an additional hot-pluggable USB mouse port that only supports HID device for keyboard and mouse.
As a feature-rich LCD KVM Switch, the CL3116 is aimed not just to achieve but exceed the requirements for space utility optimization, superior video quality, adaptive deployment, and operational versatility, and thus is ideal for control rooms with limited space in any industry.
Note: Optional rack mount kits are available. For more information, refer to Compatible Accessories below.
Package Contents
- 1x CL3116 LCD KVM Switch with Standard Rack Mounting Kit
- 2x Custom KVM Cables (VGA, USB; 1.8 m/6 ft)
- 1x Firmware Upgrade Cable (1.8 m/6 ft)
- 1x Power Cord
- 1x User Instructions
Features
Space Utility Optimization
- Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
- Integrated LCD KVM console with an 18.5” LED-backlit widescreen LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack
- Short-depth design allows you to work with your rack-mounting equipment in narrow spaces
- Console lock – enables the console drawer to remain securely locked away in position when not in use
Reliability and Operational Versatility
- Superior video quality – up to 1366 x 768 @60Hz; DDC2B
- Cascade up to 2 levels – CL3116 controls up to 256 computers from a single console (With compatible KVM Switches: CS1308/CS1316)
- Dual Interface – supports computers with PS/2 or USB keyboards and mice
- Auto PS/2 and USB interface detection
- Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneously booting multiple computers even when the console focus is elsewhere
- Computer selection via pushbuttons, hotkeys, and multilingual on-screen display (OSD)
- Broadcast mode – allows you to send commands from the console to all computers to perform operations simultaneously
- Two level password security – only authorized users can view and control computers
- Auto Scan mode – enables continuous monitoring of user-selected computers
- Keyboard Language support: English(US); English(UK); French, German, German(Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, Traditional Chinese and Turkish.
- Additional hot-pluggable USB mouse port on front panel that supports HID device for keyboard and mouse
Installation Flexibility
- Standard rack mount kit included
- Optional rack mount kits available including easy installation options*
- No software required
- Firmware upgradable
- Supports hot-plugging
Published on lastbestprice.com
Detailed Tech Specs
| Function | CL3116NX |
Computer Connections |
|
| Direct | 16 |
| Maximum | 256 (via Cascade) |
| Port Selection | OSD, Hotkey, Pushbutton |
Connectors |
|

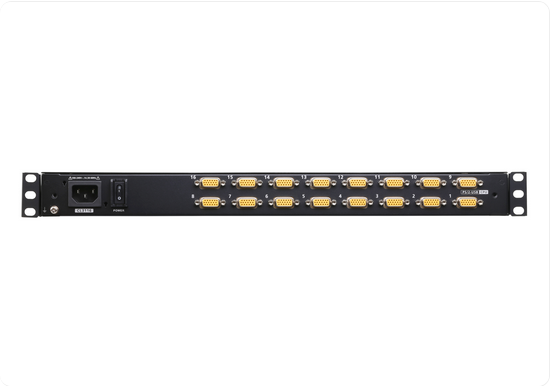

| KVM Ports | 16 x SPHD Female (Yellow) |
| Firmware Upgrade | 1 x 3.5mm Audio Jack Female (Black) |
| Power | 1 x IEC 60320/C14 |
| External Mouse Port | 1 x USB Type A Female (Front) |
Switches |
|
| Port Selection | 16 x Pushbutton |
| Reset | 1 x Semi-recessed Pushbutton |
| Firmware Upgrade | 1 x Slide Switch |
| Power | 1 x Rocker Switch |
| LCD Control | 4 x Pushbutton |
| LCD Power | 1 x LED Pushbutton |
LEDs |
|
| Online | 16 (Orange) |
| Selected | 16 (Green) |
| Power | 1 x KVM Console (Dark Green) |
| 1 x LCD (Orange) | |
| Lock | 1 x Num Lock (Green) |
| 1 x Caps Lock (Green) | |
| 1 x Scroll Lock (Green) | |
| LED Illumination Light | 1 x LED Illumination Light |
Panel Spec |
|
| LCD Module | 18.5" TFT-LCD |
| Resolution | 1366 x 768 @ 60 Hz |
| Response time | 5 ms |
| Viewing Angle | 170° (H), 160° (V) |
| Pixel Pitch | 0.3 mm x 0.3 mm |
| Support Color | 16.77M colors |
| Contrast Ratio | 1000:01:00 |
| Luminance | 450 cd/m² |
Video |
|
| Input Video Resolution | up to 1920 × 1200 @ 60 Hz; |
| 1366 × 768 @ 60 Hz, DDC2B | |
| Scan Interval | 1-255 seconds |
Emulation |
|
| Keyboard / Mouse | PS/2, USB |
| Maximum Input Power Rating | 100–240 V AC, 50-60 Hz, 1 A |
| Power Consumption | AC110V:14.1W:70BTU/h |
| AC220V:14.9W:74BTU/h | |
| Note: | |
| ● The measurement in Watts indicates the typical power consumption of the device with no external loading. | |
| ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. | |
Environmental |
|
| Operating Temperature | 0-40°C |
| Storage Temperature | -20-60°C |
| Humidity | 0 - 80% RH, Non-condensing |
Physical Properties |
|
| Housing | Metal + Plastic |
| Rail Type | Single Rail |
| Weight | 10.60 kg ( 23.35 lb ) |
| Dimensions (L x W x H) | 48.06 x 63.10 x 4.28 cm |
| (18.92 x 24.84 x 1.69 in.) | |
| Body Dimensions(L x W x H) | 44.92 x 58.4 x 4.28 cm |
| (17.69 x 22.99 x 1.69 in.) | |
| Note | Body Dimensions exclude I/O ports, handles, and mounting brackets. |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
| Warranty | 1 Year back to base |
Published on lastbestprice.com
| KVM TYPE | LCD KVM Switches |
|---|---|
| Number of Computers | 16 Ports |
| Computer Interface | USB, VGA |
| Console Connections | Local |
| LCD Size | 18.5" |
| Panel Resolution | 1366 x 768 @ 60 Hz |
| Max. Resolution | 1920 × 1200 @ 60 Hz |
| Multi-Platform Support | Linux, Mac, Sun, Windows |
| Warranty | 1-Year |
