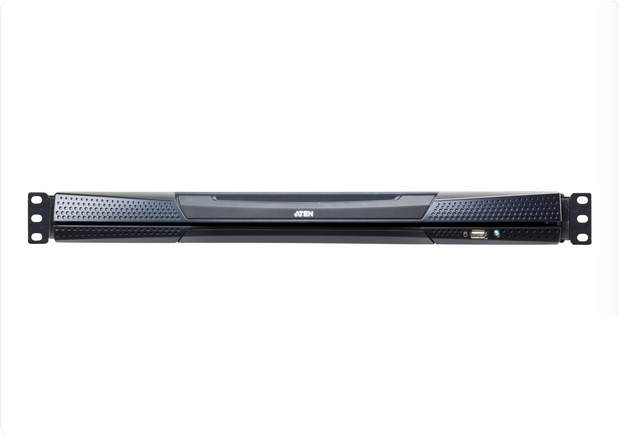

ATEN 19″ 16 Port Cat5 Dual Rail LCD Over IP KVM Switch – Local and Remote Shared Bus – KL1516AIN-AXA-AE

• Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
• Dual Rail housing is slightly less than 1U with top and bottom clearance for smooth operationmm in 1U of rack space
• Space-Saving RJ-45 connectors and Cat 5e / 6 cabling
• Superior Video Quality- Supports the video resolutions up to 1280×1024@75 Hz for up to 50 meters

Overview

Features

• Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
• Integrated KVM console with 17″ or 19″ LED-backlit LCD monitor in a Dual Rail housing
• A single console controls up to 16 computers
• Space-Saving RJ-45 connectors and Cat 5e / 6 cabling
• KVM adapters* designed with automatic conversion to allow flexible interface combinations (PS/2, USB, Sun and serial) to control all computer types
• OSD tree structure makes finding and managing computers easy
• Conveniently located station and port selectors with LED displays to quickly switch to target computers
• Dual Rail housing is slightly less than 1U with top and bottom clearance for smooth operationmm in U of rack space
• Extra console port – manage computers in the LCD KVM switch from an external console (monitor, USB or PS/2 keyboard, and USB or PS/2 mouse)
• Additional hot-pluggable USB mouse port on front panel that supports HID device for keyboard and mouse
• Dual Rail – LCD monitor slides independently of the keyboard / touchpad
• LCD module rotates up to 120 degrees for a more comfortable viewing angle
• Console lock – enables the console drawer to remain securely locked away in position when not in use
• Dedicated Hotkey Mode and OSD Invocation Keys reduce the number of keystrokes and provide quick access to these functions
• Daisy chain up to 31 additional KVM switches to control up to 512 computers
• Auto Scan mode enables continuous monitoring of user-selected computers
• Multiplatform support: PC, Mac, Sun and Serial
• Superior Video Quality- supports the video resolutions up to 1280×1024@75 Hz for up to 50 meters
• Configure port access rights for users on a port – by – port basis
• Three port selection methods: Manual (via front panel pushbuttons), Hotkey, and multi-language OSD (On Screen Display)
• Multiple User Accounts -supports up to 10 user and 1 administrator accounts
• Two-Level Password Security- supports one administrator and ten user profiles. Strong password protection prevents unauthorized accessing to the installation
• LCD power button helps save energy and prolong displays’ life
• Broadcast Mode sends commands from the console to all computers – allowing you to perform operations (such as software installation, upgrades, shutdowns, etc.), on them simultaneously
• Adapter ID
• Firmware Upgradeable
• Optional rack mount kits available including easy installation options
• Keyboard Language support: English(US); English(UK); French, German, German(Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, Traditional Chinese and Turkish
