Cisco Catalyst 9200L 24-port PoE+ 4x1G uplink Switch, Network Essentials – C9200L-24P-4G-E

C9200L-24P-4G-E

C9200L-24P-4G-E is the Catalyst 9200L 24 ports full PoE+ 4x1G uplink Switch, with Network Essentials software. Cisco® Catalyst® 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise – it is secure, always on, and IT simplified.

Overview

Simplicity with outstanding performance

Secure

Protect your network and your data with advanced security features like link encryption and segmentation.

Resilient

Boost uptime with field-replaceable unit (FRU) power supplies and fans, modular uplinks, cold patching, and Perpetual Power over Ethernet (PoE).

Uncomplicated

Simplify IT operations with Cisco DNA Center management, automated provisioning, and seamless software upgrades and patching.

Wireless-ready

Be ready for increased wireless bandwidth demands with greater stacking bandwidth, higher-capacity uplinks, and multigigabit ports.

Technical Specification : C9200L-24P-4G-E

Disclaimer : Technical specification may differ from the above specified, refer cisco.com for product specific complete details.

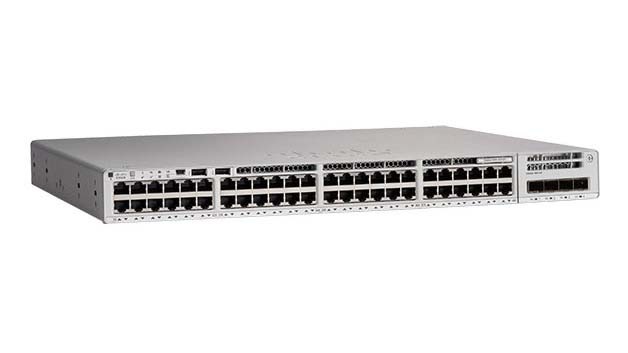

Cisco Catalyst 9200 Series Switches

Extend intent-based networking everywhere

Cisco^® Catalyst^® 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise – it is secure, always on, and IT simplified.

As foundational building blocks for the Cisco Digital Network Architecture, Catalyst 9200 Series switches help customers simplify complexity, optimize IT, and reduce operational costs by leveraging intelligence, automation and human expertise that no other vendor can deliver regardless of where you are in the intent-based networking journey.

Catalyst 9200 Series switches provide security features that protect the integrity of the hardware as well as the software and all data that flows through the switch. It provides resiliency that keeps your business up and running seamlessly. Combine that with open APIs of Cisco IOS XE and programmability of the UADP ASIC technology, Catalyst 9200 Series switches give you what you need now with investment protection on future innovations.

With full PoE+ capability, power and fan redundancy, stacking bandwidth up to 160 Gbps, modular uplinks, Layer 3 feature support, and cold patching, Catalyst 9200 Series switches are the industry’s unparalleled solution with differentiated resiliency and progressive architecture for cost-effective branch-office access. Catalyst 9200 Series switches also provide operational choice of Cisco DNA Center, or Meraki cloud monitoring.

Product overview

Product highlights

●      Full Power over Ethernet Plus (PoE+) capability for up to 48 ports for C9200 and Power over Ethernet Plus (PoE+) capability for up to 12 ports for C9200CX. Available in fan less variants for C9200CX.

●      Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks for C9200. C9200CX are powered by internal fixed power supply or optional power adapters, when not powered by upstream 802.3bt type4 90W PSE.

●      Flexible downlink options with data, PoE+ or mGig

●      Operational efficiency with optional backplane stacking, supporting stacking bandwidth up to 160 Gbps

●      UADP 2.0 Mini with integrated CPU offers customers optimized scale with better cost structure

●      Enhanced security with AES-128 MACsec encryption on C9200 and AES-256 MACsec encryption for C9200CX variants, policy-based segmentation, and trustworthy solutions for the whole C9200 family

●      Layer 3 capabilities, including OSPF, EIGRP, ISIS, RIP, and routed access

●      Advanced network monitoring using Full Flexible NetFlow

Cisco Software-Defined Access (SD-Access)

◦    Simplified operations and deployment with policy-based automation from edge to cloud managed with Cisco Identity Services Engine (ISE)

◦    Network assurance and improved resolution time through Cisco DNA Center

●      Plug and Play (PnP) enabled: A simple, secure, unified, and integrated offering to ease new branch or campus device rollouts or updates to an existing network

●      Cisco IOS XE: A Common Licensing based operating system for the enterprise Cisco Catalyst 9000 product family with support for model-driven programmability and streaming telemetry

●      ASIC with programmable pipeline and micro-engine capabilities, along with template-based, configurable allocation of Layer 2 and Layer 3 forwarding, Access Control Lists (ACLs), and Quality of Service (QoS) entries

●      Cloud monitoring for Catalyst option

Features and benefits Platform details

Switch models and configurations

Table 1.        Catalyst 9200 Series models and configurations

The Cisco Catalyst 9200 Series is made up of modular (C9200), fixed (C9200L) and compact (C9200CX) switch models.

Cisco Catalyst 9200 Series switches

Table 2. Cisco Catalyst 9200 Series Switch configurations
