HPE MSA 1060 SFF, 2x16Gb FC 2‑port Controller, 12×1.2TB HDD 4x16Gb SFP FC XCVR, 14TB Storage Array – P79250-B25

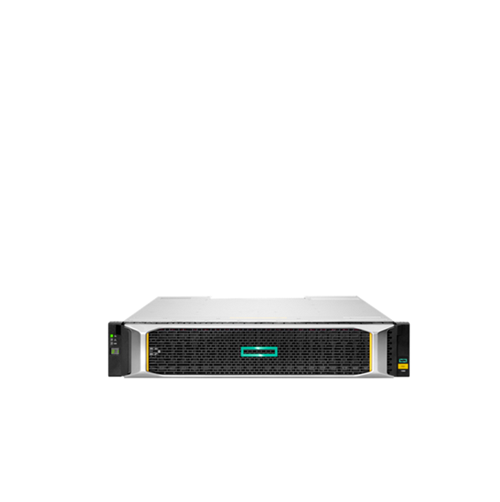

HPE MSA 1060 SFF

The HPE MSA 1060 Storage is capable of delivering over 154,000 IOPS for affordable application acceleration for small to medium-sized businesses and deployments.

---



Overview



Features



Accelerate Applications Affordably

• The HPE MSA 1060 Storage is capable of delivering over 154,000 IOPS for affordable application acceleration for small to medium-sized businesses and deployments.
• The MSA 1060 platform delivers allows users to define and deploy hybrid or flash configurations from day one and grow as needs change.



MSA’s ‘Set and Forget’ Data Services does not Require a Dedicated Storage Administrator to Manage

• The HPE MSA 1060 Storage is easy to install, easy to use, easy to maintain, even for an IT generalist. Administrators will find the MSA 1060’s new Storage Management Utility intuitive and easy to navigate.
• HPE MSA’s automated tiering engine dynamically responds to workload changes so you don’t have to, insuring the hottest data will be moved to the fastest media automatically and in real-time.



Leverage Data Protection Features to Keep your Business Running in the Event of a Disaster

• The HPE MSA 1060 Storage delivers virtualized snapshot technology making data protection and instant recovery a snap.
• Remote replication via Fibre Channel (FC) or iSCSI facilitates affordable disaster recovery solution.



Flexible, Modular Architecture that Facilitates Growth into the Future

• The HPE MSA 1060 Storage solution supports a combination of 3.5 inch (LFF) and 2.5 inch (SFF) 2060 expansion enclosures to a maximum of 3 (4 total including the 1060 array) enclosures.
• Start small and scale as needed with any combination of SSDs, Enterprise SAS HDDs or Midline SAS HDDs.



Published on lastbestprice.com

---



Short Tech Specification

HPE MSA 1060 SFF 2x16Gb FC 2-port Controller 12×1.2TB HDD 4x16Gb SFP FC XCVR 14TB Storage Array



Detailed Tech Specification



Drive description : Twelve 1.2 TB 10K SFF Hard Disk Drives included; Add up to twelve additional SFF HDD and/or SSD per base array

Capacity : Up to 475 TB with maximum capacity expansion

Storage expansion options : 24 drive bay SFF 2060 drive enclosure or 12 drive bay LFF 2060 drive enclosure (add up to 3)

Host interface : 16 Gb Fibre Channel, 10GBase-T iSCSI, or 12 Gb SAS; depending on model

Storage controller : 2x 16 Gb Fibre Channel 2-port Controller

SAN backup support : Yes

Storage mirroring support : No

Systems Insight Manager support : No

Compatible operating systems : Windows Server 2022; Windows Server 2019; Windows Server 2016; VMware vSphere 6.7; Red Hat Linux 8; SUSE SLES 15; See HPE SPOCK for more details

Clustering support : Yes

Form factor : 2U rack mount

Energy efficiency : Yes

Weight : 5 kg (11 lb)

Dimensions : 8.9 x 44.5 x 50.8 cm (3.5 x 17.5 x 20.0 in)

Host connectivity : 16 Gb Fibre Channel

Drive form factor : SFF

Included drives : 12x HPE MSA 1.2 TB SAS 12G Enterprise 10K SFF (2.5in) M2 3yr Wty HDD

SED Drives Supported : No

Included transceivers : HPE MSA 16 Gb Short Wave Fibre Channel SFP+ 4-pack Transceiver

Detailed product description : “Shop the HPE Smart Choice purchase program: Our most popular storage arrays, fully configured and ready to ship – now!”
HPE MSA 1060 2U small form factor storage array bundle with two 16 Gb Fibre Channel 2-port controllers, twelve 1.2 TB 10K SFF Hard Disk Drives, four 16 Gb Fibre Channel SFP+ transceivers, and two 580W redundant power supplies

Warranty : Three-year limited warranty, parts exchange next business day delivery. Disk enclosures, hard drives, and options for the HPE MSA 1060 carry their own warranty.
