QNAP 16-Bay NAS Marvell ARMADA 8040 ARMv8 Cortex-A72 8GB DDR4- TS-1635AX-8G | price in dubai uae africa saudi arabia

QNAP 16-Bay NAS Marvell ARMADA 8040 ARMv8 Cortex-A72 8GB DDR4 Long-DIMM, SATA 6Gb/s, 12x 3.5″/2.5″ HDD/SSD bays+4x 2.5″ SSD bays+2x M.2 2280 SATA slots, 2x 10GbE SFP+LAN, 2x GbE LAN, 2x PCIe Gen3 slots, hardware encryption, Container Station, Surveillance Station: free 8, max 40, up to 1x UX-800P/UX-500P expansion unit – TS-1635AX-8G



For The Immediate delivery contact the sales team. Usually, Ship in 2-3 days, backorder ship in 4-5 Weeks, images are for illustration purposes only.

6,069.00 AED excl. VAT

Discounted Price: 5,917.28 AED on Bank Transfer / Cash Payment (-151.73 AED)
Estimated delivery between Apr 2, 2024 - Apr 23, 2024
7 + 9 =
SKU: TS-1635AX-8G Category: Tags: ,

QNAP 16-Bay NAS Marvell ARMADA 8040 ARMv8 Cortex-A72 8GB DDR4 Long-DIMM, SATA 6Gb/s, 12x 3.5″/2.5″ HDD/SSD bays+4x 2.5″ SSD bays+2x M.2 2280 SATA slots, 2x 10GbE SFP+LAN, 2x GbE LAN, 2x PCIe Gen3 slots, hardware encryption, Container Station, Surveillance Station: free 8, max 40, up to 1x UX-800P/UX-500P expansion unit – TS-1635AX-8G





ts-1635ax

TS-1635AX

Versatile, high-performance 16-bay desktop NAS, powered by the Marvell ARMADA 8040 processor

Overview



Features

The TS-1635AX is powered by a Marvell® ARMADA® 8040 ARMv8 Cortex-A72 64-bit quad-core 1.6 GHz processor that provides tremendous computing power and is capable of running a range of applications to help businesses grow as their data increases. The TS-1635AX features twelve 3.5-inch drive bays, four 2.5-inch drive bays and two M.2 SATA slots for building a high-capacity and high-performance storage solution with optimal cost efficiency. The TS-1635AX is also equipped with two 10GbE SFP+ ports and two gigabit ports, providing high-speed connectivity and versatile networking possibilities. The TS-1635AX also allows hardware expansion with two PCI Express (PCIe) 3.0 slots, enabling more functionality by adding a QM2 M.2 SSD/10GbE card, QXP-W6-AX200/ QWA-AC2600 wireless network card and/or USB 3.2 Gen 2 (10Gbps) card. The TS-1635AX offers high-capacity storage potential, high processing power, and high versatility for expansion, which all contribute to a next-gen storage system at a lowered total cost of ownership (TCO).

marvell windows_2016

1. The two built-in 10GbE SFP+ ports empower mission-critical applications such as databases and large data transfer/storage.

2. Install SSDs with four 2.5-inch drive bays and two M.2 SATA (2280 form factor) slots for enabling Qtier to boost performances.

3. The two PCIe 3.0 slots (x2 and x1) can be used to install additional QM2 cards, network cards, and USB 3.2 Gen 2 (10Gbps) cards to expand NAS functionality.

4. Snapshots add an extra layer of protection to your disaster recovery plans, giving you the flexibility to create and revert snapshots locally and/or remotely.

5. The TS-1635AX supports containers (LXC and Docker®) and Linux command-line interface (CLI) virtual machines (VMs) for deploying diversified virtualization applications.

6. The TS-1635AX can be used with QNAP’s VJBOD technology to expand the capacity of other NAS. The capacity of the TS-1635AX can also be expanded by using QNAP expansion enclosures.

Top choice for well-rounded storage

The TS-1635AX combines a high-performance processor, high-speed network interfaces, and great storage potential, which are all major factors when selecting a NAS. The ARMADA 8040 processor supports hardware-accelerated encryption of volumes and LUNs, giving impressive overall performance and dependable data security for ease of mind.

Boost performance with SSDs and Qtier

The TS-1635AX comes with four dedicated 2.5-inch drives bays and two M.2 SATA (2280 form factor) slots for installing SSDs*. With SSDs, you can enable the QNAP-exclusive Qtier 2.0, which offers both automatic tiered storage and cache-like mechanisms for both volumes and iSCSI LUNs. This allows the TS-1635AX to be further accelerated to meet the performance requirements of demanding applications and scenarios such as virtualization and 10GbE transmission.

*SSDs and HDDs sold separately.

The QM2 expansion card redefines NAS functionality

QNAP’s QM2 is a series of PCIe expansion cards that features dual M.2 SSD slots and/or 10GbE connectivity*. This allows users to easily set up SSD caching or Qtier to optimize NAS performance. 10GbE-compatible QM2 cards can also future proof the TS-1635AX for use with 10GBASE-T networks. Equipped with a dedicated cooling module, the QM2 can maintain its high performance even when tasked with the highest workloads.

*SSDs and HDDs sold separately. Selected models with 10GbE connectivity are backward compatible with 5GbE/2.5GbE/1GbE/100MbE network.

Wireless adapter

Install a QXP-W6-AX200 Wi-Fi 6 wireless adapter to turn the TS-1635AX into a wireless NAS. Or make the TS-1635AX a wireless access point by installing the QWA-AC2600 wireless adapter and the WirelessAP Station app.

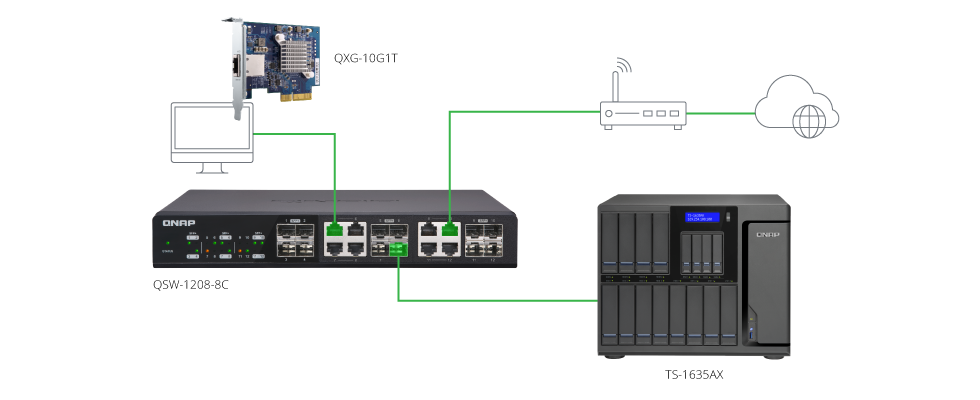

10GbE connectivity removes bottlenecks for higher performance

The TS-1635AX is 10GbE-ready with two 10GbE SFP+ ports for accelerating workflows without additional costs. For users without an existing 10GbE environment, the QNAP 10GbE/NBASE-T™ unmanaged switches are excellent choices for removing bottlenecks and to realize a streamlined data storage experience. For Windows/Linux PCs, the QXG-10G1T 10GBASE-T/NBASE-T PCIe expansion card can be installed to add 10GbE functionality for a complete high-speed LAN environment.

HBS 3

HBS 3

QuDedup technology deduplicates data at the source, helping to reduce the time and storage space needed for backup.

VJBOD Cloud

VJBOD Cloud

Seamlessly connect local storage with cloud object storage to easily backup local application data to the cloud.

HybridMount

HybridMount

Enabling local caching on NAS for low-latency access to the connected cloud services.

QuMagie

QuMagie

Integrated AI algorithm for auto photo organization and a powerful search tool for more intuitive and streamlined photo management.

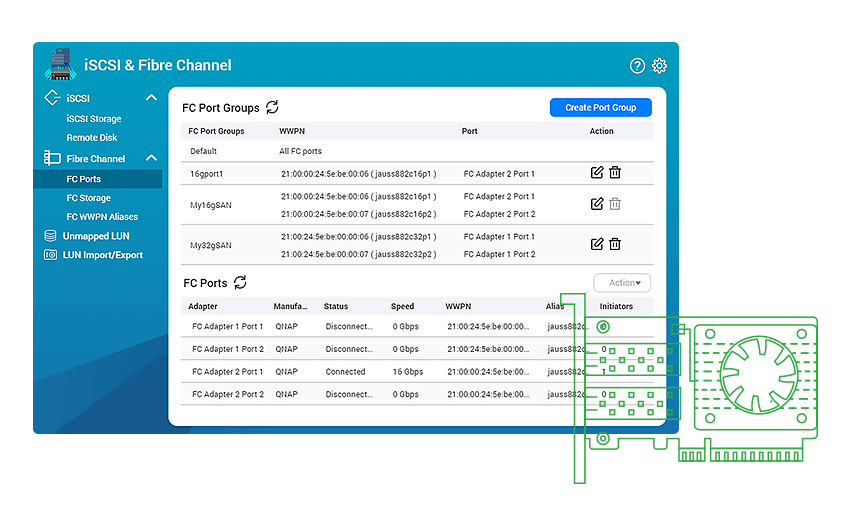

Build an affordable Fibre Channel SAN environment

Common Fibre Channel SAN (Storage Area Networks) devices are often expensive. Now you have more budge-friendly options to easily add your NAS to a SAN environment. Once a Marvell® Fibre Channel card (Marvell QLogic 2500 series 8Gb/s) has been installed in the TS-1635AX, you can set a Fibre Channel Target using the iSCSI & Fibre Channel app, and leverage the many benefits from QNAP NAS including snapshot protection, Qtier™ tiering storage, SSD cache acceleration and more. In addition, the LUN Masking and Port Binding features provide an additional layer of security for your data.

Convenient file exchange with cross-platform file sharing and Qsync

The TS-1635AX supports SMB/CIFS, NFS, and AFP protocols for file sharing across Windows, Mac, Linux/UNIX networks. Data can be centrally stored and protected by rigid security measures provided by the TS-1635AX. The Windows AD and LDAP services enable system administrators to configure user permissions by using an existing Windows AD server, LDAP server or built-in LDAP service. To sync data across devices, including mobile devices, simply install Qsync Central on the NAS and Qsync clients on other devices to enjoy a fast, private, secure and real-time file sync service.

Cross-platform file sharing

Qsync

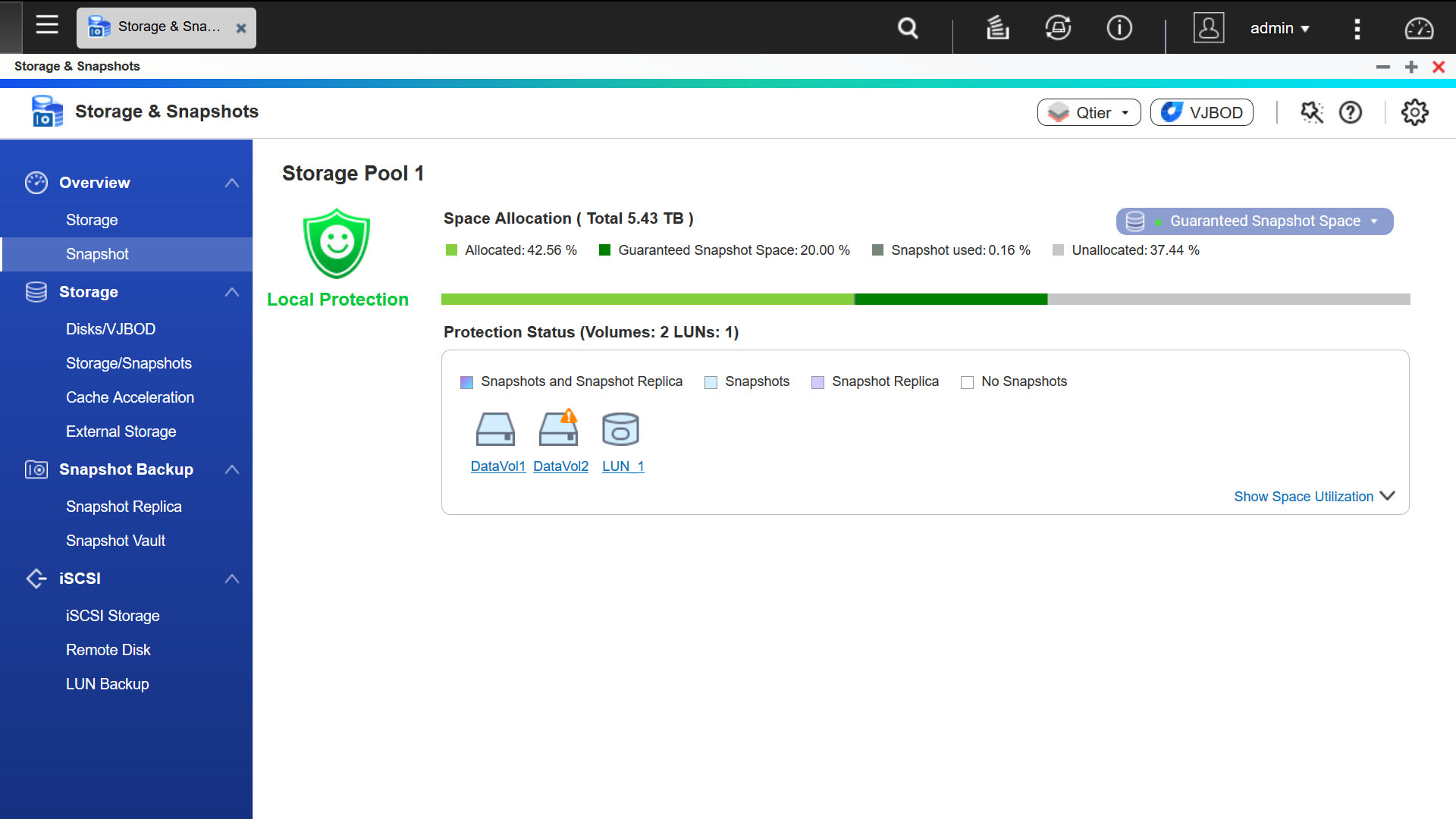

Secure your data with snapshots and Hybrid Backup Sync

A complete disaster recovery plan requires multiple layers of data protection and backups. The TS-1635AX can use snapshots to record the state of files and modifications to them at the block level, so you can quickly revert to previous versions should an accident (such as deletion or malware attack) occur. For added data security, the Hybrid Backup Sync app can help back up, restore and sync files to/from local external devices, remote NAS and public cloud services.

Snapshot

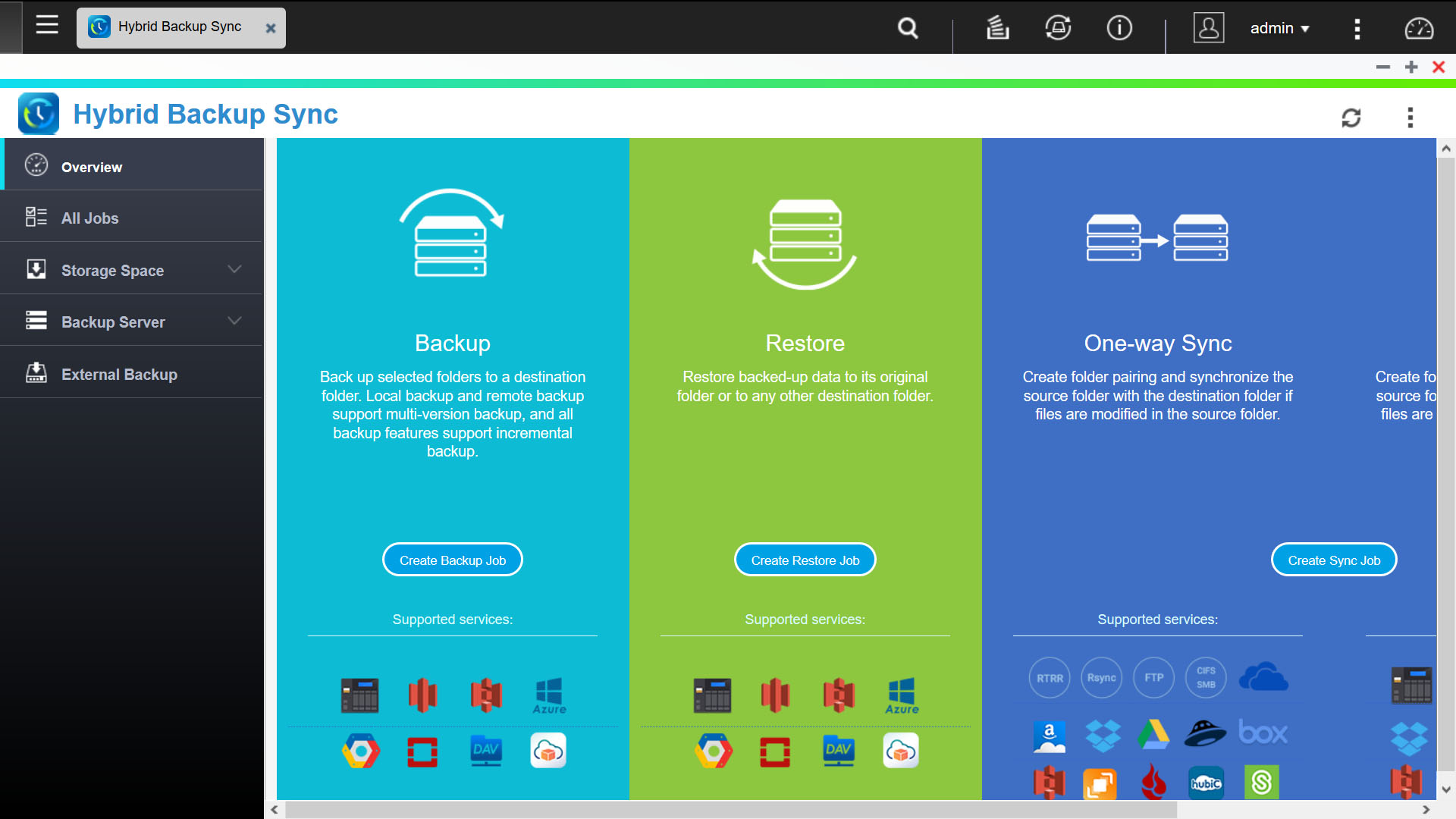

Hybrid Backup Sync

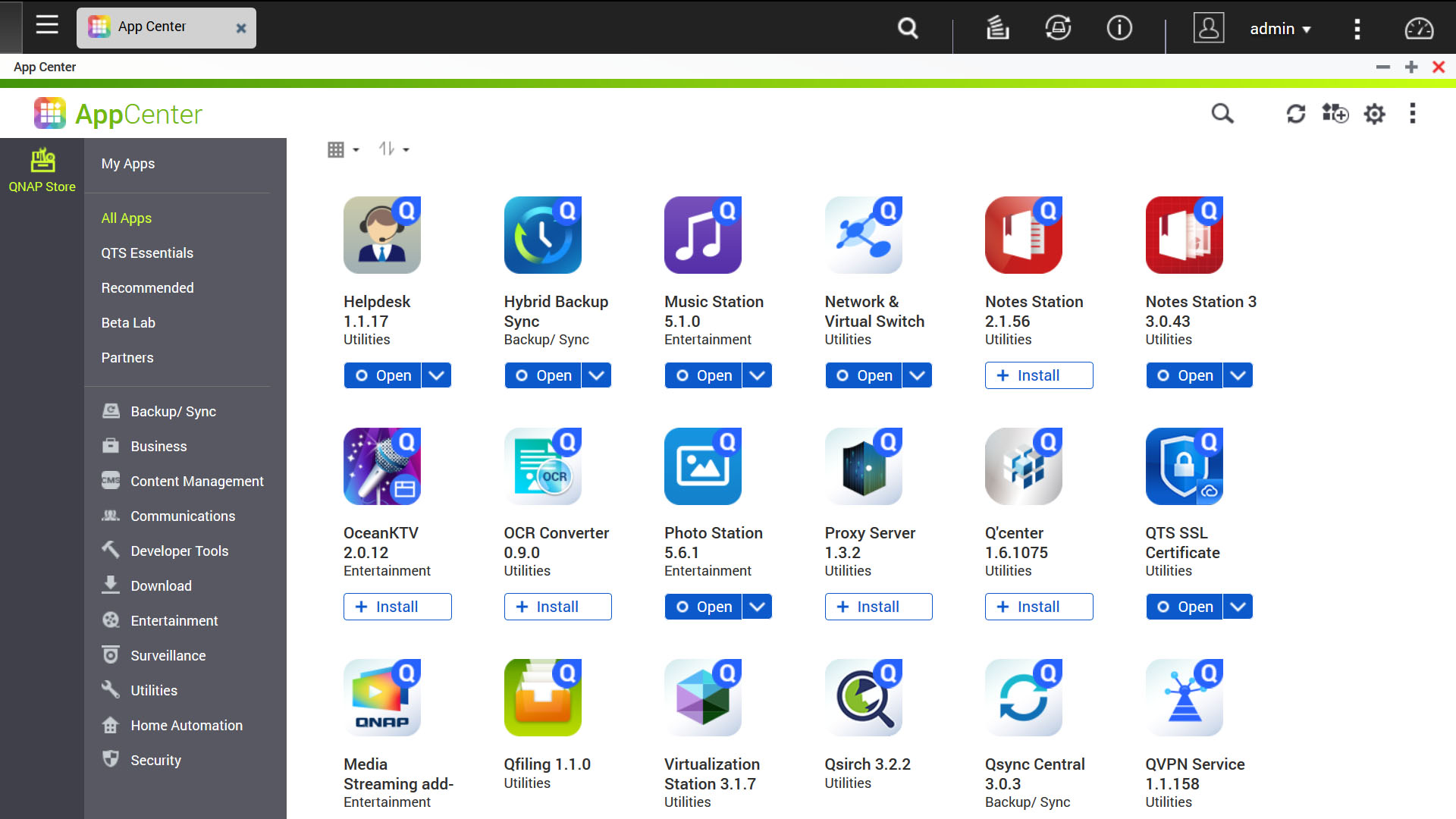

More apps, endless possibilities

The TS-1635AX is powered by QTS, an intelligent app-driven operating system that provides key functionality such as Qtier, RAID 50/60 support, Qboost, OCR Converter, and much more. The QTS App Center also provides a wide range of apps from QNAP and trusted third-parties to boost the functionality and possibilities of the TS-1635AX.

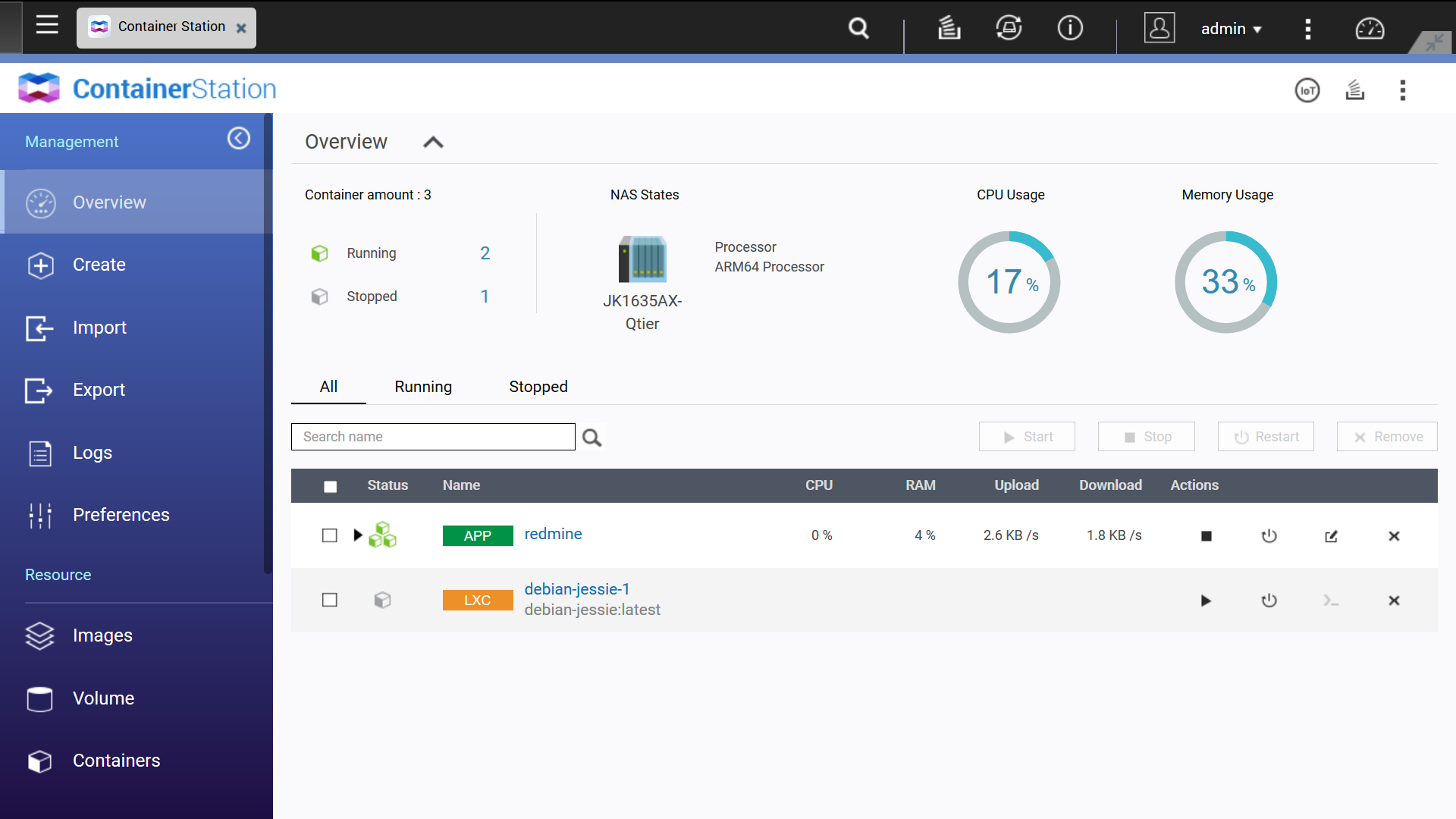

High-flexibility virtualization and virtual switches

The TS-1635AX supports versatile virtualization technologies such as containers (LXC and Docker®) and Linux command-line interface (CLI) virtual machines (VMs)*, so you can easily migrate existing applications to or deploy new solutions on the TS-1635AX. Virtual switches support several modes for connecting containers, VMs, NAS, and physical network interfaces for flexibly deploying business IT infrastructure while ensuring high security.

*The VM functionality will be available soon. The availability will be announced separately.

Protect your data with encryption and other security features

The Marvell ARMADA 8040 processor inside the TS-1635AX features hardware-accelerated encryption, and is capable of encrypting volumes and/or LUN with AES-256 encryption without sacrificing performance. Other security features include 2-step authentication, IP address filtering, virus and malware scanners, and much more. You can also set permissions for users and folders to block access from unauthorized users and apps.

Easy expansion for future storage needs

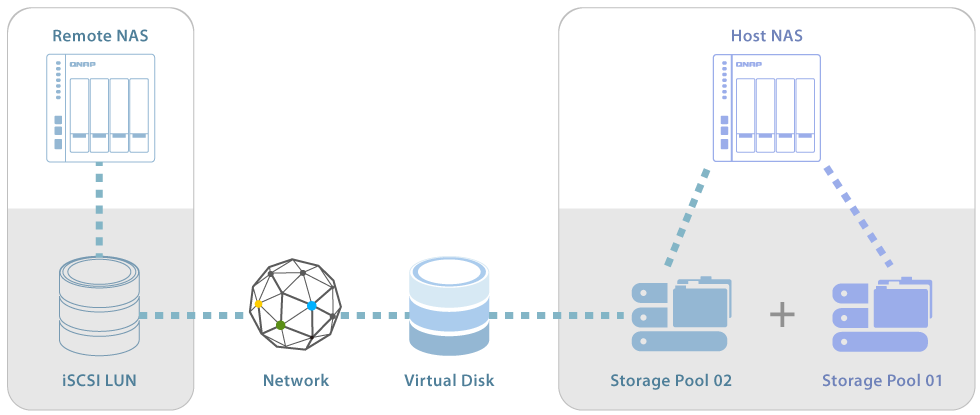

As your business grows, so does your storage requirements. By using QNAP’s Virtual JBOD (VJBOD) technology, the TS-1635AX’s unused space can be allocated to and utilized by another QNAP NAS. For expanding the TS-1635AX’s capacity, one UX-800P or UX-500P expansion enclosure can be used.

Virtual JBOD

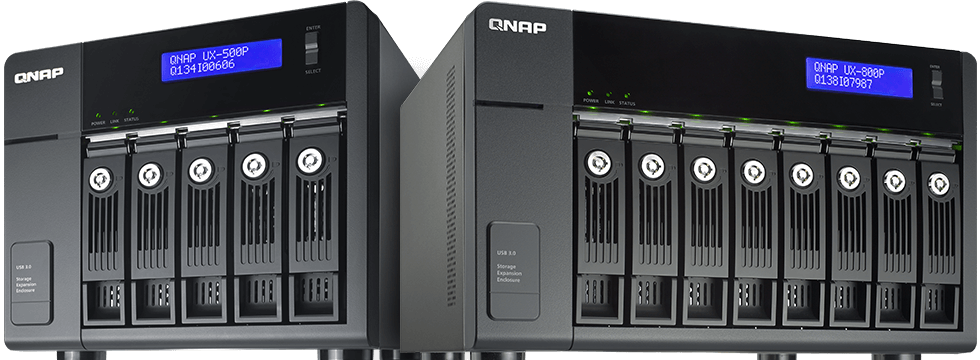

Expansion units

Extend hardware warranty up to 5 years

The TS-1635AX is backed by a 2-year warranty at no extra cost. If needed, you can purchase a warranty extension that increases your coverage up to 5 years.




Short Tech Specification



16-Bay NAS, Marvell ARMADA 8040 ARMv8 Cortex-A72 quad-core 1.6GHz, 8GB DDR4 Long-DIMM RAM (max 16GB), SATA 6Gb/s, 12x 3.5″/2.5″ HDD/SSD bays + 4x 2.5″ SSD bays + 2x M.2 2280 SATA slots, 2x 10GbE SFP+ LAN, 2x GbE LAN, 2x PCIe Gen3 slots, hardware encryption, Container Station, Surveillance Station: free 8, max 40, up to 1x UX-800P/UX-500P expansion unit



Detailed Tech Specification



Hardware Specs



TS-1635AX-8G

CPU Marvell ARMADA 8040 ARMv8 Cortex-A72 4-core 1.6 GHz processor
CPU Architecture 64-bit ARM
Floating Point Unit
Encryption Engine
System Memory 8 GB UDIMM DDR4 (1 x 8 GB)
Maximum Memory 16 GB (1 x 16 GB)
Memory Slot 1 x U-DIMM DDR4
Flash Memory 512 MB (Dual boot OS protection)
Drive Bay 12 x 3.5-inch + 4 x 2.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility 3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives

2.5-inch bays:
2.5-inch SATA solid state drives

Hot-swappable

The following are not hot-swappable: M.2 SSDs, SSD cache drives, SSDs using PCIe expansion slots.
M.2 Slot 2 x M.2 2280 SATA SSD slots

The M.2 SSD is not included as standard.
M.2 SSD operations can easily generate excessive heat. It is recommended to install a heatsink (from QNAP or a third-party provider) on the M.2 SSD.
SSD Cache Acceleration Support
Gigabit Ethernet Port (RJ45) 2

Expandable with an optional PCIe adapter
10 Gigabit Ethernet Port 2 x 10GbE SFP+
Wake on LAN (WOL)
Jumbo Frame
PCIe Slot 2
Slot 1: PCIe Gen 3 x2
Slot 2: PCIe Gen 3 x1
USB 3.2 Gen 1 port 3
USB 3.2 Gen 2 (10Gbps) Port Optional via a PCIe adapter
Audio Output – (The line out jack and speaker are no longer available on units manufactured on or after 2021/1/1)
Form Factor Tower
LED Indicators Power/Status, LAN, USB, HDD1-12, SSD 1-4, M.2 SSD 1-2
LCD Display/ Button
Buttons Power, Reset, USB Auto Copy
Dimensions (HxWxD) 303.84 × 369.89 × 319.8 mm
Weight (Net) 12.06 kg
Operating Temperature 0 – 40 °C (32°F – 104°F)
Storage Temperature -20 – 70°C (-4°F – 158°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit ATX 250W, Input: 100-240 Vac~, 50-60Hz, 3.5A
Power Consumption: HDD Sleep Mode 39.74 W
Power Consumption: Operating Mode, Typical 76.69 W

Tested fully populated with 1TB hard drives and 120GB solid-state drives.
Fan System fan: 3 x 92mm, 12VDC
CPU fan: 1 x 60mm, 12VDC
Other Interfaces Kensington security slot
System Warning Buzzer
Kensington Security Slot
Max. Number of Concurrent Connections (CIFS) – with Max. Memory 700
Processor

Marvell ARMADA

Memory

8GB
