QNAP 18-Bay SATA 6Gbps (12×3.5″+6×2.5″) 2U NAS Intel Xeon D-1622 32GB DDR4 4×2.5GbE RJ45 LAN 2x10GbE SFP+ SmartNIC, optional 25GbE & fibre channel FC support iSCSI RAID 3xPCIe expansion slots (1 slot is pre-installed with a 2-port 10GbE SFP+card) USB 3.2 Gen1 redundant power supply QuTS hero O.S. with ZFS deduplication compress snapshots optional fibre channel FC support – TS-h1886XU-RP-R2-D1622-32G
[ratingwidget type="page"]
For The Immediate delivery contact the sales team. Usually, Ship in 2-3 days, backorder ship in 4-5 Weeks, images are for illustration purposes only.
Original price was: AED 13,482.00.AED 12,394.00Current price is: AED 12,394.00. excl. VAT
Best Price: AED 12,084.15 on Bank Transfer / Cash Payment (-AED 309.85)
Estimated delivery between Nov 9, 2024 - Nov 30, 2024
QNAP 18-Bay SATA 6Gbps (12×3.5″+6×2.5″) 2U NAS Intel Xeon D-1622 32GB DDR4 4×2.5GbE RJ45 LAN 2x10GbE SFP+ SmartNIC, optional 25GbE & fibre channel FC support iSCSI RAID 3xPCIe expansion slots (1 slot is pre-installed with a 2-port 10GbE SFP+card) USB 3.2 Gen1 redundant power supply QuTS hero O.S. with ZFS deduplication compress snapshots optional fibre channel FC support – TS-h1886XU-RP-R2-D1622-32G
TS-h1886XU-RP R2
Cost-effective 10GbE-ready ZFS storage for virtualization and data-intensive enterprise applications
Overview
Features
The 2U rackmount TS-h1886XU-RP R2 has twelve 3.5-inch SATA 6Gb/s drive-bays, six 2.5-inch SATA 6Gb/s SSD slots, supports 10GbE and four 2.5GbE connectivity, and features an Intel® Xeon® D-1622 quad-core processor with up to 128 GB DDR4 Error Correcting Code (ECC) memory. Running on the ZFS-based QuTS hero operating system, the TS-h1886XU-RP R2 realizes server-grade performance with dependable reliability. Whether for mission-critical file servers, virtualization servers, collaborative video editing, or efficient data backup and recovery applications, the three-year warranted TS-h1886XU-RP R2 delivers a high-performance yet cost-effective NAS solution.
Petabyte-level storage capacity
Connect to multiple expansion units and achieve PB-level scalability.
Built-in 10GbE connectivity
Two 10GbE SFP+ SmartNIC ports with RDMA boost large file sharing and intensive data transfer.
Up to 128 GB DDR4 ECC memory
Up to 128 GB DDR4 ECC memory that can detect and correct single-bit memory errors, demonstrating high reliability for crucial applications.
Dual redundant power supply
Dual redundant power supplies for enhanced system reliability.
Optimal virtual machine experience
Supports storage for virtualization and can natively host independent virtual machines and containerized apps.
ZFS-based QuTS hero
Ensure data integrity and enhance data security with the ZFS-based QuTS hero operating system.
Intel® Xeon® D processor and up to 128 GB DDR4 ECC memory. Powerful and reliable
The TS-h1886XU-RP R2 features an Intel® Xeon® D-1622 quad-core processor, 32 GB DDR4 ECC memory (dual-channel module, four Long-DIMM slots, upgradable to 128 GB), and dual redundant power supplies to deliver a cost-efficient NAS solution with server-grade performance and the utmost reliability. By connecting multiple QNAP expansion enclosures, the storage capacity of the TS-h1886XU-RP R2 can be easily expanded to satisfy fast-growing data and budget flexibility.
Learn More: QNAP expansion enclosure

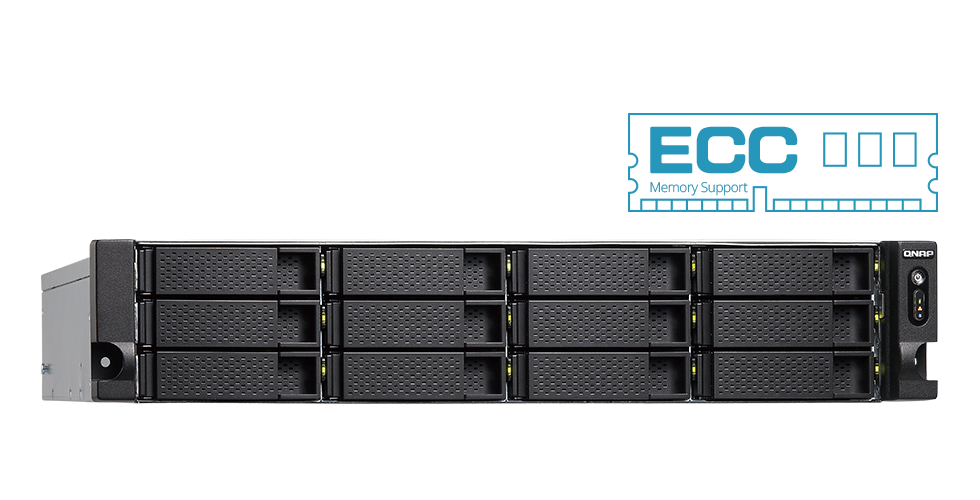

ECC memory forestalls data corruption to assure reliability
The TS-h1886XU-RP R2 uses ECC memory that can detect and correct single-bit memory errors as they occur to prevent downtime and data loss, which is essential for always-on, mission-critical, server-grade applications. The TS-h1886XU-RP R2 supports dual-channel DDR4 memory in four Long-DIMM slots. When using paired memory modules, the TS-h1886XU-RP R2 can leverage the power of dual-channel architecture to boost performance. You can also customize the memory configuration (supports up to 128 GB RAM) of the TS-h1886XU-RP R2 for greater performance to tackle dynamically-changing workloads, such as virtualization.
Dual 10GbE connectivity optimizes high-speed data transfer and supports RDMA/RoCE
The TS-h1886XU-RP R2 comes with a pre-installed dual-port 10GbE SFP+ Smart NIC (that uses the NVIDIA® Mellanox ConnectX®-4 Lx, or the same level SmartNIC) to improve bandwidth-demanding data center and virtualization applications and to support RDMA over Converged Ethernet (RoCE and RoCEv2), allowing data to bypass general network drivers, the socket layer, and directly enter ESXi server and storage memory buffer. RoCE technology can improve NAS performance while lowering CPU consumption of applications that use an Ethernet network, ideal for low-latency and high-speed large data transfer.

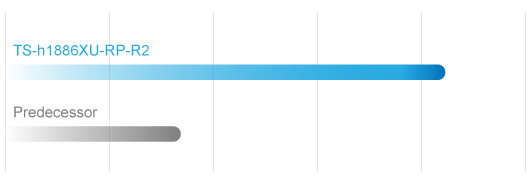

Four 2.5GbE ports to redefine upgraded connectivity
Compared with the previous model, the data transmission speed of TS-h1886XU-RP R2 is increased by 250% to handle multiple key business tasks.
HDD + SSD hybrid structure to optimize storage performance and utilization
The TS-h1886XU-RP R2 features outstanding hardware and expandable architecture, enabling optimum performance and flexibility to satisfy business needs in various applications.
Abundant I/O capability with PCIe expansion
The TS-h1886XU-RP R2 has two PCIe Gen3 x4 slots (one slot pre-installed with a dual-port 10GbE expansion card) and one PCIe Gen2 x4 slot that allow for installing various expansion cards to expand application potential.
Note: The 2U rackmount NAS model supports using low-profile graphics cards.
QM2 M.2 SSD/10GbE cards
Adds M.2 SSD caching or 10GbE (10GBASE-T) connectivity to the NAS for optimized performance and bandwidth.
Learn More: QM2
Build an affordable Fibre Channel SAN environment
Common Fibre Channel Storage Area Networks (SAN) devices are often costly. By installing QNAP dual-port ###TS-h1886XU-RP R2-fc### Fibre Channel expansion cards in the TS-h1886XU-RP R2, you have more budget-friendly options to add a NAS to a SAN environment. You can set a Fibre Channel Target using the iSCSI & Fibre Channel app. Moreover, the LUN Masking and Port Binding features provide an additional layer of data security.
Learn More: QNAP NAS supports Fibre Channel SAN, QNAP Fibre Channel cards
ZFS-based QuTS hero operating system enhances NAS performance and data integrity
QuTS hero combines the app-based QTS with the 128-bit ZFS file system to provide flexible storage management, comprehensive data protection, and optimized performance to tackle the complexity and performance demands of modern IT. From storage management, virtualization, to collaborative media workflows, QuTS hero streamlines your business-critical tasks.
Tiered storage configuration for a QuTS hero NAS
Basic requirements for setup are similar to QTS. We recommend you to follow these steps to acquire optimal storage efficiency and performance for QuTS hero.
Step 1: System Drive & Default Shared Folders
Step 2：Read/Write Cache
Step 3：Data Storage
Inline data deduplication, compression, and compaction drives Big Data storage efficiency
QuTS hero supports advanced block-based data reduction technologies (including inline data deduplication, compression, and compaction) to reduce file sizes, conserve storage capacity, and optimize performance. For example, if 20 virtual machines on a NAS are replicated using the same template, then storage space requirements for all 20 virtual machines can be reduced by up to 95%. Whether acting as primary or backup storage, the TS-h1886XU-RP R2 optimizes storage utilization to provide a reliable storage cornerstone in the Big Data era.
Real-time SnapSync ensures minimal RPO with real-time disaster recovery
Real-time SnapSync ensures that both the primary and secondary NAS maintain identical data. When data is written to the source, it is immediately written to the destination. If the primary NAS goes offline, IT staff can simply adjust the privilege settings of the secondary NAS to ensure continuous operations. SnapSync provides the strongest support for nonstop business operations and helps users to reduce the risk of data loss.
Note: SnapSync will be available from QuTS hero h4.5.2.
The TS-h1886XU-RP R2 also supports snapshots and remote backup to help organizations accomplish routine backup tasks cost-effectively and efficiently.
Comprehensive backup and disaster recovery solution
The TS-h1886XU-RP R2 supports various apps that cover all your backup needs. Practice safe IT habits by regularly backing up files and device content, allowing them to be easily restored when needed.
PC/Laptop backup
For Windows®, install NetBak Replicator to back up your PC to QNAP NAS. In macOS®, just set up the built-in Time Machine® to secure your data.
Learn More: NetBak Replicator
Remote backup for NAS
Hybrid Backup Sync makes it easy to back up data from a TS-h1886XU-RP R2 to another QNAP NAS or remote server to fulfill your 3-2-1 backup strategy.
Learn More: Hybrid Backup Sync
VM backup
Enjoy license-free VMware® and Hyper-V VM backup with source-side incremental backup, global deduplication, and recovery compression.
Learn More: Hyper Data Protector
SaaS backup
Safeguard enterprise cloud data by backing up/syncing files, emails, calendars, and contacts from Google™ Workspace and Microsoft® Office 365® to the NAS.
Learn More: Boxafe
Note: Minimum memory requirements are 2 GB available and 4 GB installed.
Cloud backup for NAS
Hybrid Backup Sync supports mainstream cloud storage for NAS data backup. For backup to object cloud storage, VJBOD Cloud is especially useful to reduce bandwidth usage and backup time.
Learn More: Hybrid Backup Sync, VJBOD Cloud
QuDedup technology
Hybrid Backup Sync eliminates redundant data at the source and then backs up the deduplicated data, helping to save time and storage costs while providing efficient multi-version backups.
Learn More: QuDedup technology
Multi-version snapshots mitigate ransomware threats
The TS-h1886XU-RP R2 supports block-based snapshots that record the state of the system at any time. It helps protect data, which can be restored back to a specific point of time, greatly helping in mitigating the threat of ransomware.
Reliable, high-performance storage for virtualization
The TS-h1886XU-RP R2 supports block-based iSCSI LUN as a reliable, high-performance, and affordable storage solution for mainstream virtualization environments. It supports VMware® VAAI and Microsoft® ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively.
All-in-one solution for hosting virtual machines and containers
By running multiple virtual machines and containers on the TS-h1886XU-RP R2, you can deploy multi-tenant environments and applications to increase management efficiency and save hardware costs. Coupled with the Network & Virtual Switch app that boosts interoperability between virtual machines, containers, QNAP NAS, and other physical devices on the network, you can flexibly allocate physical and virtual network resources to simplify network deployment.
Virtualization Station
Run multiple Windows®, Linux®, UNIX®, Android™, and QuTScloud virtual machines and access them via a web browser or Virtual Network Computing (VNC). Businesses can run virtualized server applications on a single NAS without needing additional physical servers.
Learn More: Virtualization Station, QuTScloud on hypervisors
Conainer Station
Experience Docker®, LXD, and Kata Containers lightweight virtualization technologies, download apps from the built-in Docker Hub Registry®, import/export containers, and create abundant microservices.
Learn More: Container Station
Linux Station
Run Linux® applications (including apps from the Software Center) directly on the NAS and remotely access the Linux® desktop from a web browser. The open-source Linux® platform is also ideal for Internet of Things development.
Learn More: Linux Station
Single Root I/O Virtualization (SR-IOV)
By installing an SR-IOV compatible PCIe SmartNIC in the TS-h1886XU-RP R2, you can allocate bandwidth resources from a physical network card directly to VMs, increasing network efficiency and reduced CPU overheads.
Note: SR-IOV is supported by specific QNAP NAS models and should work with SR-IOV compatible adapters. Click here to check compatibility.
QuTScloud virtual NAS
QuTScloud is a virtual appliance based on the QTS operating system. Enterprises can quickly launch QuTScloud on hypervisors including Linux® KVM, Microsoft® Hyper-V, and VMware ESXi™ to acquire advanced NAS features without requiring additional NAS hardware.
Learn More: QuTScloud for private cloud
Comprehensive security and privilege settings
The TS-h1886XU-RP R2 is loaded with flexible privilege settings and security measures. Besides IP blocking, 2-step verification, HTTPS connection, there are more apps that help ensure optimal NAS protection against threats like malware and hackers.
myQNAPcloud secures remote access
myQNAPcloud allows convenient connection to the TS-h1886XU-RP R2 through the Internet without any complex DDNS settings. To ensure your remote access service is secure, myQNAPcloud strengthens keys on SSL Certificates to 2048-bits.
Learn More: myQNAPcloud service
Simplified privilege settings
The TS-h1886XU-RP R2 supports comprehensive access right settings for shared folders, Azure Active Directory Domain Services (Azure AD DS), LDAP, and Windows ACL to help IT staff efficiently manage user accounts and access rights for multiple NAS systems.
QuFirewall protection
Supports IPv6, firewall access lists, and GeoIP filtering to restrict access based on geographical locations for higher NAS network security.
Learn More: QuFirewall
Superior security with QVPN
A virtual private network (VPN) allows secure access to network resources and services across public networks. QVPN supports creating a VPN client, using the TS-h1886XU-RP R2 as a VPN server, and WireGuard® VPN service with an easy-to-use interface for setting up a secure connection.
Learn More: QVPN
QuWAN SD-WAN
To facilitate digital transformation, multi-site expansion and remote working, QuWAN SD-WAN helps automatically mesh multi-site VPN. It features IPsec encryption and cloud-centric management, allowing secure multi-site network including QNAP NAS and VMware ESXi platforms.
Learn More: QuWAN
Security Counselor
A security portal for the TS-h1886XU-RP R2 to check for weaknesses and offer recommendations for enhancing NAS security. It also integrates anti-virus and anti-malware scanning software.
Learn More: Security Counselor
Malware Remover
Regularly scan your TS-h1886XU-RP R2 using the latest malware definitions. If infected files are detected, they will be immediately removed to ensure NAS data security.
Learn More: Malware Remover
TeamViewer remote access
TeamViewer app enables remote management and connectivity to multiple NAS devices from Windows® PCs with an unparalleled level of safety, while increasing IT efficiency and end user productivity.
Learn More: TeamViewer
Smart surveillance solution for 24/7 security
QVR Elite is QNAP’s subscription-based smart surveillance solution, allowing you to easily build a surveillance system with lower TCO and higher scalability. Recordings are saved as MP4 files, allowing playback on nearly every device. QVR Elite also integrates QNAP AI-based solutions to build smart facial recognition for retail and door access systems with QNAP NAS. You can arrange a dedicated, independent storage space for surveillance data on the TS-h1886XU-RP R2 and enjoy simplified camera management, storage space allocation, camera live viewing and playback.
Flexible and economical storage expansion
QNAP provides easy ways to expand your storage capacity. Here are several ways to expand your TS-h1886XU-RP R2 storage as needed to accommodate data and business growth.
Attach QNAP expansion enclosures
Connect expansion enclosures to the TS-h1886XU-RP R2, and manage NAS storage expansion with the user-friendly Storage & Snapshots Manager app.
Mount cloud storage or remote file servers
Mount cloud storage or remote file servers to expand the capacity of the TS-h1886XU-RP R2 while also centrally managing files on the NAS, cloud storage, and remote devices.
Migrate to a new NAS
Install your NAS hard drives into a larger QNAP NAS and retain all your existing data and configurations.
Upgrade RAID capacity
Hot-swap lower-capacity drives with larger-capacity drives to expand your NAS capacity so it can grow with your business.
More productivity-boosting applications
The TS-h1886XU-RP R2 provides an App Center that includes feature-rich apps to expand your NAS potential!
QuObjects
Run a high-performance S3 compatible development environment on your TS-h1886XU-RP R2 to simplify service development workflows from testing to production. You can also move cold data from the cloud to an on-premises QuObjects to save cloud storage costs.
Notification Center
Consolidates all system events, alerts, and notifications for smooth and easy NAS management, keeping you always informed of your NAS status.
Linux Station
Run Linux® applications (including apps from the Linux® Software Center) directly on the NAS and remotely access the Linux® desktop from a web browser. It also makes the TS-h1886XU-RP R2 an ideal gateway for IoT solutions.
Proxy Server
By using a high-capacity TS-h1886XU-RP R2 as a proxy server, online resources can be efficiently accessed with greater cost-savings and productivity, while network security is also enhanced at the same time.
Flexibly switch to QTS operating system
The TS-h1886XU-RP R2 also supports QTS – QNAP’s standard NAS operating system – that provides greater everyday performance, efficient memory utilization, and the advantage of Qtier auto-tiering. You can also migrate drives from your current QTS-based NAS to the TS-h1886XU-RP R2.
QTS
Suited for performance-demanding tasks, cross-teams file sync, and HDD-SSD hybrid storage applications
QuTS hero.
Featuring highly reliable data protection and data reduction, and optimized for SSD-based applications
Learn More: How to migrate data & folder permissions between QTS and QuTS hero with HBS3?
QTS and QuTS hero use different file systems. You must remove all the drives from the TS-h1886XU-RP R2 before switching from QuTS hero to QTS.
Short Tech Specification
| 18-Bay SATA 6Gbps (12 x 3.5″ + 6 x 2.5″) 2U NAS, Intel Xeon D-1622 4 cores / 8 threads up to 3.20 GHz, 32GB ECC DDR4 RAM (4 x DIMMs, max 128GB total), 4 x 2.5GbE RJ45 LAN, 2 x 10GbE SFP+ SmartNIC, optional 25GbE & fibre channel FC support, iSCSI, RAID, 3 x PCIe expansion slots (1 slot is pre-installed with a 2-port 10GbE SFP+ card), USB 3.2 Gen1, redundant power supply, QuTS hero O.S. with ZFS, deduplication, compress, snapshots, optional fibre channel FC support |
Detailed Tech Specification
Hardware Specs
TS-h1886XU-RP-R2-D1622-32G
| CPU | Intel® Xeon® D-1622 4-core processor, burst up to 3.2 GHz |
| CPU Architecture | 64-bit x86 |
| Floating Point Unit | ✓ |
| Encryption Engine | ✓ (AES-NI) |
| System Memory | 32 GB UDIMM DDR4 ECC (2 x 16GB) |
| Maximum Memory | 128 GB (4 x 32 GB) |
| Memory Slot | 4 x UDIMM DDR4 |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | Front: 12 x 3.5-inch SATA 6Gb/s, 3Gb/s Rear: 6 x 2.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives 2.5-inch bays: |
| Hot-swappable | ✓ |
| SSD Cache Acceleration Support | ✓ |
| SR-IOV | ✓ |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 4 (2.5G/1G/100M) |
| 10 Gigabit Ethernet Port | 2 x 10GbE SFP+ SmartNIC port
Pre-installed with a 10GbE PCIe adapter
|
| Wake on LAN (WOL) | ✓ |
| Jumbo Frame | ✓ |
| PCIe Slot | 3 Slot 1: PCIe Gen 2 x4 (x8 Slot) Slot 2: PCIe Gen 3 x4 Slot 3: PCIe Gen 3 x8 or x4 (x8 Slot) *Slot 3 is preinstalled with a 10GbE network adapter.
**Slot 3 provides the width of PCIe Gen 3 x8 when Slot 2 is not in use, and provides the width of PCIe Gen 3 x4 when Slot 2 is in use. |
| USB 3.2 Gen 1 port | 2 |
| Form Factor | Rackmount |
| LED Indicators | HDD, SSD, Status, LAN, storage expansion port status |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 88.3 × 482 × 549.7 mm |
| Weight (Net) | 12.73 kg |
| Weight (Gross) | 18.69 kg |
| Operating Temperature | 0 – 40 °C (32°F – 104°F) |
| Storage Temperature | -20 – 70°C (-4°F – 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 550W(x2), 100-240V |
| Power Consumption: Operating Mode, Typical | 117.92 W
Tested with drives fully populated.
|
| Fan | System fan: 3 x 60mm, 12VDC |
| System Warning | Buzzer |
| Max. Number of Concurrent Connections (CIFS) – with Max. Memory | 10000 |
| Processor | Intel Xeon |
|---|---|
| Memory | 32GB |
