Synology FlashStation FS3017 24-Bay – FS3017

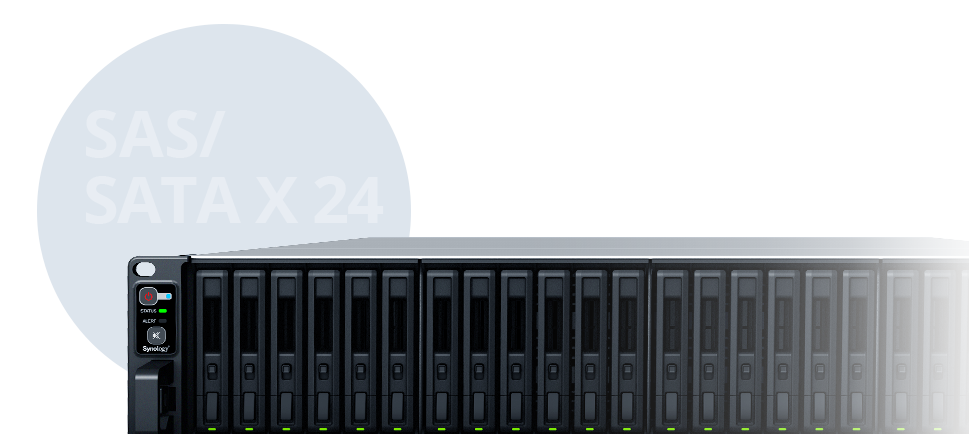

FlashStation FS3017
Elevate your business to the next level
Overview
Astonishing performance, no more bottlenecks
Enterprises are now challenged to handle I/O-intensive and latency sensitive applications, whether it’s managing large raw files, virtual machines, or databases, FS3017 is an easy to maintain, affordable, yet powerful all-flash NAS solution for businesses.
CPU
Dual Intel® Xeon® 6-core with NUMA
Memory
Up to 512 GB DDR4 ECC RDIMM
Network
iSCSI Extensions for RDMA via optional NICs1
High Performance
Over 200,000 4K random write IOPS
Who is using Synology?
Watch how our solutions empower businesses around the world with limitless possibilities.
The storage array has been proven to be more than capable of going toe-to-toe with what would be classed as an enterprise-class all flash array for a fraction of the cost.
Mark Pearce, IT Infrastructure Manager, Mantra Group
The FS3017 is fast and reliable and allows our employees to work productively throughout the day.
Erich Stadler – CEO, bardini+keller ag
5 year warranty
Synology’s 5-year limited warranty provides hardware replacement and technical support via email and telephone services, maximizing your enterprises’ return on investment.
Synology Replacement Service (SRS)
SRS provides free advance replacement units as early as the next business day in selected regions, maximizing the service uptime for your mission-critical storage and ensuring your business continuity2. Know more about SRS.
Cost-effective flexibility
Due to vendor lock-in, all-flash storage is notoriously expensive, but FS3017 accepts both high-end SAS SSD and the more mainstream SATA SSD. Raw capacity of FS3017 reaches 90TB3.
RAID F1
Due to the peculiarities of SSD and RAID technology, a common challenge lies in how to prevent all of the drives from failing at the same time because of the evenly distributed workload. RAID F1 alleviates this problem with a specially designed algorithm to unevenly distribute workload to drives, enhancing the resilience of the storage pool and ensuring your data remains safe.
See the white paper for more technical details regarding RAID F1
Compared with traditional RAID, RAID F1 distributes uneven workload to SSDs to prevent all drives from wearing out simultaneously.
Future-proof networking
FS3017 is equipped with two 10GBase-T ports. If you need more horsepower, FS3017 also has two PCIe slots available for adding more Ethernet controllers. Choose between 10GbE, 25GbE, and 40GbE to unlock FS3017’s full potential. In addition, you can leverage iSCSI over RDMA technology to enhance iSCSI performance by up to 80% with an optional purchase of supported NIC on FS3017.
Data Protection & Disaster Recovery
The built-in Snapshot Replication application reproduces 65,000 backup copies to offsite servers, bringing near-instantaneous data protection and ensuring data in shared folders or virtual machines in iSCSI LUNs remain available in the event of disaster.
Fully certified storage virtualization solutions
Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component.
Powered by Synology DSM

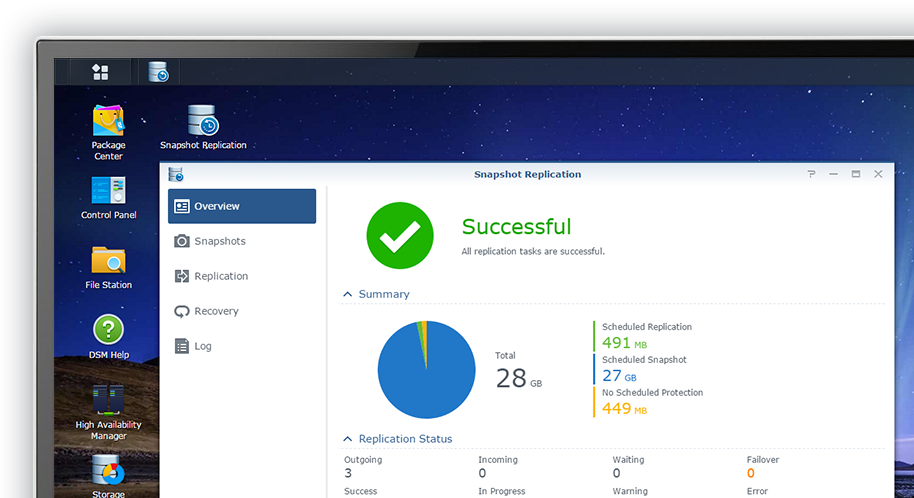

Snapshot Replication
Provides schedulable and instantaneous data protection for shared folders and virtual machines on iSCSI LUNs in the event of disaster.
Synology High Availability
Ensures seamless service transition between clustered servers in the event of a server failure.
Hyper Backup
Store multiple backup versions with block-level incremental data backup and cross-version deduplication.
CMS
Manage multiple Synology NAS servers simultaneously on a centralized interface to increase business efficiency.
Cloud Station Suite
Synchronize cross-platform data automatically with file version control on all your devices.
MailPlus
Secure, reliable, and private mail server solution with an intuitive and modern mail client.
- (1) Power button and indicator
- (2) Beep off button
- (3) Drive status indicator
- (4) Drive tray
- (5) PSU fan
- (6) Power port
- (7) PSU indicator
- (8) Console port
- (9) USB 3.0 port
- (10) 10GbE RJ-45 port
- (11) PCIe 3.0 slot
- (12) Reset button
Detailed Tech Specification
Hardware Specifications |
|
CPU |
|
| CPU Model | Intel Xeon E5-2620 v3 x 2 |
| CPU Architecture | 64-bit |
| CPU Frequency | 6-Core 2.4 GHz |
| Hardware Encryption Engine (AES-NI) |
✓ |
Memory |
|
| System Memory | 64 GB DDR4 ECC RDIMM |
| Memory Module Pre-installed | 64 GB (16 GB x 4) |
| Total Memory Slots | 16 |
| Memory Expandable up to | 512GB (32 GB x 16) |
| Notes | Synology reserves the right to replace memory modules with the same or higher frequency based on supplier’s product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance. |
Storage |
|
| Drive Bays | 24 |
| Maximum Drive Bays with Expansion Unit | 48 (RX1217sas) / 72 (RX2417sas) |
| Compatible Drive Type* (See all supported drives) |
|
| Maximum Internal Raw Capacity | 96 TB (4 TB drive x 24) (Capacity may vary by RAID types) |
| Maximum Raw Capacity with Expansion Units | 288 TB (96 TB + 4 TB drive x 48) (Capacity may vary by RAID types) |
| Maximum Single Volume Size |
|
| Hot Swappable Drive |
✓ |
| Notes |
|
External Ports |
|
| RJ-45 10GbE LAN Port | 2 (with Link Aggregation / Failover support) |
| USB 3.0 Port | 2 |
PCIe |
|
| PCIe Expansion |
|
| Add-in-card support |
|
File System |
|
| Internal Drives |
|
| External Drives |
|
| Notes | exFAT Access is purchased separately in Package Center. |
Appearance |
|
| Size (Height x Width x Depth) | 88 mm x 482 mm x 724 mm |
| Weight | 17.13 kg |
| Rack Installation Support | 4-post 19″ rack (Synology Rail Kit – RKS1317) |
| Notes | The rail kit is sold separatelty. |
| Others | |
| System Fan | 80 mm x 80 mm x 4 pcs |
| Fan Speed Mode |
|
| Easy Replacement System Fan |
✓ |
| Power Recovery |
✓ |
| Noise Level* | 55.4 dB(A) |
| Scheduled Power On/Off |
✓ |
| Power Supply Unit / Adapter | 2 X 800W |
| AC Input Power Voltage | 100V to 240V AC |
| Power Frequency | 47/63 Hz, Single Phase |
| Power Consumption* | 321 W (Access) 156 W (HDD Hibernation) |
| British Thermal Unit | 1095.29 BTU/hr (Access) 532.29 BTU/hr (HDD Hibernation) |
| Redundant Power Supply (for xs+ and RP model) |
✓ |
Environment Temperature |
|
| Operating Temperature | 5°C to 35°C (40°F to 95°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) |
| Relative Humidity | 5% to 95% RH |
Certification |
|
Warranty |
5 Years |
Notes |
|
DSM Specifications ( See more ) |
|
Storage Management |
|
| Maximum Internal Volume Number | 1024 |
| Maximum iSCSI Target Number | 256 |
| Maximum iSCSI LUN | 512 |
| iSCSI LUN Clone/Snapshot, Windows ODX |
✓ |
| SSD Read/Write Cache (White Paper) |
✓ |
| SSD TRIM |
✓ |
| RAID Group |
✓ |
| Supported RAID Type |
|
| RAID Migration |
|
| Volume Expansion with Larger HDDs |
|
| Volume Expansion by Adding a HDD |
|
| Global Hot Spare Supported RAID Type |
|
File Services |
|
| File Protocol | CIFS/AFP/NFS/FTP/WebDAV |
| Maximum Concurrent CIFS/AFP/FTP Connections | 13000 |
| Maximum Concurrent CIFS/AFP/FTP Connections (with RAM expansion) | 13000 |
| Windows Access Control List (ACL) Integration |
✓ |
| NFS Kerberos Authentication |
✓ |
Account & Shared Folder |
|
| Maximum Local User Accounts | 16000 |
| Maximum Local Groups | 512 |
| Maximum Shared Folder | 512 |
| Maximum Shared Folder Sync Tasks | 32 |
High Availability Manager |
✓ |
Log Center |
✓ |
| Syslog Events per Second | 3000 |
Virtualization |
|
| VMware vSphere 6 with VAAI |
✓ |
| Windows Server 2012 |
✓ |
| Windows Server 2012 R2 |
✓ |
| Windows Server 2016 |
✓ |
| Citrix Ready |
✓ |
| OpenStack |
✓ |
Add-on Packages (learn more about the complete add-on package list) |
|
Antivirus by McAfee (Trial) |
✓ |
Central Management System |
✓ |
Chat |
✓ |
| Maximum Users | 6000 |
| Notes |
|
Cloud Station Server |
✓ |
| Maximum Number of Concurrently Connected Devices | 16000 |
| Maximum Number of Concurrently Connected Devices (with RAM expansion) | 30000 |
| Maximum Number of Hosted Files (btrfs) | 5,000,000 |
| Maximum Number of Hosted Files (ext4) | 5,000,000 |
| Notes |
|
exFAT Access (optional) |
✓ |
MailPlus / MailPlus Server |
✓ |
| Free Email Accounts | 5 (Licenses required for additional accounts) |
| Maximum number of concurrent users | Up to 1800 |
| Maximum Server Performance | 4,773,000 emails per day, approx. 145GB |
| Notes |
|
| Auto Color & Rotate |
– |
| Moments Select |
– |
Snapshot Replication |
✓ |
| Maximum Snapshots per Shared Folder | 1024 |
| Maximum of system snapshots | 65536 |
Surveillance Station |
✓ |
| Maximum IP cam (Licenses required) | 100 (including 2 Free License) (See All Supported IP Cameras) |
| Total FPS (H.264)* | 3000 FPS @ 720p (1280×720) 3000 FPS @ 1080p (1920×1080) 1500 FPS @ 3M (2048×1536) 1000 FPS @ 5M (2591×1944) |
| Total FPS (MJPEG)* | 2000 FPS @ 720p (1280×720) 750 FPS @ 1080p (1920×1080) 540 FPS @ 3M (2048×1536) 425 FPS @ 5M (2591×1944) |
| Notes | Surveillance Station throughput is tested with Axis network camera, using continuous recording with live view from Surveillance Station and motion detection by camera. Live view and recording are sharing the same stream from the camera. |
Synology Drive |
✓ |
| Recommended Number of Hosted Files | 5,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above) |
| Recommended Number of Concurrent Connections for PC Clients | 2,000 (the number of connections that can be maintained when the recommended number of hosted files was reached) |
| Notes |
|
Synology Office |
✓ |
| Maximum Users | 3400 |
| Notes |
|
Virtual Machine Manager |
✓ |
| Recommended Virtual Machine Instances | 24 (Learn more) |
| Recommended Virtual DSM Number(Licenses required) | 24 (including 1 Free License) |
| Notes |
|
VPN Server |
✓ |
| Maximum Connections | 40 |
Environment & Packaging |
|
Environment |
RoHS Compliant |
Packaging Content |
|
Optional Accessories |
|
| Notes | FS3017 supports up to 2 Synology Expansion Unit RX1217sas / RX2417sas when the optional FS3017 Expansion Card (FXC17) is installed. |
