QNAP 2-Bay NAS Intel Celeron J4125 4GB DDR4, SATA 6Gb/s, 2×2.5GbE, 1xPCIe Gen2 x4 slot for 10GbE/5GbE/1GbE or QM2 M.2 SATA/NVMe SSD adapter, AES-NI encryption, hardware transcoding, 4K HDMI 2.0 60Hz, 5xUSB ports, Virtualization, Surveillance with QVR Pro & Surveillance Station, expand with QNAP TL & TR expansion units – TS-253D-4G
[ratingwidget type="page"]
For The Immediate delivery contact the sales team. Usually, Ship in 2-3 days, backorder ship in 4-5 Weeks, images are for illustration purposes only.
Original price was: AED 2,096.00.AED 1,927.00Current price is: AED 1,927.00. excl. VAT
Best Price: AED 1,878.83 on Bank Transfer / Cash Payment (-AED 48.18)
Out of stock product
QNAP 2-Bay NAS Intel Celeron J4125 4GB DDR4, SATA 6Gb/s, 2×2.5GbE, 1xPCIe Gen2 x4 slot for 10GbE/5GbE/1GbE or QM2 M.2 SATA/NVMe SSD adapter, AES-NI encryption, hardware transcoding, 4K HDMI 2.0 60Hz, 5xUSB ports, Virtualization, Surveillance with QVR Pro & Surveillance Station, expand with QNAP TL & TR expansion units – TS-253D-4G
TS-253D
Quad-core 2.5GbE NAS for professionals, supporting PCIe expansion for 10 Gbps or M.2 SSDs to accelerate applications
Overview
Features
The new-gen Wi-Fi 6 (802.11ax) trend has driven higher bandwidth demands for wired and wireless network connections. By integrating Intel® Celeron® J4125 quad-core 2.0 GHz processor and 2.5GbE connectivity, the TS-253D not only provides modern businesses an excellent NAS solution to upgrade to 2.5GbE environments for productive daily backup/restore tasks, but also provides gamers with ample storage for their vast game collections. Up to 5 Gbps transfer speeds can be made by setting port trunking with the two built-in 2.5GbE ports. The TS-253D also supports PCIe expansion, multi-cloud backup, cloud storage gateways, 4K HDMI output and real-time transcoding, alongside expandable storage capacity and feature-rich apps to perform as a cost-efficient, reliable 2.5GbE NAS.
1. Dual 2.5GbE ports accelerates file sharing across teams and devices or gaming storage applications.
2. PCIe expansion allows for a Multi-Gig 10GbE or 5GbE network card, or a QM2 card to add M.2 NVMe or SATA SSDs for caching.
3. 4K media playback and real-time transcoding; directly watch videos on an HDTV via HDMI 2.0 (4K @60Hz) output.

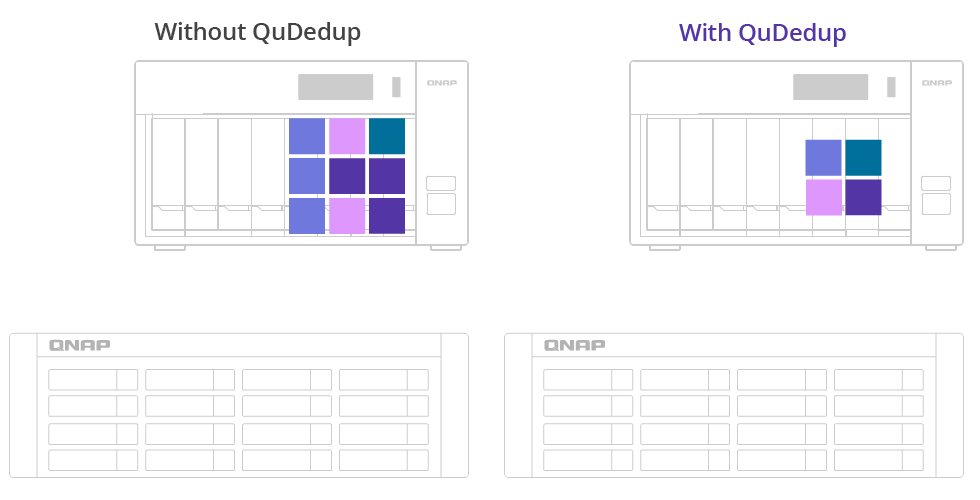

4. HBS provides comprehensive backup and data recovery; QuDedup deduplicates the data at the source to reduce storage space usage, bandwidth usage, and backup time.
5. Cloud storage gateways realize hybrid cloud applications by working with the cache space reserved on NAS to ensure low-latency data access to the cloud.
6. Hosts multiple virtual machines and containers to execute different applications in one NAS device.
Upgrade your NAS to 2.5GbE networks
The TS-253D comes with two 2.5GbE RJ45 LAN ports that allow you to use existing CAT5e cables to upgrade network speeds from 1 Gigabit to 2.5 Gigabit. The dual 2.5GbE ports also support Port Trunking for up to 5 Gbps! By using QNAP’s N-BASET/Multi-Gig USB 3.2 Gen 1 to 5GbE adapter (Model name QNA-UC5G1T) or 5GbE PCIe expansion card (Model name QXG-5G1T-111C), your laptop or desktop computer can easily connect to 2.5GbE networks with the TS-253D to benefit from higher network speeds.
Learn More: QNAP 2.5GbE solutions
Virtualization
Satisfies bandwidth-demanding applications such as virtual machines and containers.
Video Streaming
Boosts transfer speeds to improve smooth 4K video streaming and display.
Gaming Storage
Mount an iSCSI LUN from the TS-253D to your computer to store your vast game collections.
Transform your network with a wallet-friendly 2.5GbE switch
Upgrading your network shouldn’t break the bank, and 2.5GbE connectivity provides immediately noticeable improvements compared to standard 1GbE. The QSW-1105-5T is an unmanaged switch with five 2.5GbE ports (backwards compatible with 1G/100M) and supports CAT5e cables to connect multiple computers and NAS. The QSW-1105-5T is energy-saving, low-noise, plug-and-use, and supports loop detection and blocking to provide a simple and effective high-speed network environment.
Learn More: QSW-1105-5T
Virtualization Certifications Supported by TS-253D
A secure data center for backing up device data with snapshot protection
Windows® and Mac® backup
Use the license-free QNAP NetBak Replicator utility to back up and restore files from Windows® computers. Apple’s Time Machine® is supported for backing up Mac® computers.
Learn More: Data backup and disaster recovery
Snapshots for Volume & LUN
Snapshots are essential for NAS data protection, and their block-level feature makes it a dependable data protection method in the face of growing ransomware threats. The TS-253D supports up to 256 snapshots per volume/LUN, and up to 1,024 snapshots per NAS.
Learn More: Volume & LUN snapshots, Protect your data from Ransomware
One 2.5GbE is better than two 1GbE for increasing HBS backup efficiency
With a single 2.5GbE connection, no complex link aggregation settings are required for speeds up to 312.5MB/s – easily beating a paired 1GbE connection. The TS-253D has two 2.5GbE ports, further doubling performance and increasing efficiency for versatile tasks.
Hybrid Backup Sync (HBS) consolidates backup and synchronization functions for easily transferring data from the TS-253D to local, remote and cloud storage spaces. HBS also supports QuDedup technology which removes duplicated data at the source, further accelerating backup and restoration tasks over 2.5GbE connections.
Learn More: 2.5GbE solutions, Efficient HBS, QuDedup source-based data deduplication

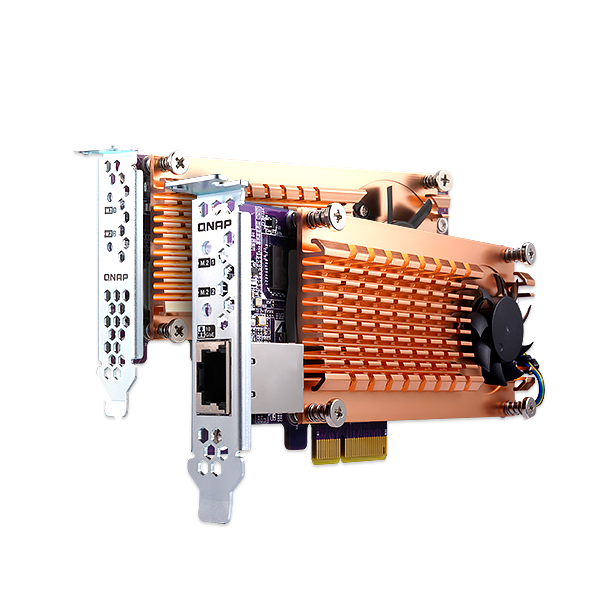

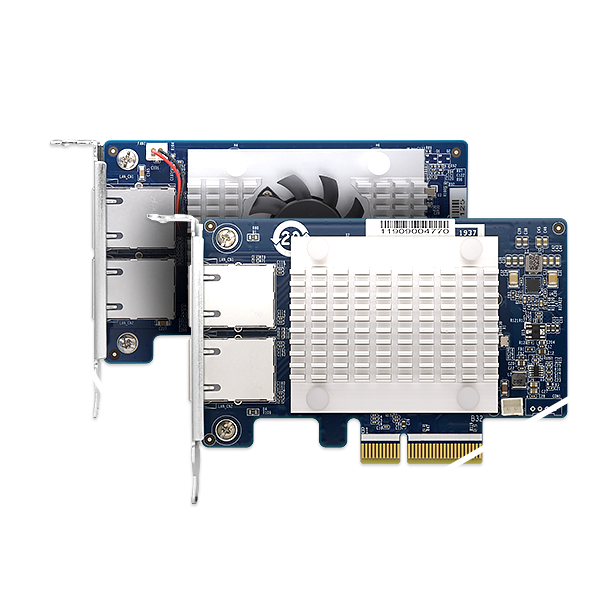

Abundant I/O capability with PCIe expansion
The TS-253D features one PCIe 2.0 slot that allows for various expansion cards for expanding application potential.
Wireless adapter
Turn your NAS into a wireless access point or a base station by installing a QNAP QWA-AC2600 wireless adapter and the WirelessAP Station app.
Learn More: QWA-AC2600 wireless adapter,WirelessAP Station
SSD caching and auto-tiering enable 24/7 optimized storage efficiency
While SSD prices continue to fall, and SSD capacity and performance continue to increase, organizations can easily take advantage of SSD strengths. The TS-253D supports numerous SSD-aware features that significantly maximize NAS performance with high cost-effectiveness.
Learn More: QNAP’s SSD technology
Ultimate visual experience with 4K HDMI display and real-time video transcoding
The TS-253D has an HDMI 2.0 port that supports 4K (4096 x 2160) 60Hz output, allowing you to directly view multimedia content saved on the NAS on a bigger screen. The support of high-quality 4K video transcoding enables the NAS to convert videos to universal file formats that can be smoothly played on multiple devices. The TS-253D also can stream videos through DLNA®, Chromecast™, and more to satisfy versatile multimedia application needs. The QNAP RM-IR004 remote control (sold separately) can be configured using QButton to customize individual button actions, providing a more user-friendly NAS experience.
Note: The TS-253D’s hardware provides hardware decoding, encoding, and transcoding capabilities. However, playback quality may vary due to factors including playback software, file formats, system usage, and available bandwidth.

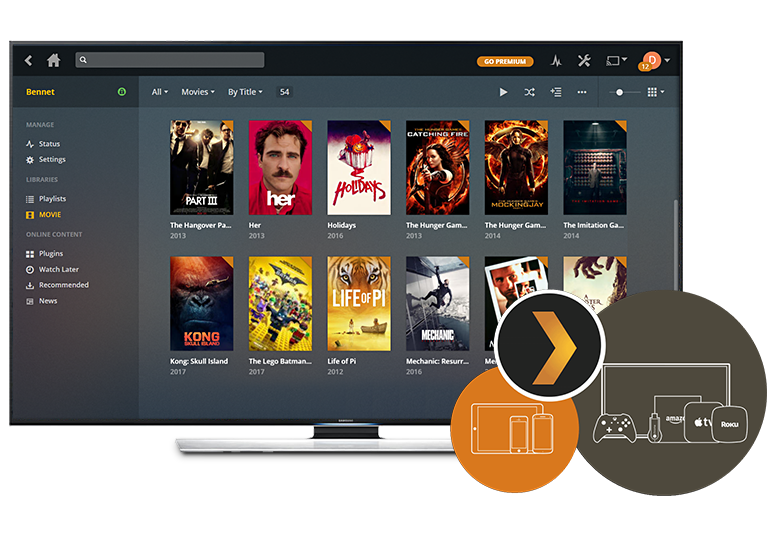

Build a Plex Media Server
By installing Plex® Media Server from App Center, setting up the Plex® Media Server on your NAS is only a few minutes away. You can stream media files stored on the TS-253D to mobiles and media streaming devices (including DLNA®, Roku®, Amazon Fire TV® and Google Chromecast™).
Learn More: Plex Media Server
Note: PlexPass is required for Plex Media Server hardware transcoding.
Move business data to the cloud flexibly and economically
The TS-253D perfectly integrates NAS with mainstream cloud services. By deploying cloud storage gateways and enabling local caching on the NAS, you can seamlessly use the cloud for storage, backup, and data recovery with low-latency access, providing an innovative hybrid cloud experience.
Learn More: QNAP cloud storage gateways
HybridMount file-based cloud gateway
Flexibly expand your storage capacity by connecting to cloud storage. You can leverage QTS apps to manage and edit your cloud files or multimedia files. HybridMount is ideal for file server online collaboration and file-level data analysis.
Learn More: HybridMount
VJBOD Cloud block-based cloud gateway
VJBOD Cloud supports streamlined NAS backup to object cloud storage. The block-based data transmission uploads random data and large files to the cloud in blocks, and only transmits block-based volume or LUN changes (such as addition, modification, or deletion). This is ideal for enterprise-level applications with large file transfer requirements, such as databases, VM volumes, and videos.
Learn More: VJBOD Cloud
All-in-one server to host virtual machines and containers
Regardless of your virtualization needs, you can count on Virtualization Station and Container Station for complete virtualization support. You can use Network & Virtual Switch to allocate adequate physical network resources to virtual machines, containers, and the NAS to simplify network deployment.
Virtualization Station
Run multiple Windows®, Linux®, UNIX®, and Android™ virtual machines and access them via a web browser or Virtual Network Computing (VNC). Businesses can run virtualized server applications on a single NAS without the need for additional physical servers.
Learn More: Virtualization Station, P2V
Container Station
Experience LXC and Docker® lightweight virtualization technologies, download apps from the built-in Docker Hub Registry®, import and export containers, and create abundant microservices.
Learn More: Container Station, QIoT Containers
High-speed VM Backup Solution
With Hyper Data Protector, the TS-253D becomes an agentless backup tool for unlimited VMware® vSphere and Microsoft® Hyper-V VM backup. Hyper Data Protector features incremental backup, global deduplication, backup scheduling and recovery compression that provides you with a cost-effective and reliable disaster recovery plan, ensuring 24/7 operation of your services.
Learn More: Hyper Data Protector
Notes: QNAP NAS must be running QTS version 4.3.6 or later
Optimized collaboration with seamless file sharing and sync
The TS-253D centrally stores data and files, and supports SMB/CIFS, AFP and NFS protocols for file sharing across Windows®, Mac®, and Linux®/UNIX® networks. Coupled with the Qsync utility, any file uploaded to the TS-253D will be made available for all linked devices (such as computers, laptops and mobiles). You can sync shared folders and team folders for group file sharing to enhance the flexibility of team projects and collaboration. With the myQNAPcloud service, you can easily and securely connect to the TS-253D via the Internet for accessing, managing, and sharing NAS files. The Windows AD® and LDAP services enable system administrators to configure user permissions by using an existing Windows AD® server, LDAP server, or the TS-253D’s built-in LDAP service.
Learn More: Cross-platform file sharing, myQNAPcloud service
Secure your premises with integrated surveillance solutions
QVR Pro allows you to arrange a dedicated, independent storage space for surveillance data on the TS-253D and leverage the advantages of scalable NAS storage. It greatly simplifies camera management, storage space allocation, camera live view, and playback. Supporting over 5,000 IP cameras (including all standard fisheye cameras available on the market), QVR Pro provides 8 license-free channels for surveillance monitoring and the optional QVR Pro Camera Channel Extension License for more extensive security deployment. You can also use QVR Pro Client’s mobile app to monitor anytime, or use a USB webcam as an ONVIF® network camera with the QUSBCam2 app.
Learn More: QVR Pro, QNAP mobile apps
*The maximum number of channels supported varies by NAS model, network configuration, and camera settings. For more information, visit https://www.qnap.com/go/qvr-nas-selector。
More productivity applications
Notification Center
Consolidates all QTS system events, alerts, and notifications for smooth and easy NAS management, keeping you always informed of your NAS status.
Learn More: Notification Center
Security Counselor
A security portal for checking weaknesses and providing recommendations for enhancing NAS security. It also integrates anti-virus and anti-malware scanning software.
Learn More: Security Counselor
Qsirch
QNAP’s powerful, Google-like search tool for quickly finding specific images, music, videos, documents, and emails by keywords, color, and more search conditions.
Learn More: Qsirch
Boxafe
Allows you to backup or sync files, emails, calendars and contacts from Google™ Workspace and Microsoft® Office 365® into the NAS to safeguard enterprise cloud data.
Learn More: Boxafe
QuMagie
An AI-powered photo management app, supporting automated photo categorization with AI Albums, iOS® Live Photo display, and powerful search tool for ultimate photo management and sharing solution.
Learn More: QuMagie
Qmiix
An Integration Platform as a Service (iPaaS) solution that enables you to connect apps and devices with QNAP NAS for automating daily tasks for greater productivity.
Learn More: Qmiix
Expand your Storage with USB 3.2 Gen 2 (10 Gbps) – Better than eSATA!
Flexibly expand the storage capacity of the TS-253D via USB or multi-lane SATA interfaces. You can choose a high-speed USB 3.2 Gen 2 (10 Gbps) TL series JBOD, USB 3.2 Gen 1 (5 Gbps) TR series RAID expansion enclosures, or SATA 6Gbps TL series JBOD. They provide economical, flexible, high-performance and high-capacity storage expansion solutions for NAS, PC and servers.
Learn More: TL USB JBOD series, TL SATA JBOD series, TR series RAID expansion enclosures
| Popularity | Interface | Theoretical Performance | |
 |
eSATA |  3 Gb/s |
|
 6 Gb/s |
|||
 |
USB 3.2 Gen 1 |  5 Gb/s |
|
| USB 3.2 Gen 2 |  10 Gb/s |
||
Note: A USB 3.2 Gen 2 PCIe card or QXP SATA expansion card is required for using a compatible expansion enclosure.
Flexible and economical storage expansion
QNAP provides easy storage capacity expansion solutions. Here are several ways to expand your TS-253D storage as needed to accommodate data and business growth.
Upgrade RAID Capacity
Hot-swap lower-capacity drives with larger-capacity drives to expand your NAS capacity so it can grow with your business.
Learn More: Online RAID capacity upgrade
Attach Expansion Enclosures
Connect two TR-004 RAID expansion enclosures, or one 8-bay TL-D800C USB 3.2 Gen 2 JBOD, or one 16-bay TL-D1600S SATA 6 Gb/s JBOD, and use the QTS Storage & Snapshots Manager to easily handle NAS capacity expansion.
Learn More: Storage expansion compatibility
Migrate to a New NAS
Install your NAS hard drives into a larger QNAP NAS and retain all your existing data and configurations.
Learn More: Migrating from An old NAS
Extend hardware warranty up to 5 years
The TS-253D is backed by a 3-year warranty at no additional costs. You can purchase a warranty extension that extends your warranty coverage up to 5 years.
Learn More: QNAP warranty services
Short Tech Specification
| 2-Bay NAS, Intel Celeron Gemini Lake J4125 quad-core 2.0GHz (up to 2.7GHz), 4GB DDR4 SODIMM RAM (1 x 4GB, 2 slots, max 8GB total), SATA 6Gb/s, 2 x 2.5GbE, 1 x PCIe Gen2 x4 slot for 10GbE/5GbE/1GbE or QM2 M.2 SATA/NVMe SSD adapter, AES-NI encryption, hardware transcoding, 4K HDMI 2.0 60Hz, 5 x USB ports, Virtualization, Surveillance with QVR Pro & Surveillance Station, expand with QNAP TL & TR expansion units |
Detailed Tech Specification
Hardware Specs
TS-253D-4G
| CPU | Intel® Celeron® J4125 4-core/4-thread processor, burst up to 2.7 GHz |
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Intel® HD Graphics 600 |
| Floating Point Unit | ✓ |
| Encryption Engine | ✓ (AES-NI) |
| Hardware-accelerated Transcoding | ✓ |
| System Memory | 4 GB SODIMM DDR4 (1 x 4 GB) |
| Maximum Memory | 8 GB (2 x 4GB) |
| Memory Slot | 2 x SODIMM DDR4
For dual-DIMM configuration, you must use a pair of identical DDR4 modules.
|
| Flash Memory | 4GB (Dual boot OS protection) |
| Drive Bay | 2 x 3.5-inch SATA 6Gb/s, 3Gb/s
The system is shipped without HDD.
For the HDD compatibility list, please visit https://www.qnap.com/compatibility/ |
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | ✓ |
| M.2 Slot | Optional via a PCIe adapter |
| SSD Cache Acceleration Support | ✓ |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
| 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via PCIe expansion card |
| 10 Gigabit Ethernet Port | Optional via PCIe expansion card
Optional via PCIe expansion card
|
| Wake on LAN (WOL) |
✓
Only the 2.5GbE port
|
| Jumbo Frame | ✓ |
| PCIe Slot | 1 Slot 1: PCIe Gen 2 x4 PCIe bandwidth limitations will restrict the NAS 10GbE performance.
|
| USB 2.0 port | 3 |
| USB 3.2 Gen 1 port | 2 |
| USB 3.2 Gen 2 (10Gbps) Port | Optional via a PCIe expansion card |
| IR Sensor | ✓
(Optional QNAP RM-IR004 remote control) |
| HDMI Output | 1, HDMI 2.0 (up to 4096 x 2160 @ 60Hz) |
| Form Factor | Tower |
| LED Indicators | Power/Status, LAN, USB, HDD1-2 |
| Buttons | Power, USB copy, Reset |
| Dimensions (HxWxD) | 168 × 105 × 226 mm |
| Weight (Net) | 1.55 kg |
| Weight (Gross) | 2.68 kg |
| Operating Temperature | 0 – 40 °C (32°F – 104°F) |
| Storage Temperature | -20 – 70°C (-4°F – 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 65W adapter (12VDC), 100-240VAC |
| Power Consumption: HDD Sleep Mode | 8.198 W |
| Power Consumption: Operating Mode, Typical | 12.448 W
Tested with drives fully populated.
|
| Fan | 1 x 70mm, 12VDC |
| System Warning | Buzzer |
| Kensington Security Slot | ✓ |
| Max. Number of Concurrent Connections (CIFS) – with Max. Memory | 1500 |
| Processor | Intel Celeron |
|---|---|
| Memory | 4GB |
| Graphics | Integrated Intel UHD |
