QNAP QSW-M5216-1T 16 ports 2.5GbE RJ45 with PoE 802.3at(30W), 2 ports 10GbE SFP+, 2 ports 10GbE RJ45 with PoE 802.3bt(90W), Max PoE power consumption goes to 280W, web managed switch – QSW-M5216-1T
QSW-M5216-1T
Ultra-high-speed 25GbE fiber managed switch with 10GbE connectivity for backbone networks
Overview
Features
The QSW-M5216-1T is a 16-Port 25GbE SFP28 fiber Managed Switch with one 10GbE NBASE-T port. Supporting Layer 2 switching and network management via a user-friendly web user interface, the QSW-M5216-1T provides an entry-level network management solution that is usable even by non-IT professionals. Offering ultra-high 25GbE speeds and a backbone switching capacity of 820Gbps, the QSW-M5216-1T can serve as the core switch uplinking to 25G Servers and NAS in server rooms or connecting to 25G/10G switches to accelerate high-speed storage, video editing, virtualization, and AI applications. The QSW-M5216-1T provides flexible network interfaces for high compatibility at an affordable price, enabling small businesses to quickly upgrade to an ultra-high-speed backbone network by integrating to existing network infrastructure.
25GbE Fiber
The QSW-M5216-1T has sixteen 25GbE SFP28 fiber ports and a backbone switching capacity of 820Gbps for uplinking server rooms.
10GbE connectivity
The QSW-M5216-1T is equipped with one 10GbE NBASE-T port for hybrid high-speed network deployment.
User-friendly management interface
Featuring a user-friendly web UI, the QNAP Switch System (QSS) provides an overview dashboard, port management and setting guide, making central network management intuitive and easy.
Layer 2 network
The QSW-M5216-1T provides Layer 2 management features (such as LACP, VLAN, ACL and LLDP) for efficiently controlling network bandwidth and enhance security.
RSTP protocol
The QSW-M5216-1T supports Rapid Spanning Tree Protocol (RSTP). You can easily and efficiently deploy small/medium-scale networks that support expansion, redundancy, and loop prevention.
Energy saving
Compliant with IEEE 802.3az Energy Efficient Ethernet and IEEE802.3x Flow Control in full-duplex mode, the QSW-M5216-1T avoids packet loss from unparalleled bandwidth and reduces power consumption for low-speed and inactive connections.
QNAP 25GbE Switch
QSW-M5216-1T

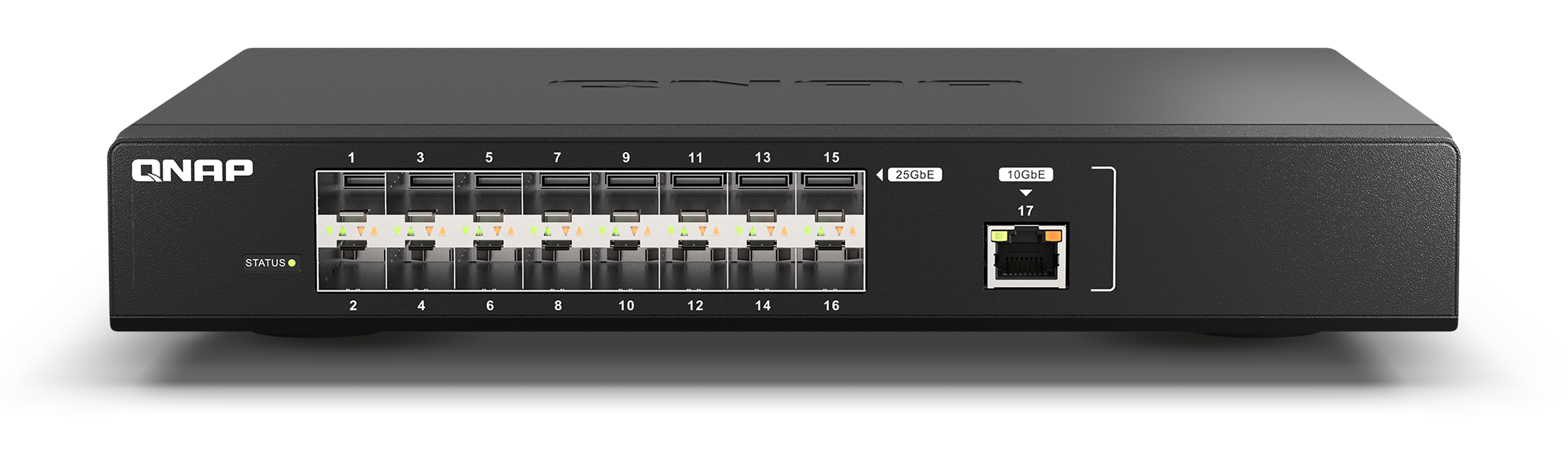

Honored with Interop Tokyo 2022 Best of Show Award for Runners-up
Upgrade to ultra-high-speed 25GbE with ease!
While 10GbE is a solid base for high-speed network transmission, the ultra-high-speed 25GbE provides comparative cost advantages and compatibility in SMB server rooms to satisfy data computing applications.

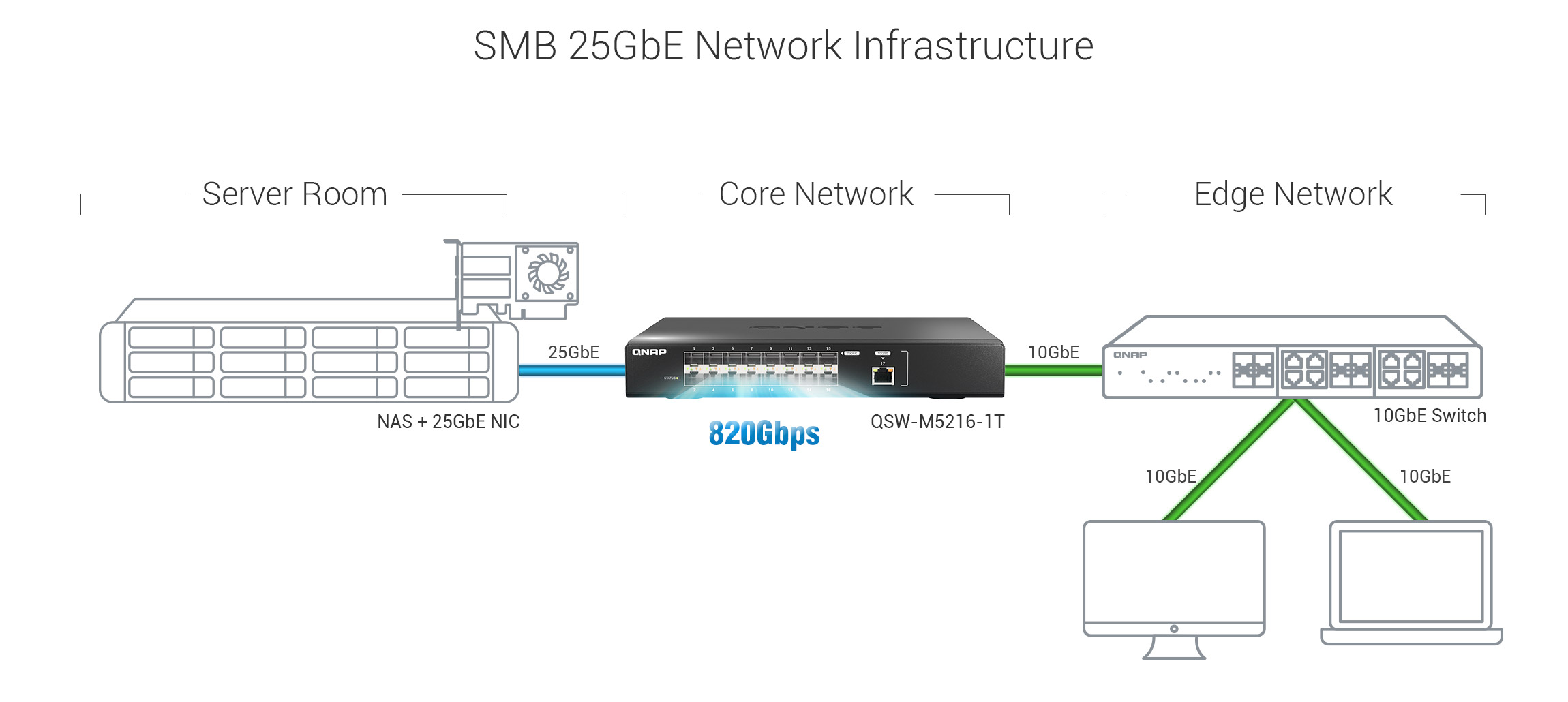

High switching capacity of 820Gbps for backbone networks
The QSW-M5216-1T has sixteen 25GbE SFP28 fiber ports and offers backbone switching capacity of 820Gbps, guaranteeing the full potential of each port. The QSW-M5216-1T can serve as the core switch uplinking to 25G/100G Servers and NAS in server rooms or connecting to 25G/10G edge fiber switches.
Flexible deployment with multiple 25GbE and 10GbE ports
Along with sixteen 25GbE SFP28 fiber ports, the QSW-M5216-1T is has one 10GBASE-T port for enabling hybrid high-speed networks. Its 25GbE SFP28 interfaces are backward compatible with 10GbE SFP+/1GbE SFP; and 10GbE RJ45 is compatible with NBASE-T technologies to support five speeds (10G / 5G / 2.5G / 1G / 100M).
Learn More: 25GbE NAS TS-h2490FU, 25GbE NAS TS-h3088XU-RP, QNAP 10GbE NAS Solution, QNAP 40GbE/25GbE/10GbE Expansion Cards
25GbE SFP28 Fiber
10GbE RJ45

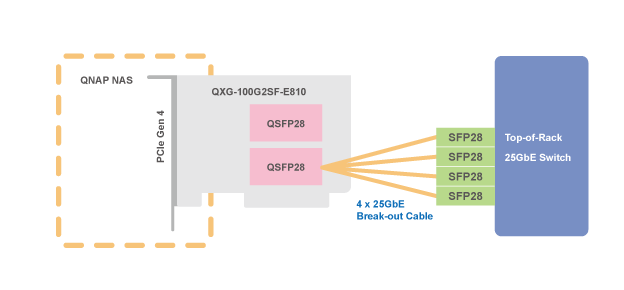

Pair with a NAS and 100GbE network expansion card for high-performance, low-latency computing
By using QSFP28 to (4) SFP28 cables, you can easily connect the four 25GbE ports on the QSW-M5216-1T to a NAS with a QXG-100G2SF-E810 dual-port 100GbE network expansion card. You can also use two QSFP28 to (4) SFP28 cables to connect the 100GbE port on the QXG-100G2SF-E810 to four 25GbE ports on the switch. Set a group of QSFP28 to (4) SFP28 connection as the main route and the other as a backup route.
Learn More: QNAP Dual-port 100GbE network expansion card (QXG-100G2SF-E810)
*The breakout cable must be connected to the 100GbE port nearest to the gold finger.
QSS: Intuitive Network Management Software
The QNAP Switch System (QSS) features an easy-to-use Web GUI with value-added functions to simplify network set up and management.
Learn More: QSS
QSS: Human-centered settings guide
QSS provides an overview dashboard, port management and setting guide to help control Layer 2 networks.
Optimize Network Performance with bandwidth and packet control
The QSW-M5216-1T provides bandwidth and packet control functions (such as LACP, VLAN, QoS, and IGMP Snooping) to boost network performance through IP grouping and bandwidth management.
Powerful security and system functions
The QSW-M5216-1T has powerful security and system functions (including ACL, LLDP, RSTP and Flow Control) to help enhance network reliability with access controls, troubleshooting, loop prevention and avoiding packet loss.

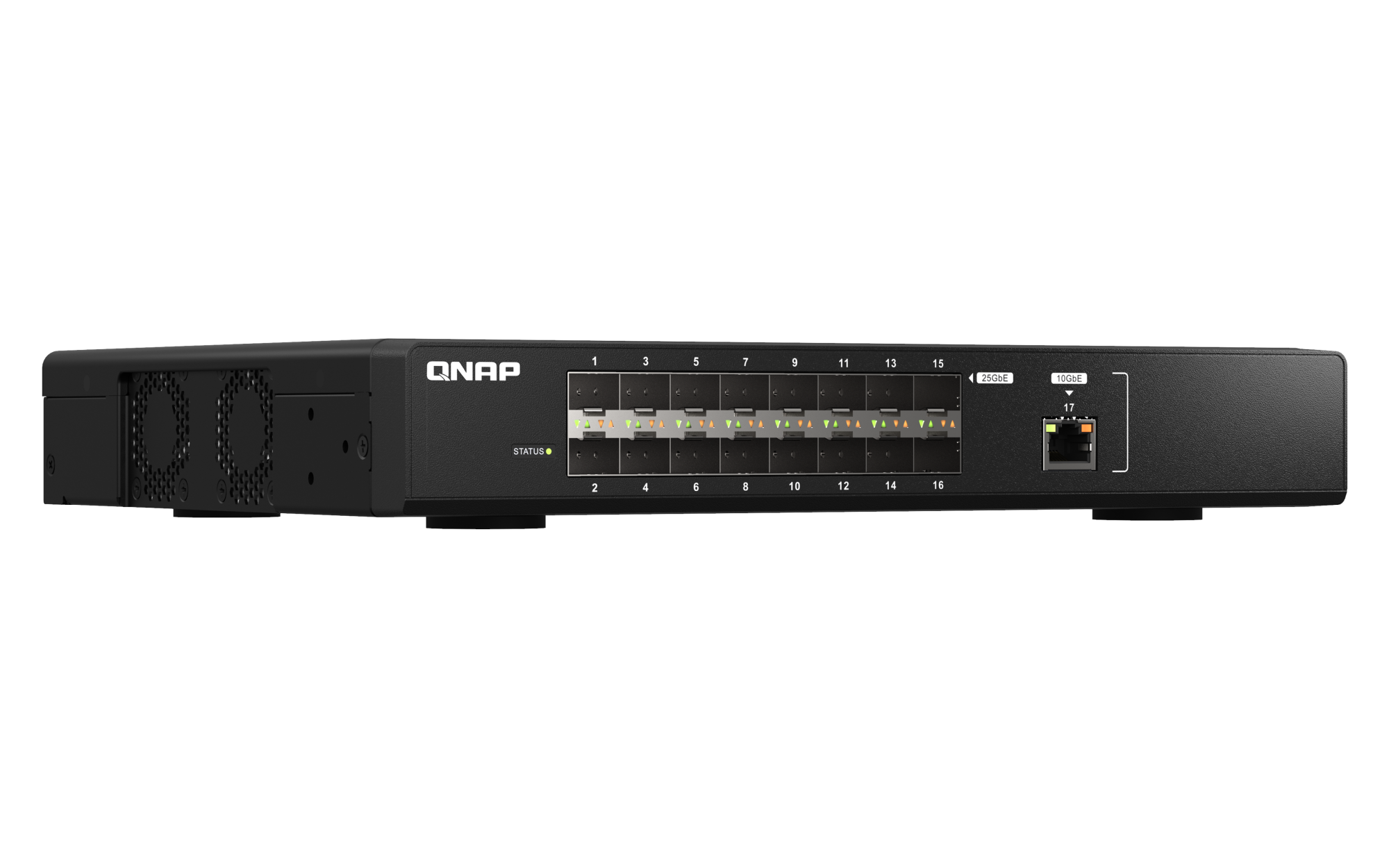

Near-silent and energy saving
With its smart cooling system, the QSW-M5216-1T ensures high-speed network performance without distracting background noise. IEEE 802.3az (EEE) support also reduces power consumption without sacrificing performance or functionality. By dynamically detecting and adjusting for link speeds and activities, the QSW-M5216-1T provides energy savings of up to 50% to minimize operational costs.
Compatible DAC and transceivers
Check the compatible DAC and transceivers for QSW-M5216-1T on the Compatible List.
Short Tech Specification
| QSW-M5216-1T, 16 ports 2.5GbE RJ45 with PoE 802.3at(30W), 2 ports 10GbE SFP+, 2 ports 10GbE RJ45 with PoE 802.3bt(90W), Max PoE power consumption goes to 280W, web managed switch |
Detailed Tech Specification
Hardware Specs
QSW-M5216-1T
| Management Type | Web Managed |
| Number of Ports | 17 |
| 25GbE SFP28 | 16 |
| 10GbE BASE-T (RJ45) | 1 |
| Management Port | 1 x 1GbE RJ45 |
| Power Supply Description | Internal Power Supply Unit |
| Max. Power Consumption | 80W |
| Input Power Type | AC |
| Input Voltage Range | 100-240VAC, 50/60 Hz |
| MAC Address Table | 32K |
| Total Non-Blocking Throughput | 410Gbps |
| Switching Capacity | 820Gbps |
| Management Interface | Web |
| Console | RS232 |
| Energy Efficient Ethernet (IEEE 802.3az complaint) | ✓ |
| Fan | ✓ |
| Supported Standards | IEEE 802.3 Ethernet IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5G/5GBase-T IEEE 802.3an 10G BASE-T IEEE 802.3z 1000BASE-SX/LX IEEE 802.3ae 10G Fiber IEEE 802.3x Full-Duplex Flow Control IEEE 802.3by 25 Gigabit Ethernet IEEE 802.1Q VLAN Tagging IEEE 802.1w RSTP IEEE 802.3ad LACP IEEE 802.1AB LLDP IEEE 802.3az Energy Efficient Ethernet IEEE 802.1p Class of Service |
| Form Factor | Rackmount |
| LED Indicators | Per Port: Speed/Link/Activity Per System: Power/Status |
| Buttons | Reset button |
| Dimensions (HxWxD) | 43.5 x 285 x 237.7 mm |
| Weight (Net) | 2.15 kg |
| Weight (Gross) | 2.85 kg |
| Operating Temperature | 0˚C to 40°C (32°F to 104°F) |
| Relative Humidity | 5~95% Non-condensing |
| Certifications | CE, FCC, VCCI, BSMI |
| Electromagnetic Compliance | Class A |
| Jumbo Frames | 9K |
| Warranty | 2 Years |
