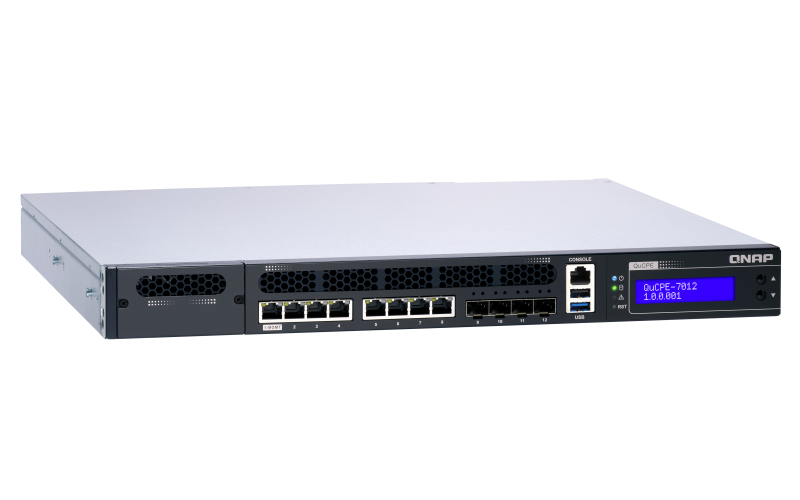

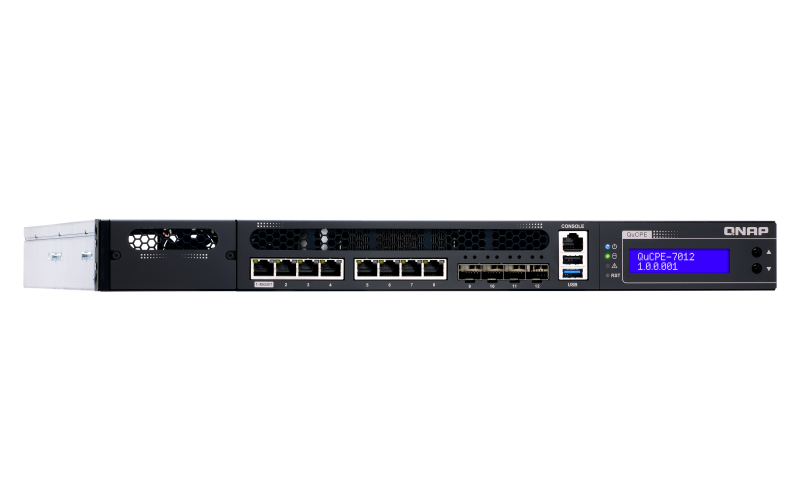

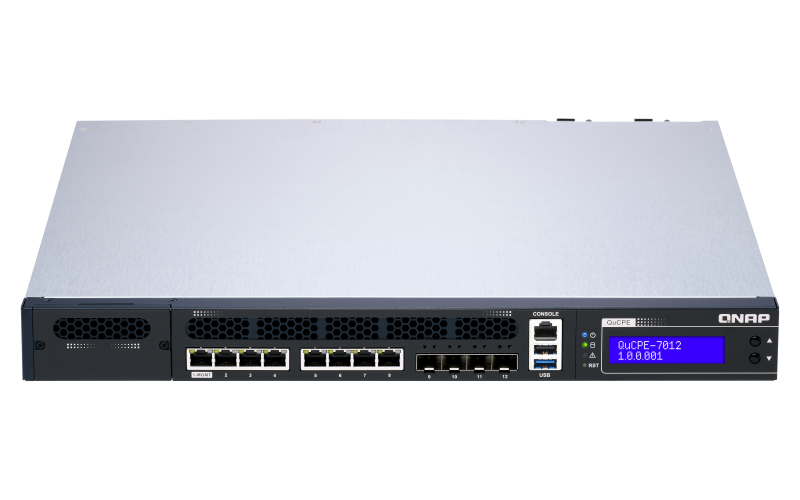

QNAP QuCPE-7012-D2146NT-32G Server Intel Xeon D-2146NT, 8×2.5GbE RJ45 ports and 4x10GbE SFP+ ports, 1xnetwork module, 1xPCIe Gen3 x8 slot, 2×2.5″ SATA HDD/SSD slot, Redundant 300W power supply units – QuCPE-7012-D2146NT-32G
[ratingwidget type="page"]
For The Immediate delivery contact the sales team. Usually, Ship in 2-3 days, backorder ship in 4-5 Weeks, images are for illustration purposes only.
Original price was: AED 12,948.00.AED 11,893.00Current price is: AED 11,893.00. excl. VAT
Best Price: AED 11,595.68 on Bank Transfer / Cash Payment (-AED 297.33)
Estimated delivery between Dec 26, 2024 - Jan 16, 2025
QNAP QuCPE-7012-D2146NT-32G Server Intel Xeon D-2146NT, 8×2.5GbE RJ45 ports and 4x10GbE SFP+ ports, 1xnetwork module, 1xPCIe Gen3 x8 slot, 2×2.5″ SATA HDD/SSD slot, Redundant 300W power supply units – QuCPE-7012-D2146NT-32G
QuCPE-7012
Network Virtualization Premise Equipment with an Intel® Xeon D multi-core processor, suitable for multi-user and multi-tasking business applications.
Overview
Features
QNAP’s QuCPE-7012 Network Virtualization Premise Equipment is a universal virtualization platform specifically designed for SMBs. The QuCPE-7012 adopts powerful Intel® Xeon® D multi-core processors that support Intel® QAT*, Smart NIC SR-IOV and DPDK hardware acceleration technologies and provides multi-port 2.5GbE, 10GbE, a network module slot and a PCIe slot for 25GbE/ 10GbE expandability. With enhanced bandwidth and computing performance for running multiple VMs and VNFs, the QuCPE-7012 is suitable for multi-user and multi-tasking business applications. The QuCPE-7012 also features the QNE (QNAP Network Equipment) OS for chaining VNF services and AMIZ Cloud centralized deployment and management platform to realize flexible Zero Touch Provisioning.
Network Function Virtualization
QNAP’s proprietary QNE operating system provides convenient and intuitive Network Service Composer with the world’s first visualized VM / VNF service chaining topology.
Hardware Acceleration Technologies
Intel® QAT, Smart NIC SR-IOV and DPDK offer superior computing power for virtualization deployment and enhance SD-WAN and VPN transmission efficiency.
Cloud Management
AMIZ Cloud is a centralized management platform that enables IT administrator at HQ to centrally monitor all edge devices, virtual machines, and containers, helping enterprises achieve Zero Touch Provisioning to enhance IT deployment efficiency and reduce maintenance costs.
Multi-site Network Infrastructure
The incorporated QuWAN SD-WAN solution helps achieve multi-site network infrastructure expansion.
Installation-On-Demand
The Application Store is a software platform providing various Virtualized Network Functions (VNF) and applications including firewalls and software routers.
WireGuard VPN
Supports WireGuard VPN to offer privacy protection and advanced encrypted security transmission for faster and stable remote working networks.

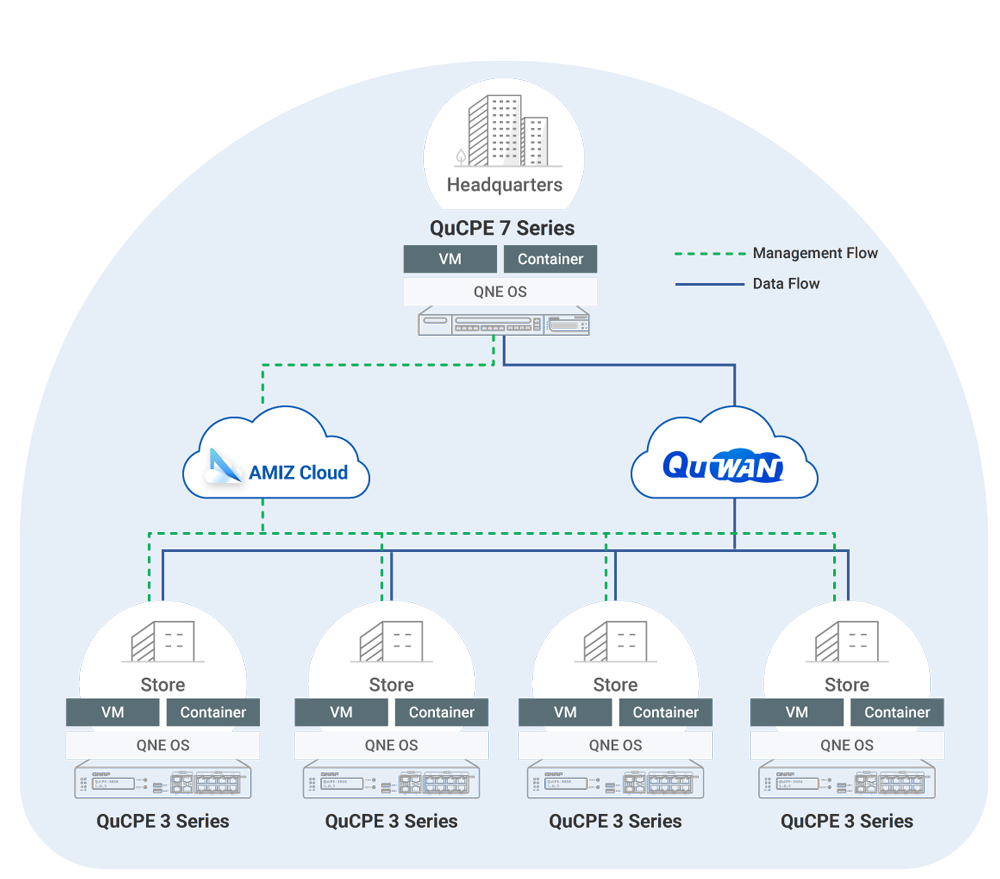

Build a multi-site network infrastructure for SMBs and Micro-enterprises
QNAP’s high-performance QuCPE integrates the QuWAN SD-WAN solution, AMIZ Cloud platform, and WireGuard VPN. Small businesses and micro-enterprises can flexibly build multi-site network infrastructure by deploying a QuCPE Series 7 in their headquarters, and QuCPE Series 3 in their branches and workplaces.
Easily deploy virtual network environments with the 2-in-1 Premise Equipment
When deploying virtualized environments, Enterprises often choose to install costly enterprise-grade solutions on edge servers or free solutions with limited technical support – a hard decision for resource-constricted SMBs. In addition, simultaneously running multiple VMs can impact network performance. QNAP’s QuCPE Network Virtualization Premise Equipment feature hardware acceleration technologies, QNAP’s proprietary QNE Network operating system and the AMIZ Cloud centralized management platform to help SMBs build a highly-optimized virtual network infrastructure.
The QNE Network Operating System completes the virtual network infrastructure
QNAP’s proprietary QNE Network operating system supports the intuitive Network Service Composer and Software-Defined WAN (SD-WAN), allowing for flexible network deployment and multi-site network infrastructure expansion. By supporting Virtual Network Functions (VNF), Virtual Machines and Containers, QNE Network integrates network, computing and application services to realize network virtualization, application virtualization and efficient management, greatly lowering management and maintenance complexity.
Learn More: QNE Network

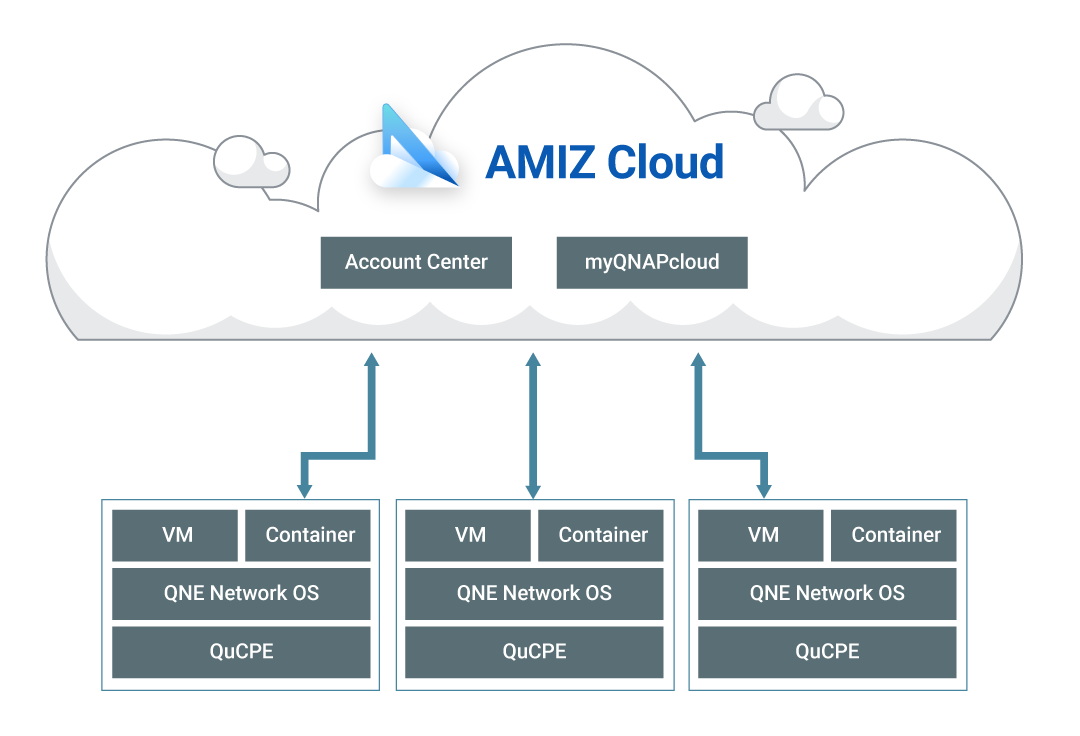

AMIZ Cloud – powerful centralized VM management platform
The AMIZ Cloud centralized management platform enables IT administrator at HQ to centrally monitor all edge devices, virtual machines and containers. Supporting troubleshooting, and remote management via the Account Center, the QuCPE-7012 helps enterprises achieve Zero Touch Provisioning, thus enhancing IT deployment efficiency and reducing maintenance costs.
Learn More: AMIZ Cloud

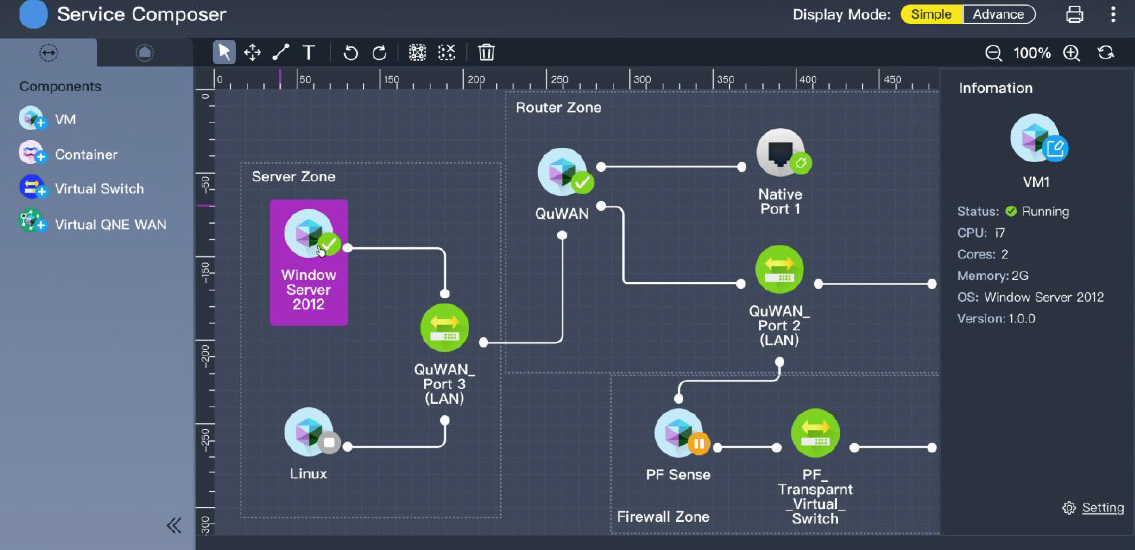

Efficient management via Service Composer with visualized topology
With the visualized topology of the Network Service Composer, you can easily set up VNFs or VMs, create virtual switches , and allocate physical network resources for chained services by drag and drop. When settings change, you can directly add/remove individual VNFs using the service composer, greatly simplifying operational network combination.
Learn More: Service Composer, QNE Network Manager
Run your VM/VNF Directly on QuCPE
QNE Network inherits versatile virtual applications from the QNAP QTS system. QuCPE can simultaneously run multiple virtual machines, software containers, and even bespoke user-made virtual machines in Virtualization Station and Container Station, assisting SMBs in improving deployment and management flexibility while streamlining hardware costs.

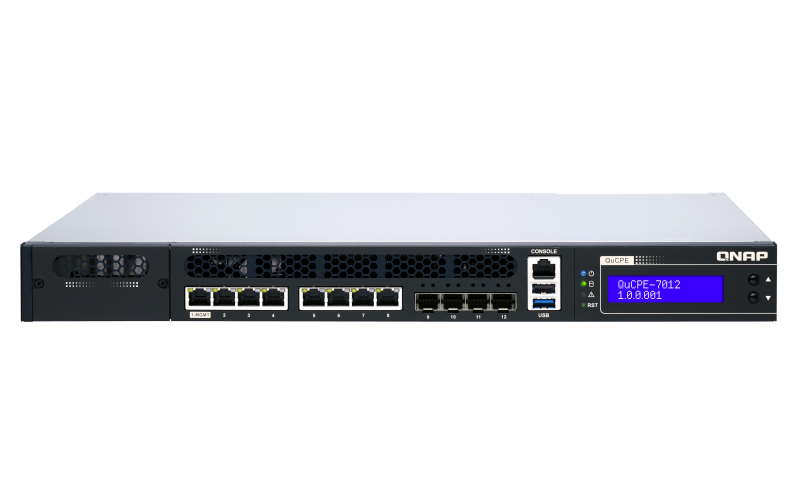

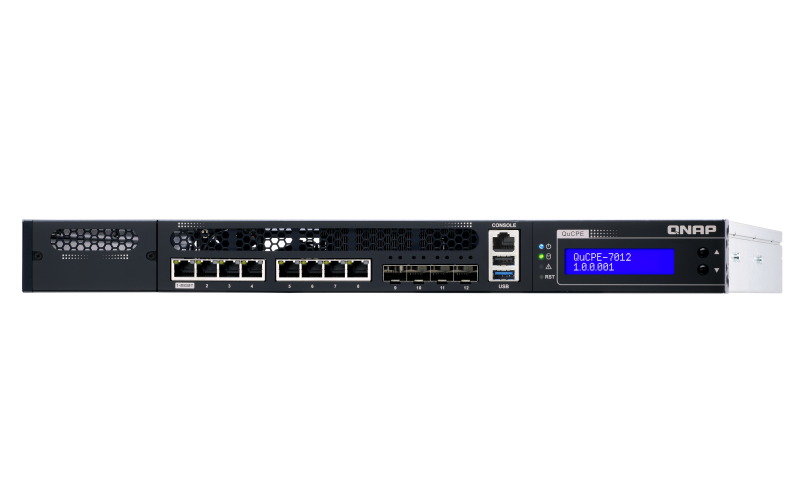

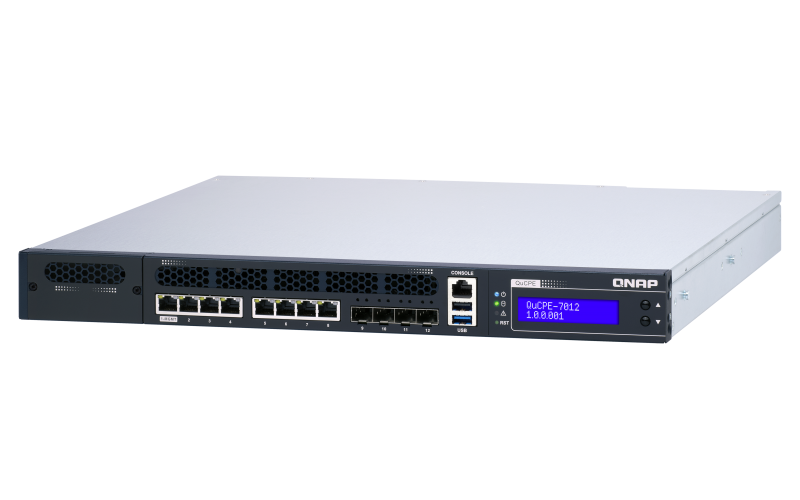

Powerful server-grade hardware architecture
With multi-port capabilities and expandable architecture, the QuCPE-7012 enables optimal storage, computing, and deployment flexibility to fulfill performance and application diversification requirements.
1. 1x PCIe Gen3x8 expansion slot
Install a QNAP 25Gbps/10GbE network card, QM2 card, USB 3.2 Gen 2 (10Gbps) card, or a wireless adapter card for greater application potential.
2. 1x Network module slot
Install a QNAP network module to add 10GbE RJ45/SFP+ ports.
3. System fans
Automatically adjusts fan speeds based on system temperatures.
4. Intel® Xeon® processors
High-performance Intel® Xeon® D series multi-core 2.2 GHz processors
5. DDR4 memory
Supports eight DDR4 2133/2400 Unbuffered DIMM memory modules for a maximum of 128GB/256GB RAM.

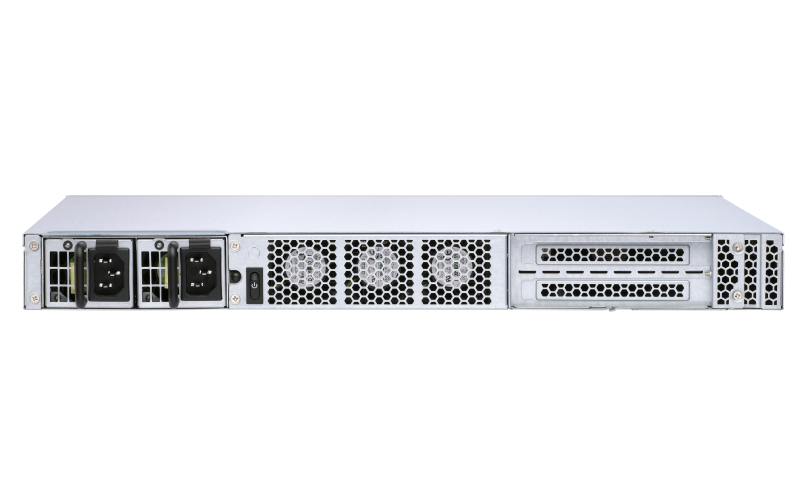

6. Power supply unit
300W power supplies ensure continuous system uptime.
7. 2x 2.5-inch SATA 6Gb/s drive bays
Install hard drives or SSDs to securely store application data.
8. 8x RJ45 2.5GbE ports
Connect to switches or other LAN devices.
9. 4x 10GbE SFP+ ports
Provides high-speed connectivity to next-generation 10GbE routers, switches, and servers.
10. 1x RJ45 Console port
A dedicated RJ45 Console port for host management.
11. 1x USB 2.0 port and 1x USB 3.2 Gen 1 port
Connect and use USB devices such as USB cameras with the QuCPE-7012 (external storage devices are not supported).
12. LCD monitor and control buttons
The LCD Monitor displays real-time IP and firmware information of the Switch and QNE Network System to help you understand the network status. The control buttons allow you to directly configure and restart the system.

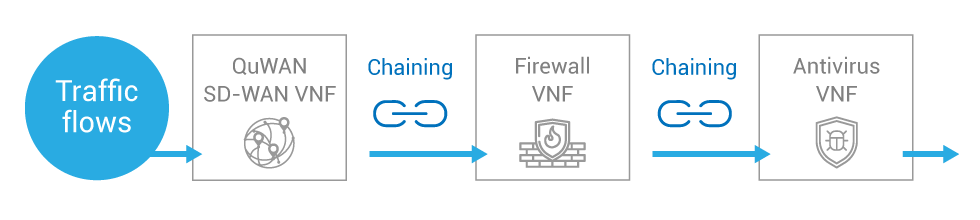

SD-WAN enables chaining network services
QNE incorporates QNAP’s QuWAN SD-WAN solution (subscription-free) to form encrypted VPN tunnels with other QNAP devices based in multiple sites and achieve multi-site network services chaining. For example, you can automatically create a firewall network (using QuWAN and pfSense VNFs) to enhance WAN security in the Service Composer UI using drag-and-drop.
Learn More: QuWAN, Deploying QVPN Server via Cloud, QVPN Service with WireGuard
Smart IT tools for network management efficiency
QNE Network provides comprehensive management features for Smart IT network management.
Notification Center
QuLog Center
Security Center
Zabbix

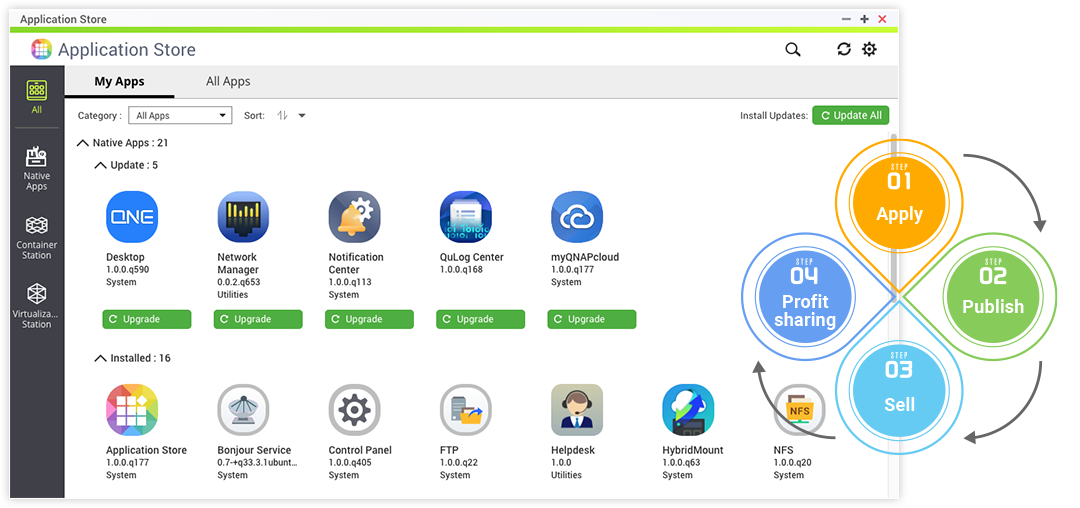

AMIZ Marketplace Open ecosystem platform
The AMIZ Marketplace is an open platform ecosystem where software developers can launch VNF and apps. The AMIZ Marketplace features well-rounded licensing and payment services to streamline app deployment and payments. Third Party Managed service providers, independent software vendors and business integrators are welcome to develop a collaborative ecosystem to foster greater business innovation with QNAP.
Note: The function that supports publishing self-made apps will be available in 2022 Q1.
Supports third Party Virtual Network Functions
The Application Store and VM Marketplace provide multiple free and premium VNF and applications that users can install on demand.
Firewall Software
Virtual firewall software (like pfSense) help enterprises separate or protect local networks and apply multiple security policies.
Learn more: QNAP x pfSense
Virtual Router
The QuCPE-7012 can be transformed into a security router by installing RouterOS or OpenWrt. You can also create site-to-site VPN tunnels between headquarters and branch offices while securing enterprise network data transmission.
Learn more: Deploy MikroTik RouterOS router software with a QNAP NAS, Deploy pfSense, RouterOS or OpenWrt router software using Virtualization Station
Network modules for bandwidth expansion needs
 PulM-10G4SF-XL710 |
 PulM-10G4SF-MLX |
 PulM-25G2SF-MLX |
|
| Speed | 10 GbE | 10 GbE | 25 GbE |
| Ports | 4 | 4 | 2 |
| Interface | SFP+ | SFP+ | SFP28 |
| Processor | Intel XL710 |
Nvidia Mellanox ConnectX-4 |
Nvidia Mellanox ConnectX-4 |
| Bus | PCIe 3.0 x8 | PCIe 3.0 x8 | PCIe 3.0 x8 |
Notes
QuCPE QNE Network allocates the full capacity of the 2.5-inch drives to be an Application Volume. VM, Container and vDisk data is stored in the Application Volume by default. If two identical 2.5-inch drives are installed in the QuCPE-7012, they will be configured as RAID 1 by default in QNE Network Edition. All the storage management features in the NAS QTS OS (such as creating storage pools for file storage and Snapshots) are not supported by QuCPE QNE Network Edition.
Short Tech Specification
| QuCPE-7012-D2146NT: Intel Xeon D-2146NT, 8 x 2.5GbE RJ45 ports and 4 x 10GbE SFP+ ports, 1 x network module, 1 x PCIe Gen3 x8 slot, 2 x 2.5″ SATA HDD/SSD slot, Redundant 300W power supply units |
Detailed Tech Specification
Hardware Specs
QuCPE-7012-D2146NT-32G
| CPU | Intel® Xeon® D-2146NT 8-core/16-thread 2.3GHz processor (11M Cache; burst up to 3.0GHz) |
| System Memory | 32GB DDR4 2666MHz ECC RDIMM (2 x 16GB) |
| Maximum Memory | 128 GB (UDIMM) or 256GB (RDIMM) |
| Memory Slot | 8 x Long-DIMM DDR4 DDR4 2133/2400MHz slots, up to 128 GB (UDIMM) or 256GB (RDIMM) |
| Drive Bays | 2 x 2.5-inch SATA 6Gb/s, 3Gb/s |
| Total number of built-in and Pre-configured Ports | 12 |
| 10GbE SFP+ | 4 |
| 2.5GbE (RJ45) | 8 |
| Network Module Slot | 1 |
| PCIe Slot | 1 x PCIe Gen 3 x8 |
| Console Port (RJ45) | 1 |
| Form Factor | Rackmount, 1U |
| Fan | 3 x Cooling fans with smart fan |
| USB 2.0 port | 1 |
| USB 3.2 Gen 1 port | 1 |
| Power | Redundant power 300W, 90V~264V AC |
| Intel QAT support | ✓ |
| SR-IOV support | ✓ |
| Intel DPDK support | ✓ |
| Dimension W x D x H (mm) | 430 x 426 x 44.2 mm |
| Processor | Intel Xeon |
|---|---|
| Memory | 32GB |
