APC Galaxy VM 160 kVA UPS Parallel 400-400 V with Backfeed protection, Start up 5×8 – GVMPB160KHS
Brand: APC
AED 145,000.00 excl. VAT
[ratingwidget type="page"]
AED 145,000.00 excl. VAT
Best Price: AED 141,375.00 on Bank Transfer / Cash Payment (-AED 3,625.00)
Estimated delivery between Apr 18, 2026 - Jun 29, 2026
For urgent delivery, please contact sales before ordering. Orders usually ship as per the estimated delivery date in certain case backorders may take 4–12 weeks. Images are for illustration only and may differ from the actual item.

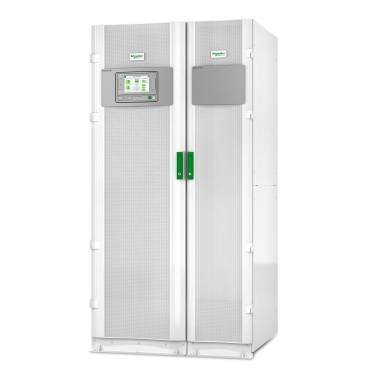

APC Galaxy VM 160 kVA UPS Parallel 400-400 V with Backfeed protection, Start up 5×8 – GVMPB160KHS
Overview
Highly compact, energy efficient 3-phase UPS. To be used with external battery cabinets. Ideal for data centers, facility and industrial applications.
Published on lastbestprice.com
Specifications
Overview |
|
| Presentation | Highly compact, energy efficient 3-phase UPS for data center, facility and industrial applications. to be used with external battery cabinets. Please click here for additional runtime information. |
Main |
|
| Main Input Voltage | 400 V 3 phases |
| Other Input Voltage | 380 V |
| 415 V | |
| Main Output Voltage | 400 V 3 phases |
| Other Output Voltage | 380 V |
| 415 V | |
| Rated power in W | 144 kW |
| rated power in VA | 160 kVA |
| Output connector type | Hard wire 4-wire (3P + E) 1 |
| Hard wire 5-wire (3P + N + E) 1 | |
| Battery type | External battery system |
| Provided equipment | Built-in modbus protocol adapter |
| Dust filter | |
| Installation guide | |
| Integrated network management | |
| Seismic compliance | |
| Top and bottom cable entry | |
| Range of product | Galaxy VM |
| Range compatibility | Galaxy VM |
Batteries & Runtime |
|
| Efficiency | View Efficiency Graph |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery voltage | 480 V |
| Discharge battery voltage | 384 V |
| Max current discharge | 314 A |
| Battery power in VAH | 0 VAh runtime |
| Extended runtime | 0 |
General |
|
| Bypass voltage tolerance | +/- 10 % settable from +/- 4/6/8 and 10 % |
| Max bypass input current | 231 A |
| Bypass current protection | 400 A |
| Redundant | No |
| Product or component type | Uninterruptible power supply (UPS) |
Physical |
|
| Colour | White |
| Height | 197 cm |
| Width | 105.2 cm |
| Depth | 85.4 cm |
| Net weight | 699 kg |
| USB compatible | No |
Input |
|
| Network frequency | 40…70 Hz |
| Number of input connectors | 1 hard wire 3-wire (3P + E) |
| Input voltage limits | 250…600 V adjustable |
| 320…456 V 380 V | |
| 320…480 V 400 V | |
| 320…498 V 415 V | |
| Maximum input current | 262 A |
| Switching current capacity | 400 A |
| Max short time withstand current | 65 kA |
| Input harmonic distortion | Less than 3 % for full load |
| Input protection type | GL fuse |
| Inrush current | 200 A peak |
| Load power factor | 0.5 leading to 0.5 lagging |
| Input Power Factor at Full Load | 1 |
Output |
|
| Maximum configurable power in W | 144 kW |
| Harmonic distortion | Less than 2 % |
| Output frequency | 50/60 Hz +/- 1 Hz sync to mains |
| 50/60 Hz +/- 1 Hz unsynchronised | |
| Crest factor | Unlimited |
| Wave type | Sine wave |
| Output voltage tolerance | +/- 1% static and +/- 3% at 100% load step |
| Output harmonic distortion | < 2% linear load and < 3% non-linear load |
| Output overload operation | 10 minutes at 125% and 60 seconds at 150% |
| Required output current protection | 400 A |
| Neutral output current | 231 A |
| Bypass type | Built-in static bypass |
| Maximum configurable power in VA | 160 kVA |
Conformance |
|
| Product certifications | C-Tick |
| CE | |
| ETL | |
| RCM | |
| Standards | EN/IEC 62040-1 |
| EN/IEC 62040-2 | |
| EN/IEC 62040-3 | |
| IBC 2012 and CBC2013 to Sds=2.02g | |
| OSHPD | |
| UL 1778 | |
| VFI-SS-111 | |
Environmental |
|
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % |
| Operating altitude | 0…3333 ft |
| Ambient air temperature for storage | -25…55 °C |
| Storage Relative Humidity | 0…95 % |
| Storage altitude | 0…14999.8 m |
| Acoustic level | 65 dBA |
| Heat dissipation | 19650 Btu/h |
| IP degree of protection | IP20 |
Communications & Management |
|
| Free slots | 2 |
| control panel | 7″ touch screen display |
| Emergency power off | Yes |
Packing Units |
|
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 215.6 cm |
| Package 1 Width | 106 cm |
| Package 1 Length | 149 cm |
| Package 1 Weight | 744.5 kg |
Contractual warranty |
|
| Warranty | 1 year on-site repair or replace with factory authorized Start-Up |
