Detailed Tech Specs



General Information

Manufacturer

• Dell Technologies

Manufacturer Part Number

• 7PPY6

Brand Name

• Dell

Product Line

• Pro

Product Model

• E2426HS

Product Name

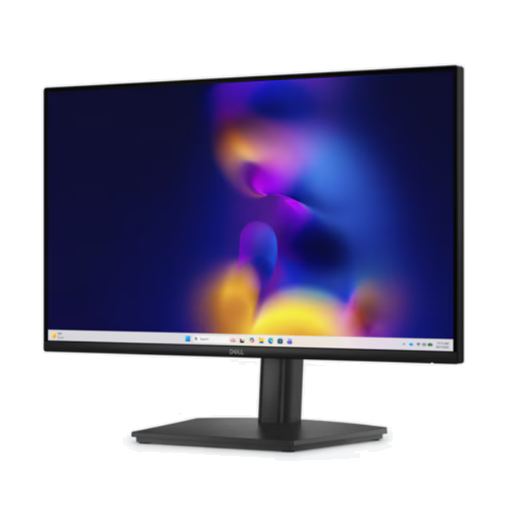

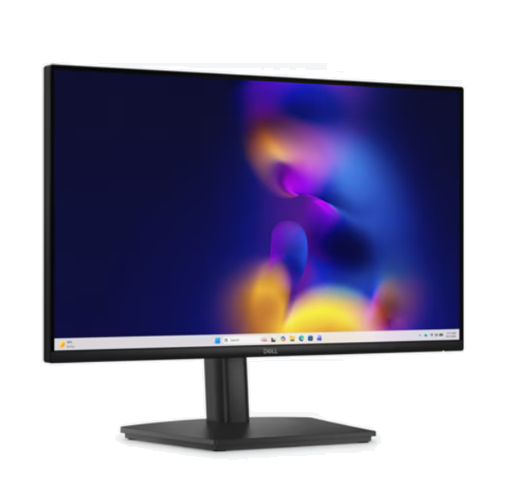

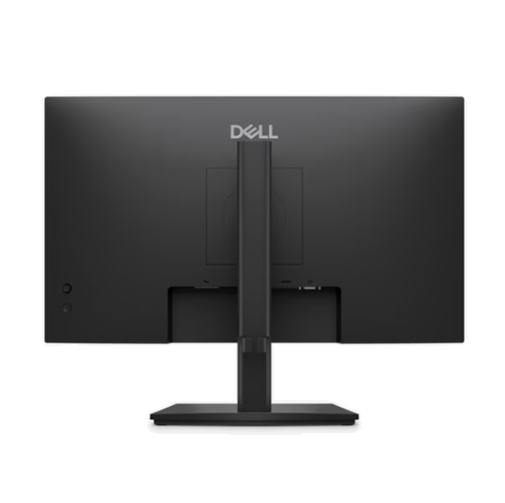

• Pro 24 Adjustable Stand Monitor - E2426HS

Product Type

• LCD Monitor



Technical Information

Number of Screens

• 1

Screen Size Class

• 24"

Viewable Screen Size

• 23.8"

Screen Mode

• Full HD

Display Screen Type

• Flat Panel

Panel Technology

• In-plane Switching (IPS) Technology

Response Time Details

• 5 ms GTG (Fast)
• 8 ms GTG

Aspect Ratio

• 16:9

Pixel Pitch

• 0.27450 mm x 0.27450 mm

Horizontal Viewing Angle

• 178^°

Vertical Viewing Angle

• 178^°

Mount Type

• Panel Mount

HDCP Supported

• Yes

Maximum Adjustable Height

• 5.12"

Tilt Angle

• -5^° to 21^°

Swivel Angle

• -173^° to 173^°

Pivot Angle

• +/-90^°

Features

• Anti-glare
• Arsenic-free Glass
• BFR Free
• Cable Lock Slot
• Eye Comfort Technology
• Flicker-free
• Low Blue Light
• Mercury-free
• PVC Free
• Security Lock

Adjustable Stand

• Yes

Stand Adjustments

• Height
• Pivot
• Slant
• Swivel
• Tilt

Stand Included

• Yes

Stand Type

• Adjustable

Pivot

• Yes

Curved Screen

• No

Glass Hardness

• 3H

Surface Treatment

• Anti-glare

Flicker Free

• Yes



Video

Maximum Resolution

• 1920 x 1080

Standard Refresh Rate

• 120 Hz

Color Supported

• 16.7 Million Colors

Color Depth

• 8-bit (6-bit + FRC)

Native Contrast Ratio

• 1,000:1

Brightness

• 300 Nit

Color Gamut

• 72% NTSC (CIE 1931)

Maximum Preset Resolution

• 1920 x 1080 at 120 Hz

Pixel Per Inch (PPI)

• 93

Resolution Type

• Standard



Audio

Number of Speakers

• 2

Speakers

• Yes

Speaker Output Power

• 2 x 2 W



Interfaces/Ports

Network (RJ-45)

• No

HDMI

• Yes

HDMI Version

• 1.4

USB

• No

VGA

• Yes

DisplayPort

• Yes

Thunderbolt

• No

USB Type-C

• No

Number of HDMI Inputs

• 1

Total Number of HDMI Ports

• 1

Number of DisplayPorts

• 1

Number of VGA Ports

• 1

Number of DisplayPort 1.4 (HDCP 1.4)

• 1

Audio Line In

• No

DVI-D

• No

Audio Line Out

• No

DisplayPort Input

• Yes

DisplayPort Output

• No

Number of HDMI 1.4 (HDCP 1.4)

• 1

USB Type-B

• No

DisplayPort HDCP Version

• HDCP 1.4

HDMI HDCP Version

• HDCP 1.4

RS-232 (Rear)

• No

Thunderbolt Downstream (Rear)

• No

USB Type-A (Front)

• No

USB Type-A (Rear)

• No

USB Type-C (Front)

• No

USB Type-C (Power Delivery) Upstream Supported (Rear)

• No

USB Type-C (Without Power Delivery) Upstream Supported (Rear)

• No

Interface/Port Details

• 1 HDMI port (HDCP 1.4) (Supports up to 1920 x 1080, 120 Hz as specified in HDMI 1.4)
• 1 DisplayPort 1.4 (HDCP 1.4) port
• 1 VGA port



Built-in Devices

Webcam

• No

Microphone

• No



Environmental Conditions

Non-operating Temperature Range

• -4^°F (-20^°C) to 140^°F (60^°C)

Non-operating Humidity Range

• 5% to 90% (Non-condensing)

Maximum Operating Altitude

• 16404 ft

Maximum Non-operating Altitude

• 40000 ft



Power Description

Input Voltage Range

• 100V AC to 240V AC

Operating Power Consumption

• 11.80 W

Standby Power Consumption

• 300 mW

Off-Mode Power Consumption

• 300 mW

Frequency

• 50 Hz
• 60 Hz

Maximum Power Consumption

• 35 W

Voltage Current

• 700 mA

Input Voltage Range/Current Details

• 100 VAC to 240 VAC/50 Hz or 60 Hz ± 3 Hz/0.7 A



Physical Characteristics

VESA Mount Compatible

• Yes

VESA Mount Standard

• 100 x 100

Color Family

• Black

Product Color

• Black

Height

• 12.4"

Width

• 21.2"

Depth

• 2.2"

Height with Stand

• 19.13"

Width with Stand

• 21.21"

Depth with Stand

• 8.33"

Compressed Height with Stand

• 14.01"

Extended Height with Stand

• 19.13"

Bezel Width (Top)

• 0.23"

Bezel Width (Bottom)

• 0.52"

Bezel Width (Left)

• 0.23"

Bezel Width (Right)

• 0.23"

Weight (Approximate)

• 5.40 lb

Stand Height

• 15.75"

Stand Width

• 10.12"

Stand Depth

• 8.33"

Weight with Stand & Cables (Approximate)

• 9.24 lb



Miscellaneous

Package Contents

• Pro 24 Adjustable Stand Monitor - E2426HS
• Stand
• 1 x Power Cable 1.80 m
• 1 x DisplayPort to DisplayPort cable (1.8m)
• QR Card
• Safety, Environmental, and Regulatory Information

Certifications & Standards

• Arsenic-Free glass and Mercury-Free for the panel only
• BFR/PVC reduce monitor (Circuit boards are made from BFR/PVC-free laminates)
• Meets NFPA 99 leakage current requirements.
• Product Safety, EMC, and Environmental Datashee

Platform Supported

• ThinOS
• Windows

Energy Star

• Yes

Country of Origin

• China/Vietnam

TAA Compliant

• No

TCO Certified

• Yes

Eye Comfort Certification

• Yes

Eye Comfort Rating

• 3 Star

Dell Display and Peripheral Manager Compatibility

• Yes

Remote Asset Management

• Dell Display and Peripheral Manager (DDPM)

Cable Type Included

• Power Cable: 1.80 m
• 1 x DisplayPort to DisplayPort cable (1.8 m) for NA and LATAM

Environmentally Friendly

• Yes

Environmental Certification

• China Environmental United Certification Center (CEC)
• Electronic Product Environmental Assessment Tool Climate+ (EPEAT Climate+)
• Electronic Product Environmental Assessment Tool Gold (EPEAT Gold)
• TCO Certified 10.0
• TCO Certified Edge

Energy Efficiency Certification

• China Energy Conservation Program (CECP)
• ENERGY STAR 8.0

Energy Efficiency Compliance

• Energy-related Products Directive (ErP)
• Energy-related Products Directive Lot 5 (ErP Lot 5)
• Korea E-Standby
• Minimum Energy Performance Standards (MEPS)

Environmental Compliance

• China Restriction of Hazardous Substances (China RoHS)
• Eurasian Economic Union Restriction of Hazardous Substances (EAEU RoHS)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)



Warranty

Limited Warranty

• 3 Year

Additional Warranty Information

• 3-Year Advanced Exchange Service
• Advance Exchange Service: If needed, a replacement part or unit is dispatched after completing phone or online diagnosis. A fee applies if the defective unit is not returned. Availability may vary. Additional conditions apply.
