Detailed Tech Specs



General Information

Manufacturer

• Dell Technologies

Manufacturer Part Number

• 47DM8

Brand Name

• Dell

Product Line

• Pro

Product Model

• E2426H

Product Name

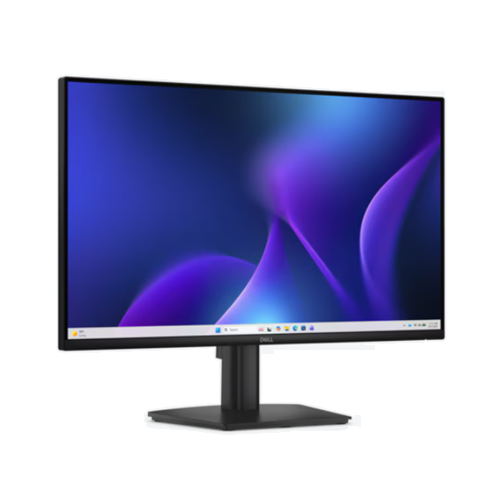

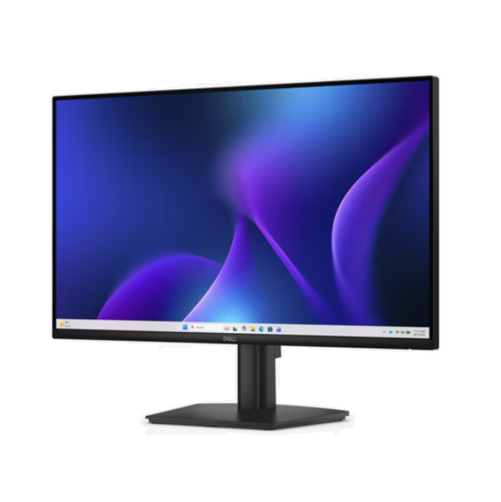

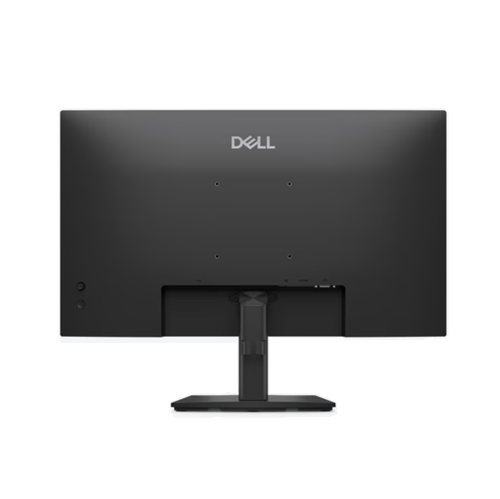

• Pro E2426H Widescreen LCD Monitor

Product Type

• LCD Monitor



Technical Information

Number of Screens

• 1

Screen Size Class

• 24.0" (61.0 cm)

Viewable Screen Size

• 23.8" (60.5 cm)

Screen Mode

• Full HD

Display Screen Type

• Flat Panel

Panel Technology

• In-plane Switching (IPS) Technology

Response Time Details

• 5 ms GTG (Fast)
• 8 ms GTG

Aspect Ratio

• 16:9

Pixel Pitch

• 0.27 mm (0.01") x 0.27 mm (0.01")

Horizontal Viewing Angle

• 178^°

Vertical Viewing Angle

• 178^°

Mount Type

• Panel Mount

HDCP Supported

• Yes

Tilt Angle

• -5^° to 21^°

Features

• Anti-glare
• Arsenic-free Glass
• BFR Free
• Cable Lock Slot
• Eye Comfort Technology
• Flicker-free
• Low Blue Light
• Mercury-free
• PVC Free
• Security Lock

Adjustable Stand

• Yes

Stand Adjustments

• Tilt

Stand Included

• Yes

Stand Type

• Fixed

Pivot

• No

Curved Screen

• No

Glass Hardness

• 3H

Surface Treatment

• Anti-glare

Flicker Free

• Yes



Video

Maximum Resolution

• 1920 x 1080

Standard Refresh Rate

• 120 Hz

Colour Supported

• 16.7 Million Colours

Colour Depth

• 8-bit (6-bit + FRC)

Native Contrast Ratio

• 1,000:1

Brightness

• 300 cd/m²

Color Gamut

• 72% NTSC (CIE 1931)

Calibration Accuracy

• No

Maximum Preset Resolution

• 1920 x 1080 at 120 Hz

Pixel Per Inch (PPI)

• 93



Interfaces/Ports

Network (RJ-45)

• No

HDMI

• Yes

HDMI Version

• 1.4

USB

• No

VGA

• Yes

DisplayPort

• Yes

Thunderbolt

• No

USB Type-C

• No

Number of HDMI Inputs

• 1

Total Number of HDMI Ports

• 1

Number of DisplayPorts

• 1

Number of VGA Ports

• 1

Number of DisplayPort 1.4 (HDCP 1.4)

• 1

Audio Line In

• No

DVI-D

• No

Audio Line Out

• No

DisplayPort Input

• Yes

DisplayPort Output

• No

Number of HDMI 1.4 (HDCP 1.4)

• 1

USB Type-B

• No

DisplayPort HDCP Version

• HDCP 1.4

HDMI HDCP Version

• HDCP 1.4

RS-232 (Rear)

• No

Thunderbolt Downstream (Rear)

• No

USB Type-A (Front)

• No

USB Type-A (Rear)

• No

USB Type-C (Front)

• No

USB Type-C (Power Delivery) Upstream Supported (Rear)

• No

USB Type-C (Without Power Delivery) Upstream Supported (Rear)

• No

Interface/Port Details

• 1 HDMI port (HDCP 1.4) (Supports up to 1920 x 1080, 120 Hz as specified in HDMI 1.4)
• 1 DisplayPort 1.4 (HDCP 1.4) port
• 1 VGA port



Built-in Devices

Webcam

• No

Microphone

• No



Environmental Conditions

Operating Temperature Range

• 0^°C to 40^°C

Non-operating Temperature Range

• -20^°C to 60^°C

Operating Humidity Range

• 10% to 80% (Non-condensing)

Non-operating Humidity Range

• 5% to 90% (Non-condensing)

Maximum Operating Altitude

• 5 km (196800")

Maximum Non-operating Altitude

• 12.19 km (480000")



Power Description

Input Voltage Range

• 100V AC to 240V AC

Operating Power Consumption

• 11.80 W

Standby Power Consumption

• 300 mW

Off-Mode Power Consumption

• 300 mW

Frequency

• 50 Hz
• 60 Hz

Maximum Power Consumption

• 31 W

Voltage Current

• 700 mA

Input Voltage Range/Current Details

• 100 VAC to 240 VAC/50 Hz or 60 Hz ± 3 Hz/0.7 A



Physical Characteristics

VESA Mount Compatible

• Yes

VESA Mount Standard

• 100 x 100

Color Family

• Black

Product Color

• Black

Height

• 31.56 cm (12.43")

Width

• 53.86 cm (21.20")

Depth

• 4.77 cm (1.88")

Height with Stand

• 41.23 cm (16.23")

Width with Stand

• 53.86 cm (21.21")

Depth with Stand

• 17.10 cm (6.73")

Bezel Width (Top)

• 5.80 mm (0.23")

Bezel Width (Bottom)

• 1.33 cm (0.52")

Bezel Width (Left)

• 5.80 mm (0.23")

Bezel Width (Right)

• 5.80 mm (0.23")

Weight (Approximate)

• 2.63 kg

Stand Height

• 17.40 cm (6.85")

Stand Width

• 22.20 cm (8.74")

Stand Depth

• 17.10 cm (6.73")

Weight (with Packaging) with Stand

• 4.52 kg

Weight with Stand & Cables (Approximate)

• 3.20 kg



Miscellaneous

Package Contents

• Pro E2426H Widescreen LCD Monitor
• Stand
• 1 x Power Cable 1.80 m
• 1 x HDMI cable (1.8 m) for EMEA and APJC
• QR Card
• Safety Information

Certifications & Standards

• Arsenic-Free glass and Mercury-Free for the panel only
• BFR/PVC reduce monitor (Circuit boards are made from BFR/PVC-free laminates)
• Meets NFPA 99 leakage current requirements.
• Product Safety, EMC, and Environmental Datashee

Platform Supported

• ThinOS
• Windows

Energy Star

• Yes

Country of Origin

• China/Vietnam

TAA Compliant

• No

TCO Certified

• Yes

Eye Comfort Certification

• Yes

Eye Comfort Rating

• 3 Star

Dell Display and Peripheral Manager Compatibility

• Yes

Remote Asset Management

• Dell Display and Peripheral Manager (DDPM)

Cable Type Included

• 1 x Power Cable 1.80 m
• 1 x HDMI cable (1.8 m) for EMEA and APJC

Environmentally Friendly

• Yes

Environmental Certification

• China Environmental United Certification Center (CEC)
• Electronic Product Environmental Assessment Tool Climate+ (EPEAT Climate+)
• TCO Certified 10.0
• TCO Certified Edge

Energy Efficiency Certification

• China Energy Conservation Program (CECP)
• ENERGY STAR 8.0

Energy Efficiency Compliance

• Energy-related Products Directive (ErP)
• Energy-related Products Directive Lot 5 (ErP Lot 5)
• Minimum Energy Performance Standards (MEPS)

Environmental Compliance

• Eurasian Economic Union Restriction of Hazardous Substances (EAEU RoHS)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)

Regulatory Declaration

• Importer: Dell International Services India Private Limited Crystal Downs, Survey no. 7/1, 7/2, 7/3, Embassy Golf Links Business Park, Off-Intermediate Ring Road, Domlur, Challaghatta Village, Varthur Hobli, Bengaluru-560071, Karnataka, India
• Manufacturer Country of Origin: China and Vietnam
• Product Type: Monitor
• Net Quantity: 1
• Consumer Complaints: grievanceofficer@dell.com



Warranty

Limited Warranty

• 3 Year

Additional Warranty Information

• 3-Year Advanced Exchange Service
