QNAP 24-Bay NAS Intel Xeon E-2136 16GB DDR4 24×2.5″/3.5″ SATA HDD/SSD 4 GigaLan 2x10GbE SFP+ SmartNIC 800W redundant power supply – TS-2483XU-RP-E2136-16G
Intel® Xeon® E processor, extraordinary performance
The TS-2483XU-RP features an Intel® Xeon® E-2136 six-core 3.3 GHz processor (burst up to 4.5 GHz), 16 GB DDR4 ECC memory (upgradable to 128 GB), and redundant power supply, delivering server-grade performance and dependable reliability for rugged enterprise IT environments as a cost-efficient NAS solution. Besides 4 Gigabit RJ45 LAN ports, the TS-2483XU-RP comes with two 10GbE SFP+ SmartNIC LAN ports to provide a significant performance boost.
Virtualization Certifications Supported by TS-2483XU-RP

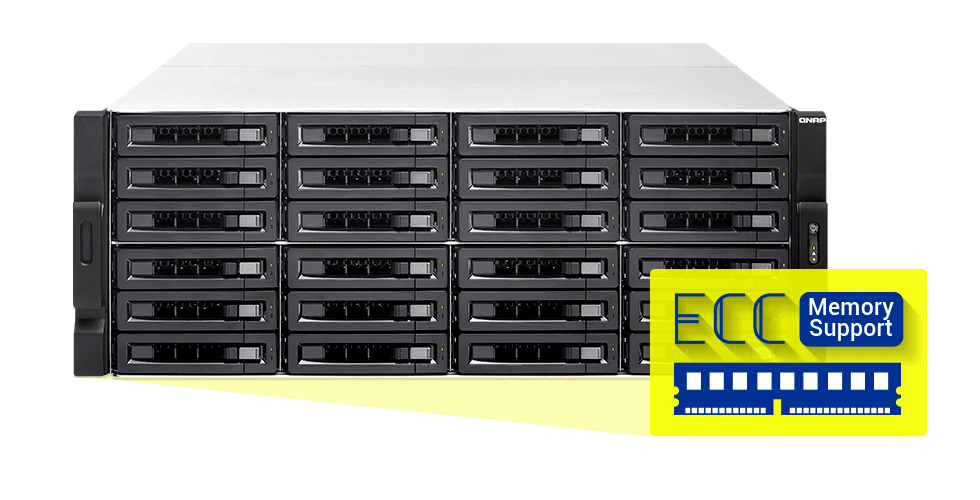

ECC memory forestalls data corruption to assure reliability
The Intel® Xeon® E based TS-2483XU-RP uses ECC memory that can detect and correct single-bit memory errors as they occur to prevent downtime and data loss, which is essential for always-on, mission-critical, server-grade applications. The TS-2483XU-RP supports dual-channel DDR4 memory in four Long-DIMM slots. When using paired memory modules, the TS-2483XU-RP can leverage the power of dual-channel architecture to boost performance. You also customize the memory configuration (supports up to 128 GB RAM) of the TS-2483XU-RP for greater performance to tackle dynamically-changing workloads such as virtualization.
Server-grade hardware: Sturdy and expandable
The TS-2483XU-RP features outstanding hardware and expandable architecture, enabling optimum performance and flexibility to fulfill business needs in performance and application diversification.
1. Intel® Xeon® E processor
High-performance Intel® Xeon® E-2136 6 cores/12 threads 3.3 GHz processor
2. DDR4 ECC memory
Supports four DDR4 dual-channel Long-DIMM memory modules for a maximum of 128 GB RAM.
3. 4x Gigabit Ethernet ports
Ideal for service binding, port trunking and MPIO configurations.
4. USB 3.2 Gen 2 ports
Includes two Type-C USB 3.2 Gen 2 10Gbps ports and four Type-A USB 3.2 Gen 2 10Gbps ports to greatly boost data transfer speeds. Supports external hard drives, printers and UPS.
5. 5x PCIe expansion slots
Supports SAS expansion cards, graphics cards, 10GbE/ 25GbE/ 40GbE network cards and QM2 cards for greater application potential (one slot comes with a pre-installed 10GbE adapter).
6. System fans
Monitors system temperatures and automatically adjusts fan speeds accordingly.
7. Power supply unit
Redundant 800W power supplies ensure continuous system uptime.
8. 2x 10GbE SFP+ ports
Uses a SmartNIC with iSER support. Fully supports 10GbE networks and is ideal for running bandwidth-demanding applications such as virtualization and fast backup/restoration.
Dual 10GbE connectivity optimizes high-speed data transfer and VMware virtualization with iSER
The TS-2483XU-RP provides two 10GbE SFP+ ports that use the SmartNIC controller. They support the iSCSI Extensions for RDMA (iSER) protocol, allowing data to bypass general network drivers, the socket layer, and to directly enter memory buffers of the ESXi server and storage to offload CPU workloads. When both the VMware® server and the TS-2483XU-RP support iSER, it can provide up to 60% increased random read/write performance and 50% decreased latency, providing an essential tool to optimize demanding virtualization applications.
Recommended usage of PCIe slots

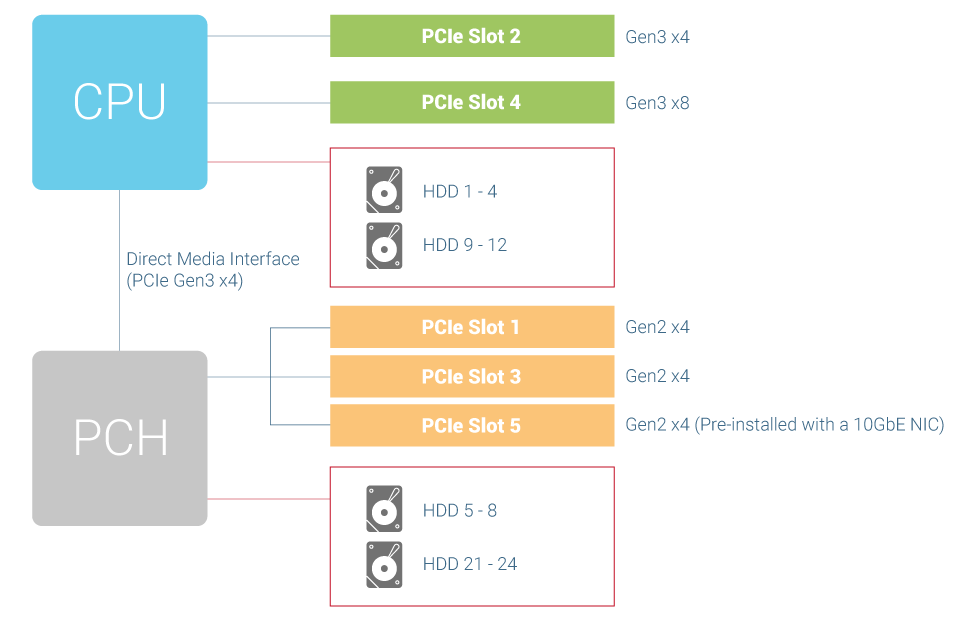

The TS-2483XU-RP provides multiple PCIe slots. To ensure that the SATA drives have sufficient bandwidth, it is recommended to only use low-end expansion cards, (such as a 1GbE NIC, USB 3.2 Gen 1 card, or Wi-Fi adapter) with the PCIe Gen2 slot (Slot 1, 3, 5) as this slot is connected to the PCH. For high-end expansion cards (including 10GbE/40GbE NICs, SAS cards, Mustang-200 acceleration card, and graphics cards), it is recommended to use PCIe Gen3 slots (Slot 2, 4) as these slots are connected to the CPU.
Abundant I/O capability with PCIe expansion
The TS-2483XU-RP features 5 PCIe slots that allow for the usage of various expansion cards to expand application potential.
Note: 1U, 2U rackmount models use low-profile graphics cards; 3U, 4U rackmount models use high-profile graphics cards.
40GbE/ 25GbE/ 10GbE network cards
Enable lightning-fast throughput for bandwidth-demanding tasks such as virtualization, massive data transmission, and fast backup/restoration.
QM2 M.2 SSD/10GbE cards
Add M.2 SSD caching or 10GbE (10GBASE-T) connectivity to the NAS for optimized performance and bandwidth.
SAS expansion cards
Designed for connecting the TS-2483XU-RP to REXP expansion units to increase storage capacity by adding up to 128 SAS/SATA drives.

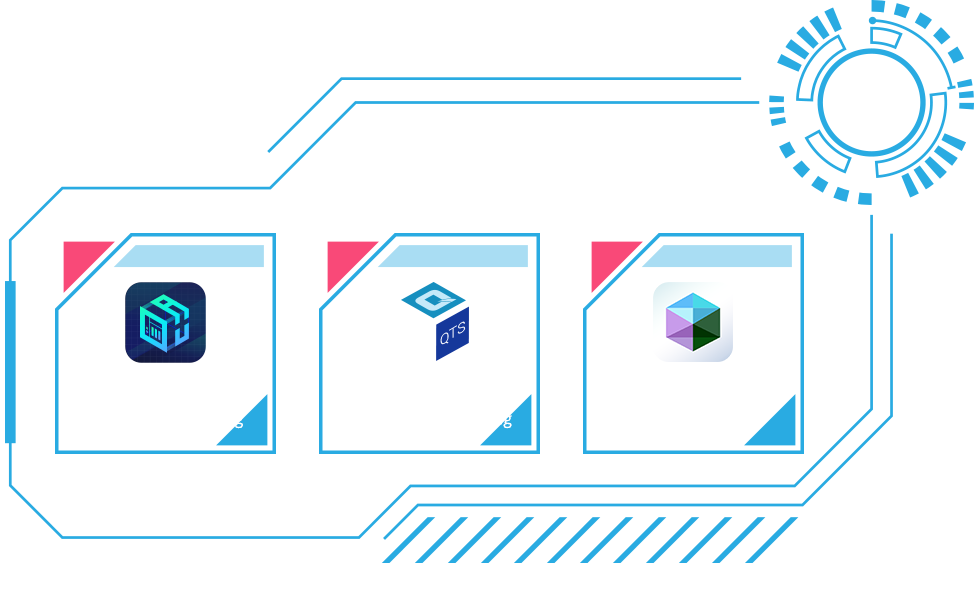

Empower GPU-accelerated computing with graphics cards
Graphics cards are optimized for graphical calculations and transformations. The TS-2483XU-RP provides PCIe slots for installing an AMD Radeon™ or NVIDIA® graphics card to boost data-intensive AI machine learning, while also providing benefits for imaging processing and virtual machine performance (via GPU passthrough).
1. 3U/4U models support high-profile graphics cards that require external power; 1U/2U models support low-profile graphics cards that do not require additional external power (For example, the NVIDIA GT1030).
2. GPU support for QTS only applies to NVIDIA graphics cards. GPU Passthrough for VM is supported by AMD and NVIDIA graphics cards.
3. When Virtualization Station uses graphics cards, the NAS will temporarily stop hardware transcoding acceleration for QTS (and vice versa).
4. Always consult the Compatibility List for supported NAS and graphics cards before purchasing a graphics card for the NAS.
Recommended PCIe slots for graphics cards and supported dimensions
|TS-x83XU Series||Power Supply||PCIe Slot||Dimensions (W x H x L) (mm)|
|TS-2483XU-RP||800W (x2)||Slot 2||55 x 138 x 312|
SSD caching and auto tiering enable 24/7 optimized storage efficiency
By enabling Qtier™ auto-tiering on the TS-2483XU-RP, organizations can just buy the amount of SSDs needed, and attain the highest value/performance and optimal storage efficiency for data storage and sharing.
Improve random data access speeds with an SSD cache
SSD caches accelerate IOPS performance and reduce latency for storage volumes. They are perfect for IOPS-demanding applications (including databases and virtualization) and can significantly improve overall workflows. The TS-2483XU-RP also supports write-only SSD caches to greatly boost write-intensive applications and also RAID 5/6 SSD caches for higher performance and caching space.
Maximize the value of SSDs with Qtier Technology
Qtier™ Technology empowers the TS-2483XU-RP with auto tiering that helps continuously optimize storage efficiency by automatically moving data between 2.5-inch SSDs and high-capacity HDDs based on the data’s access frequency. Qtier™ 2.0 features IO-awareness that empowers SSD-tiered storage with a cache-like reserved space to handle burst I/O in real time, greatly maximizing the advantages of SSDs.
Attain enterprise-grade SSD performance levels from affordable consumer SSDs
The TS-2483XU-RP supports software-defined SSD extra over-provisioning (OP) that allows you to allocate additional OP space (from 1% to 60%) to optimize random write speeds and to extend SSD lifespan. Now you can use affordable consumer SSDs for the TS-2483XU-RP, adjust the SSD OP, and potentially attain performance and endurance levels similar to enterprise-grade SSDs to enjoy faster file backups, smoother multimedia experiences, and optimized virtualization applications.
|Scenario||File Server||Web, Application, Virtualization Server||Synchronization, Video Editing||Surveillance, Backup, Log Server||Business Critical Database|
|SSD Configuration||Qtier||Qtier||Read Write Cache||Write-Only Cache||SSD RAID|
|SSD RAID||RAID 6||RAID 10||RAID 5||RAID 10||RAID 10|
QuDedup technology deduplicates data at the source, helping to reduce the time and storage space needed for backup.
Seamlessly connect local storage with cloud object storage to easily backup local application data to the cloud.
Enabling local caching on NAS for low-latency access to the connected cloud services.
Integrated AI algorithm for auto photo organization and a powerful search tool for more intuitive and streamlined photo management.
Build an affordable Fibre Channel SAN environment
Common Fibre Channel SAN (Storage Area Networks) devices are often expensive. Now you have more budge-friendly options to easily add your NAS to a SAN environment. Once a Marvell®, ATTO® or QNAP Fibre Channel card has been installed in the TS-2483XU-RP, you can set a Fibre Channel Target using the iSCSI & Fibre Channel app, and leverage the many benefits from QNAP NAS including snapshot protection, Qtier™ tiering storage, SSD cache acceleration and more. In addition, the LUN Masking and Port Binding features provide an additional layer of security for your data.

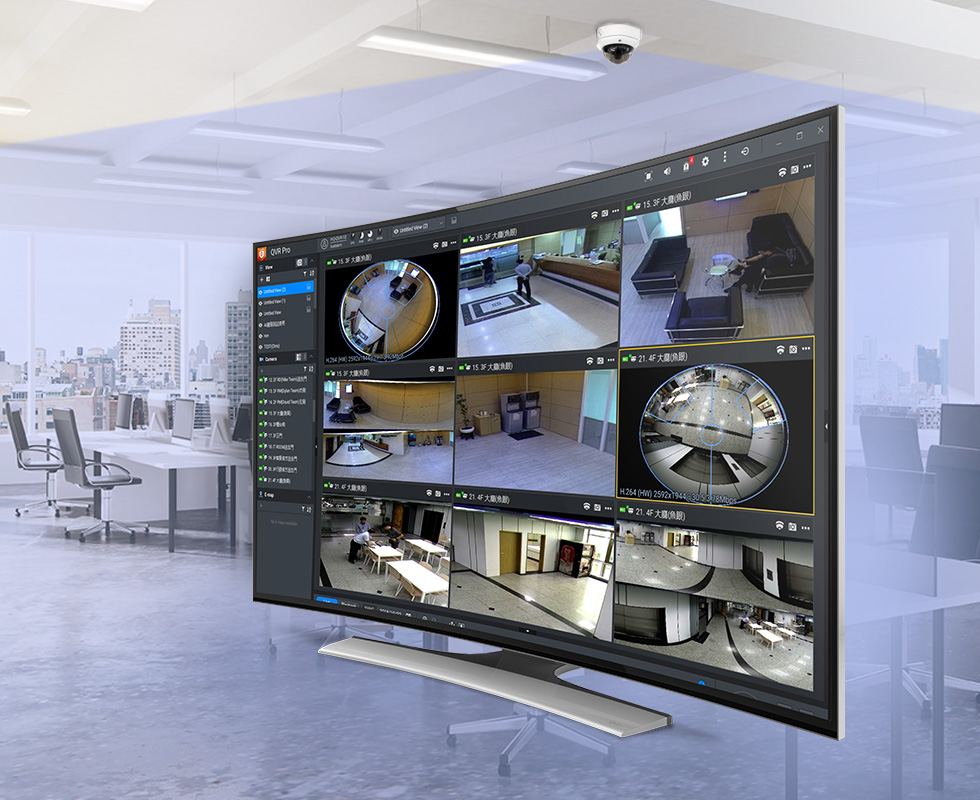

Up to 128 monitoring channels in QVR Pro for well-rounded security surveillance
The TS-2483XU-RP supports QVR Pro surveillance solution with 8 license-free channels for surveillance monitoring, which can be expanded up to 128 channels* with additional channel license purchase for a more extensive security deployment. QVR Pro supports over 5,000 IP cameras, including all of the standard fisheye cameras available on the market. There are more advanced features for fully unleashing the potential of fisheye cameras: allowing a single fisheye camera’s image to be simultaneously viewed in nine channels from different angles, and cross-platform hardware-accelerated decoding for fisheye camera images. QVR Pro ensures higher surveillance performance for greater security while providing deployment flexibility and budget-savings.
*The maximum number of channels supported varies by NAS model, network configuration, and camera settings. For more information, visit https://www.qnap.com/go/qvr-nas-selector

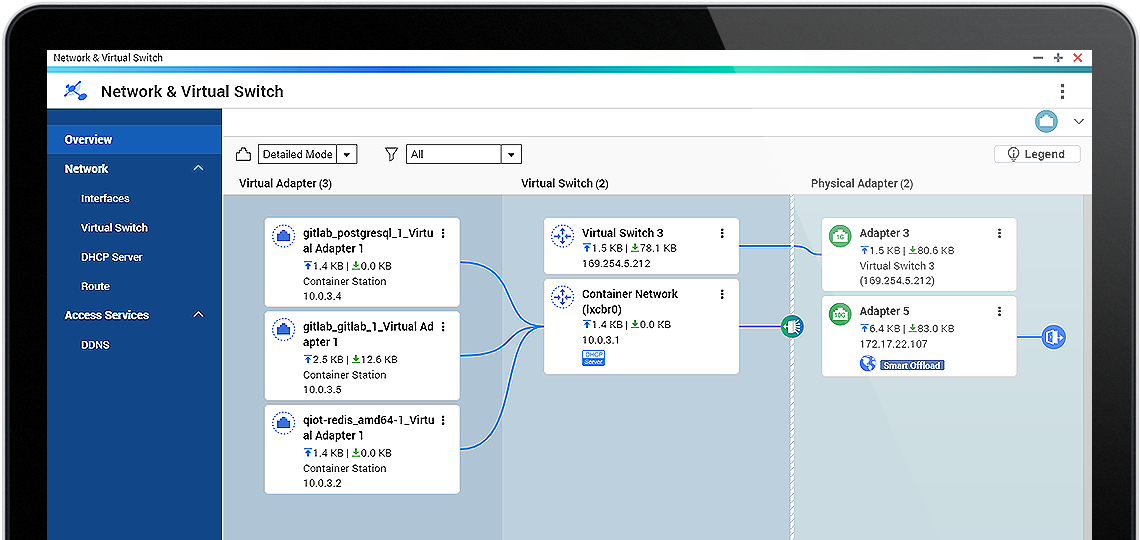

Flexibly allocate physical and virtual network resources to simplify network deployment
The Network & Virtual Switch application allows you to leverage limited physical network resources for unlimited virtual applications and centrally manage the entire network structure with a brilliantly-visualized network topology map. Flexible manageability enables you to reorganize physical and virtual network connections with greater ease, so you can allocate adequate network resources to the TS-2483XU-RP, virtual machines and containers whenever needed. The network deployment is greatly simplified while your network management efficiency is greatly improved.
Complete backup planning
The TS-2483XU-RP provides a reliable, flexible backup & disaster recovery solution to assist organizations in routine backup jobs with cost-efficiency and high productivity.
Snapshots for Volume & LUN
Snapshots are essential for NAS data protection, and their block-level feature makes them a dependable method for protecting data in the face of the growing threat of ransomware. The TS-2483XU-RP supports up to 256 snapshots per volume/LUN, and up to 1,024 snapshots per NAS.
Hybrid Backup Sync
Consolidates backup, restoration and synchronization functions (using RTRR, rsync, FTP, CIFS/SMB) for easily transferring data to local, remote and cloud storage spaces as a comprehensive data storage and disaster recovery plan.
With high performance, potentially huge storage capacities, integrated virtualization solutions, and support for snapshots that record the state of the system at any time, the TS-2483XU-RP is perfect for backing up virtual machines.
Windows and Mac backup
Use the license-free QNAP NetBak Replicator utility to back up/restore files from Windows® computers. Time Machine® is fully supported for backing up Mac® computers.
High-speed VM Backup Solution
With Hyper Data Protector, the TS-2483XU-RP becomes an agentless backup tool for unlimited VMware® vSphere and Microsoft® Hyper-V VM backup. Hyper Data Protector features incremental backup, global deduplication, backup scheduling and recovery compression that provides you with a cost-effective and reliable disaster recovery plan, ensuring 24/7 operation of your services.
Notes: QNAP NAS must be running QTS version 4.3.6 or later
Block-based iSCSI LUN: Ideal choice for virtualization storage
The TS-2483XU-RP supports block-based iSCSI LUN that provides a more reliable and isolated environment than file-based LUN. Supporting VMware®, Citrix®, Microsoft® Hyper-V® and Windows Server® 2016, the TS-2483XU-RP provides a high-performance, reliable and affordable storage solution for virtualization environments, while also supporting VMware VAAI and Microsoft ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively, and supporting QNAP vSphere Client plug-in and QNAP SMI-S provider with enhanced operational efficiency and management in virtualization applications.
Complete control over system status and data security

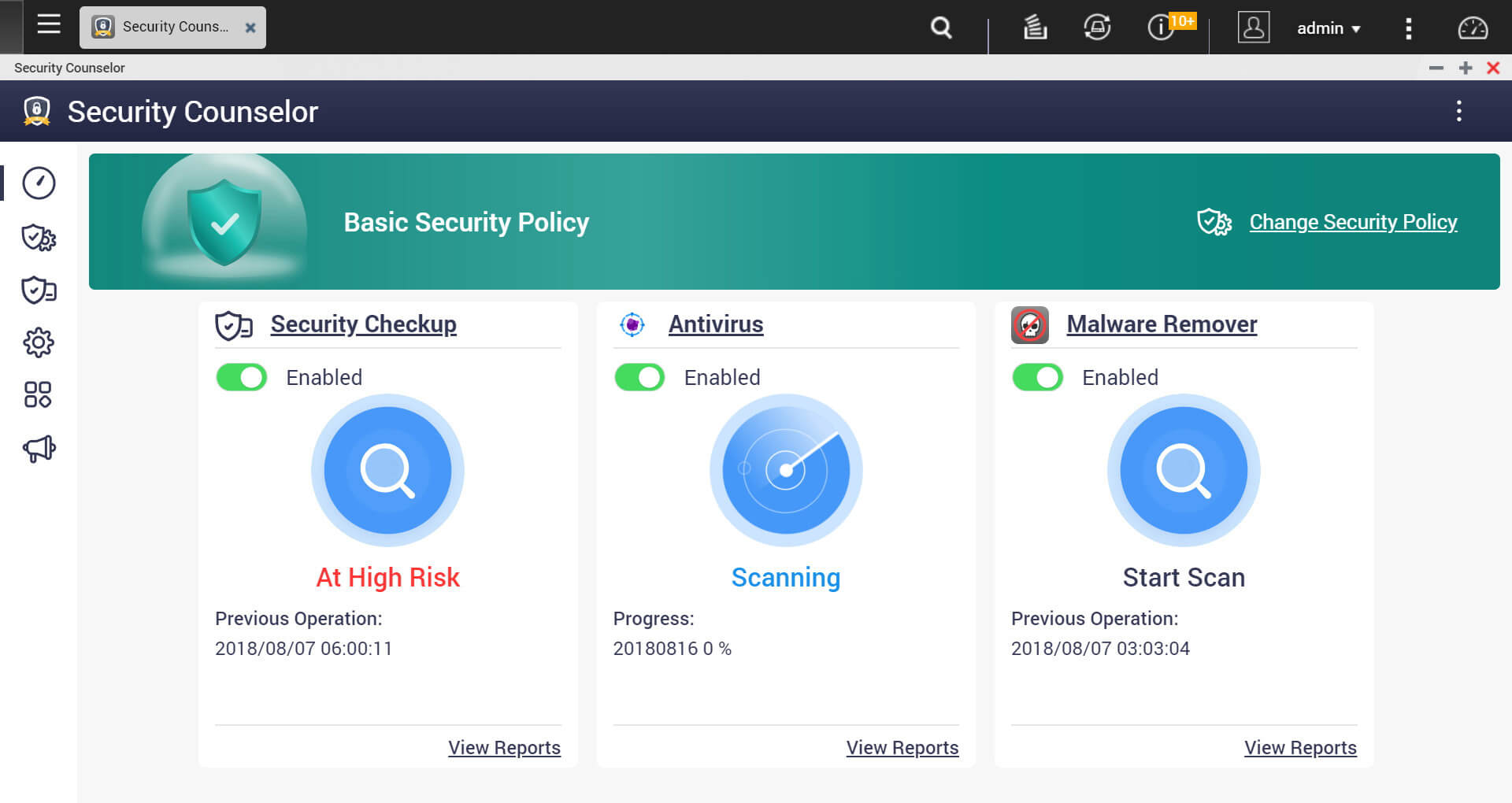

In open network environments, data on connected devices may be exposed in a potential hack. The TS-2483XU-RP provides numerous security options, such as encrypted access, IP blocking, 2-step verification, and more. Administrators can also control the access rights of each user to different folders, and use the following tools to enhance security management.
Checks for NAS weaknesses and offers recommendations to secure your data against multiple attack methods. It also integrates anti-virus and anti-malware solutions to assist you in protecting your NAS.

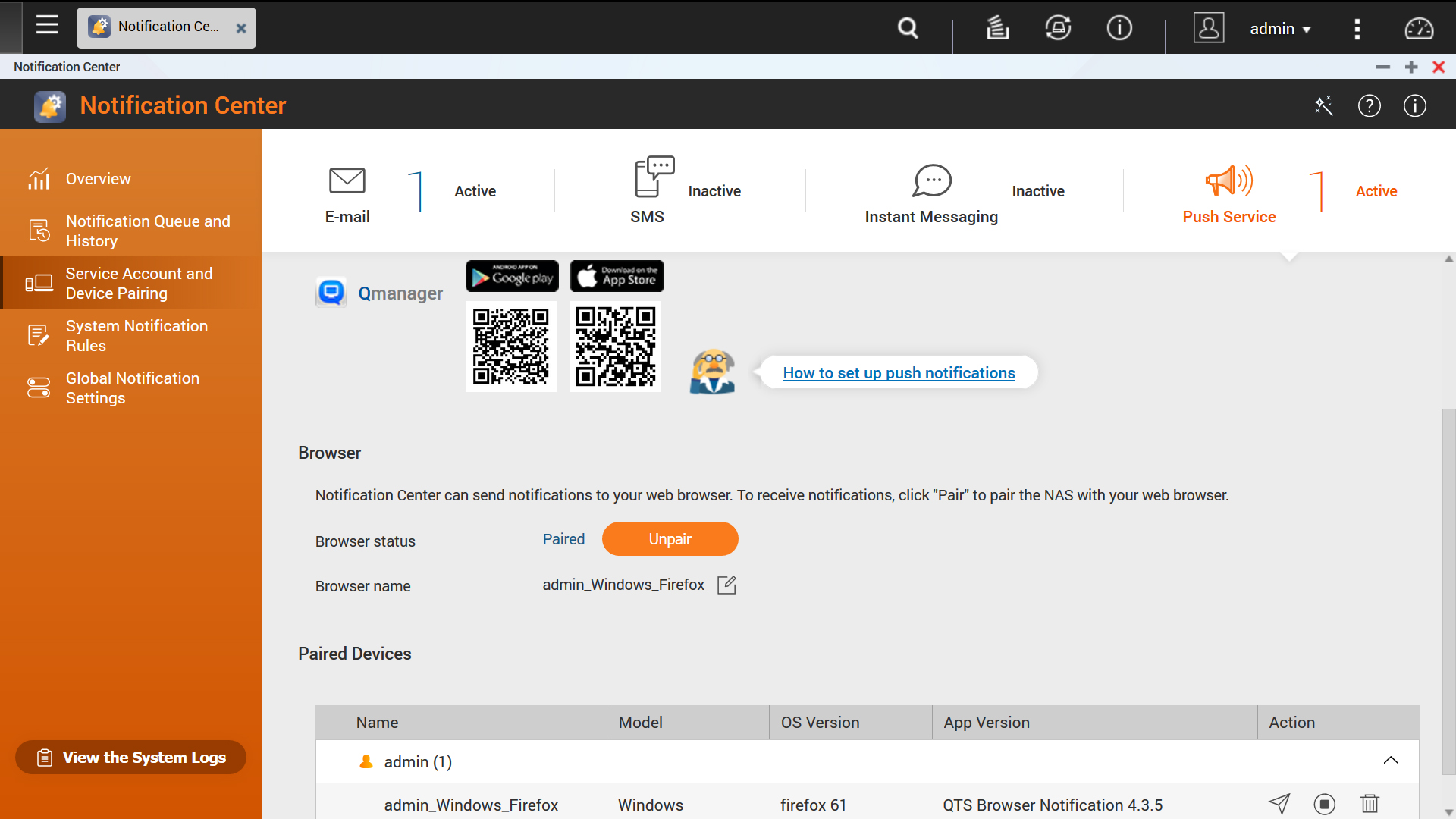

Consolidates all of the QTS system logs, events, and alerts, providing you with a single-app solution for notifications instead of having to configure individual settings in multiple apps.
Flexible and economical storage expansion
QNAP provides several ways to expand your NAS storage as needed to accommodate data and business growth.
Attach Expansion Enclosures
Use VJBOD (Virtual JBOD) to expand your storage capacity by using the unused storage of other QNAP NAS. Up to 8 QNAP NAS can be mounted as local disks on the TS-2483XU-RP.
Upgrade RAID Capacity
Hot swap lower-capacity drives with larger-capacity drives so that your QNAP NAS can grow with your business.
Migrate to a New NAS
Install your NAS hard drives into a larger QNAP NAS and retain all your existing data and configurations.
More productivity applications
A full-text search engine that helps quickly find specific images, music, videos, documents, and emails by using keywords and search conditions.
Centrally manage and switch between different email accounts, back up emails to the NAS, and safeguard email security and personal privacy.
Enable remote access through NAS browsers to access local LAN resources without requiring complex VPN settings.
Short Tech Specification
|24-Bay NAS, Intel® Xeon® E-2136 quad-core 3.3 GHz processor (burst up to 4.5 GHz), 16 GB UDIMM DDR4 (2 x 8GB), 24x 2.5″/3.5″ SATA HDD/SSD, 4 GigaLan, 2 x 10GbE SFP+ SmartNIC, 800W redundant power supply|
Detailed Tech Specification
|CPU||Intel® Xeon® E E-2136 6-core / 12-thread processor|
|CPU Architecture||64-bit x86|
|Floating Point Unit||✓|
|Encryption Engine||✓ (AES-NI)|
|System Memory||16 GB UDIMM DDR4 ECC (2 x 8GB)|
|Maximum Memory||128 GB (4 x 32 GB)|
|Memory Slot||4 x UDIMM DDR4|
|Flash Memory||5GB (Dual boot OS protection)|
|Drive Bay||24 x 3.5-inch SATA 6Gb/s, 3Gb/s|
|Drive Compatibility||3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
|SSD Cache Acceleration Support||✓|
|Gigabit Ethernet Port (RJ45)||4|
|10 Gigabit Ethernet Port||2 x 10GbE SFP+ SmartNIC port|
|Wake on LAN (WOL)||✓|
Slot 1: PCIe Gen 2 x4 (PCH)
Slot 2: PCIe Gen 3 x4 (CPU)
Slot 3: PCIe Gen 2 x4 (PCH)
Slot 4: PCIe Gen 3 x8 (CPU)
Slot 5: PCIe Gen 2 x4 (PCH)
Slot 5 is preinstalled with a 10GbE network adapter
|USB 3.2 Gen 2 (10Gbps) Port||2 x Type-C USB 3.2 Gen 2 10Gbps
4 x Type-A USB 3.2 Gen 2 10Gbps
|Form Factor||4U Rackmount|
|LED Indicators||HDD 1-24, Status, LAN, storage expansion port status|
|Dimensions (HxWxD)||176.15 × 481.04 × 672.02 mm|
|Weight (Net)||20.67 kg|
|Weight (Gross)||28.56 kg|
|Operating Temperature||0 – 40 °C (32°F – 104°F)|
|Storage Temperature||-20 – 70°C (-4°F – 158°F)|
|Relative Humidity||5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)|
|Power Supply Unit||800W(x2), 100-240V|
|Power Consumption: Operating Mode, Typical||168.97 W
Tested with drives fully populated.
|Fan||System fan: 4 x 92mm, 12VDC|
|Max. Number of Concurrent Connections (CIFS) – with Max. Memory||10000|
