QNAP 8-Bay NAS AMD Ryzen 3600 8GB DDR4 8×2.5″/3.5″ SATA HDD/SSD 2xGbE LAN 2x10GbE SFP+ USB. 3.1/3.0 4xPCIe expansion slot 500W redundant power supply QVR Pro free 8 & max 128 channels optional graphics card support – TS-877XU-RP-3600-8G





ts-877xu-rp

TS-877XU-RP

Ryzen™-based rackmount NAS with up to 6 cores/12 threads and integrated dual 10GbE SFP+ ports to optimize system performance



Overview



Features

Powered by AMD’s powerful Ryzen™ processor, the TS-877XU-RP is capable of boosting virtual machine performance with up to 6 cores/12 threads and Turbo Core up to 3.9 GHz. Four PCIe Gen.3 slots provides expandability to provide more potential applications and functionality for the TS-877XU-RP. The TS-877XU-RP also features a redundant power supply to ensure maximum system uptime.

amd-ryzen-5  amd-ryzen-3  vm-ready  citrix-ready  veeam_ready  windows_2016

1. Two 10GbE SFP+ ports provide higher bandwidth to empower applications like virtualization, 4K video editing and file sharing.

2. PCIe expandability allows for installing 10GbE/40GbE adapters, PCIe NVMe SSD, graphics cards, USB 3.2 Gen 2 (10Gbps) cards, or wireless network cards.

3. Supports AMD Radeon™ and NVIDIA® graphics cards for video processing or GPU-passthrough to VMs.

4. Qtier™ technology and SSD caching enable 24/7 optimized storage efficiency.

5. Scalable storage supporting virtualization, containerized apps, centralized storage, backup, sharing, and disaster recovery.

6. RAID 50/60 is recommended for NAS with over 6 disks to strike a balance between capacity, protection, and performance

Top-class hardware engineering with high I/O expandability

The hardware design of the TS-877XU-RP provides exceptional system performance and expandability to fulfill diverse application requirements.

1. Multi-core AMD Ryzen™ processor

TS-877XU-RP-3600-8G: Featuring a 6-core/12-thread Ryzen™ 5 3600 3.6 GHz processor with Turbo Core up to 4.2 GHz.

2. DDR4 2400 MHz memory

Supports four DDR4 dual-channel Long-DIMM memory (expandable up to 64GB).Includes 4GB/8GB RAM as standard.

3. 2 x 10GbE SFP+ ports

Fully supports 10GbE high-speed networks, ideal for running bandwidth-demanding applications.

4. USB 3.2 Gen 1/ 3.1 ports

Supports external hard drives, printers and UPS. USB 3.2 Gen 2 provides speeds up to 10Gb/s to greatly boost data transfer performance.

5. 2 x Gigabit Ethernet ports

Ideal for service binding, port trunking and MPIO configurations.

6. 4 x PCIe expansion slots

Supports 10GbE/40GbE network cards, QM2 M.2 SSD/10GbE PCIe cards, or wireless network cards for greater application potential.

7. Dual 7cm System fans

Monitors system temperatures and automatically adjusts fan speeds accordingly.

8. 2 x 300W Power Supply Units

Redundant power supplies are provided on both new models to ensure continuous system up-time

Virtualization Certifications Supported by TS-877XU-RP

Check QNAP NAS with Support for Virtualization application

Absolute performance with AMD Ryzen™ and up to 64GB RAM

Powered by a high-performance AMD Ryzen™ 5 2600 or AMD Ryzen™ 3 1200 processor with AES-NI encryption acceleration and up to 64GB DDR4 RAM, the TS-877XU-RP delivers aggressive yet power-smart performance to meet your multitasking demands. For resource-demanding business applications such as VDI, R&D, private cloud, and server virtualization, look no further than the TS-877XU-RP.

Dual-channel Memory to deliver power-smart performance

The TS-877XU-RP supports dual-channel DDR-4 memory and four Long-DIMM slots. When using paired memory modules, the TS-877XU-RP can leverage the power of dual-channel architecture to boost performance. You also customize the memory configuration (supports up to 64GB RAM) of the TS-877XU-RP, making it the most ideal and cost-efficient storage solution for environments like virtualization that contain dynamically-changing workloads.

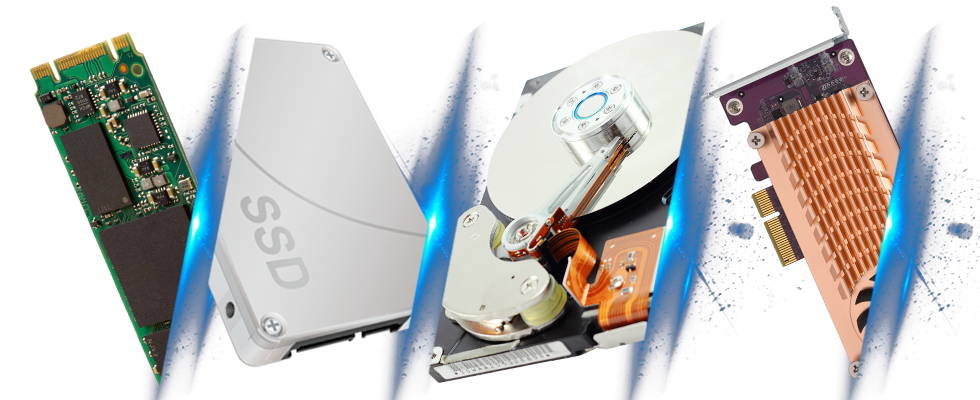

Extend NAS functionality with PCIe slots

The TS-877XU-RP features four PCIe slots* that allow for installing 10GbE/40GbE network cards, QM2 M.2 SSD/10GbE PCIe cards, or compatible wireless network cards for greater application potential.

10GbE/ 40GbE adapters

Install 10GbE/40GbE adapters to support lightning-fast throughput for bandwidth-demanding tasks such as virtualization and fast backup/restoration for an ever-growing amount of data.

* Slot 3 provides the width of PCIe Gen.3 x8 when slot 4 is not in use. Slot 3 then provides the width of PCIe Gen.3 x4 only when an expansion board is installed in slot 4.

QM2 card with M.2 SSD/10GbE support

Install QNAP’s innovative QM2 card to add M.2 SSD caching or 10GbE (10GBASE-T) connectivity to the NAS to enjoy optimal performance.

Wireless network cards

Install QNAP’s wireless network card (QWA-AC2600) to work with WirelessAP Station to transform the NAS into a convenient wireless base station, allowing network resources of the NAS to be shared with multiple devices.

Flexible PCIe expansion options

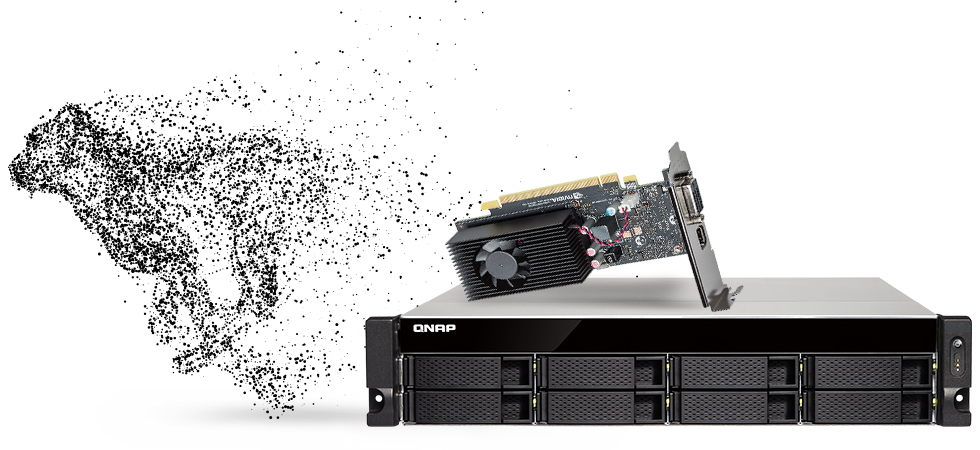

Install a graphics card for GPU-accelerated computing

Graphics cards are optimized for graphical calculations and transformations, but require significantly more power than other hardware. The TS-877XU-RP offers a 300 watt power supply and PCIe slots to support low-profile graphics cards that do not need power cables, including AMD Radeon™ or NVIDIA® GeForce® graphics cards to boost performance of applications such as video editing , 4K UHD transcoding, imaging processing in QTS and performance of virtual machines via GPU passthrough.

NOTE :
1. Supported video formats depend on the hardware and software specifications of the devices. Playback capability and quality may vary due to factors including the original file formats/quality, hardware and software limitations, and output devices.
2. GPU support for QTS only applies to NVIDIA graphics cards. GPU Passthrough for VM is supported by AMD and NVIDIA graphics cards.
3. When Virtualization Station uses graphics cards, the NAS will temporarily stop hardware transcoding acceleration for QTS (and vice versa).
4. The TS-877XU-RP supports graphics cards with dimensions up to 214 x 37 x 68.9 mm. Learn More
5. Consult the Compatibility List for information on supported NAS and graphics cards.
6. Users are advised to install graphics card in Slot 3, as it can provide the bandwidth of PCIe Gen.3 x8 when slot 4 is not in use.

GPU-accelerated NAS for AI machine learning

The TS-877XU-RP provides cutting-edge capabilities to help organizations develop cost-efficient AI-oriented Big Data storage solutions. Combined with a high-end graphics card and QNAP’s “QuAI” AI developer package, the AMD Ryzen-based TS-877XU-RP can be leveraged to quickly build, train, and optimize AI model-based services, beneficial for exploring intelligent services and greater business value.

Extend hardware warranty up to 5 years

The TS-877XU-RP is backed by a 3-year warranty at no extra cost. If needed, you can purchase a warranty extension that increases your coverage up to 5 years.

SSD caching and auto tiering enable 24/7 optimized storage efficiency

The TS-877XU-RP provides four PCIe slots that allow for installing QNAP’s innovative QM2 cards to add M.2 SSD applications ,such as SSD caching, to the NAS. Using an SSD cache boosts overall system performance, and is perfect for improving the overall workflow of random IOPS demanding applications such as virtualization. Qtier™ Technology empowers the TS-877XU-RP with auto tiering that further helps continuously optimize storage efficiency across M.2 SSD, SSD, high-capacity SATA drives, and the optional PCIe NVMe SSD with around-the-clock acceleration. The new Qtier™ 2.0 features IO-awareness that empowers SSD tiered storage with a cache-like reserved space to handle burst I/O in real time, greatly maximizing the advantages of SSD.

Note : M.2 SSD sold separately. M.2 SSD operations can easily generate excessive heat, and it is recommended to install a heatsink (from QNAP or a third-party provider) on M.2 SSD.

Performance & reliability. Your wise choice.

The TS-877XU-RP supports advanced business features to provide maximized efficiency, performance, and to ensure round-the-clock services.

RAID 50/60

When using a NAS with over 6 disk bays, RAID 50/60 not only provides greater data protection and random write performance than a single RAID 5/6, but also maximizes usable storage compared to RAID 10.

USB 3.2 Gen 2

USB 3.2 Gen 2 (10Gbps) provides speeds up to 10Gb/s (double the speed of USB 3.2 Gen 1) to greatly boost data transfer performance. The TS-877XU-RP comes with a USB 3.2 Gen 2 Type-C and a Type-A port, providing greater flexibility and ensuring future-proof compatibility with new USB devices.

Central management

Designed for IT administrators, QRM+ provides a single-point solution to discover, map, monitor and manage all Windows®, Linux® and IPMI devices in your network, and facilitates device discovery with a graphical topology diagram.

Optimized performance for VMware Virtualization with iSER

With the built-in dual 10GbE ports that natively features NVIDIA® Mellanox ConnectX-4, the TS-877XU-RP supports the iSCSI Extensions for RDMA (iSER) protocol to boost data transfer performance of the TS-877XU-RP as VMware® ESXi storage and to reduce the CPU load of the ESXi server. iSER can provide a significant increase in performance, providing an essential tool to optimize demanding virtualization applications.

Note: To create an iSER connection with VMware ESXi, both the server and NAS require compatible NVIDIA® Mellanox NICs and switches compatible with NVIDIA® Mellanox or supporting PFC (Priority Flow Control) configuration.

Block-based iSCSI LUN: Ideal choice for virtualization storage

The TS-877XU-RP supports block-based iSCSI LUN that provides a more reliable and isolated environment than file-based LUN. Supporting VMware®, Citrix®, Microsoft® Hyper-V® and Windows Server® 2016, the TS-877XU-RP provides a high-performance, reliable and affordable storage solution for virtualization environments, while also supporting VMware VAAI and Microsoft ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively, and supporting QNAP vSphere Client plug-in and QNAP SMI-S provider with enhanced operational efficiency and management in virtualization applications.

High-speed VM Backup Solution

With Hyper Data Protector, the TS-877XU-RP becomes an agentless backup tool for unlimited VMware® vSphere and Microsoft® Hyper-V VM backup. Hyper Data Protector features incremental backup, global deduplication, backup scheduling and recovery compression that provides you with a cost-effective and reliable disaster recovery plan, ensuring 24/7 operation of your services.

Notes : QNAP NAS must be running QTS version 4.3.6 or later

HBS 3

HBS 3

QuDedup technology deduplicates data at the source, helping to reduce the time and storage space needed for backup.

VJBOD Cloud

VJBOD Cloud

Seamlessly connect local storage with cloud object storage to easily backup local application data to the cloud.

HybridMount

HybridMount

Enabling local caching on NAS for low-latency access to the connected cloud services.

QuMagie

QuMagie

Integrated AI algorithm for auto photo organization and a powerful search tool for more intuitive and streamlined photo management.

Build an affordable Fibre Channel SAN environment

Common Fibre Channel SAN (Storage Area Networks) devices are often expensive. Now you have more budge-friendly options to easily add your NAS to a SAN environment. Once a Marvell®, ATTO® or QNAP Fibre Channel card has been installed in the TS-877XU-RP, you can set a Fibre Channel Target using the iSCSI & Fibre Channel app, and leverage the many benefits from QNAP NAS including snapshot protection, Qtier™ tiering storage, SSD cache acceleration and more. In addition, the LUN Masking and Port Binding features provide an additional layer of security for your data.

All-in-one server to host virtual machines and containers

Virtualization Station and Container Station jointly introduce a hybrid approach to virtualization. No matter your virtualization needs, you can count on QNAP for complete virtualization support.

Virtualization Station

Virtualization Station allows you to run multiple Windows®, Linux®, UNIX® and Android™ virtual machines and access them via a web browser or VNC (Virtual Network Computing). Businesses can run virtualized server applications on a single NAS without the need for additional physical servers.

Container Station

Container Station integrates LXC and Docker® lightweight virtualization technologies. You can download apps from the built-in Docker Hub Registry®. It supports container import/export and permission settings. It’s easy deployment, portable, and efficient.

Upgrade your IT environment with QNAP’s fast and affordable 10GbE Switch!

QNAP 10GbE/NBASE-T™ unmanaged switches allow you to instantly upgrade your network environment at a cost-effective price. With a 10GbE network you can enjoy blazing-fast transfer speeds, empower bandwidth-demanding tasks like virtualization, and enable simultaneous real-time access to large NAS-based files using multiple workstations (ideal for video editing and multimedia). QNAP also provides a 10GbE PCIe network expansion card for Windows®/Linux® PCs to take advantage of high-speed LAN environments.

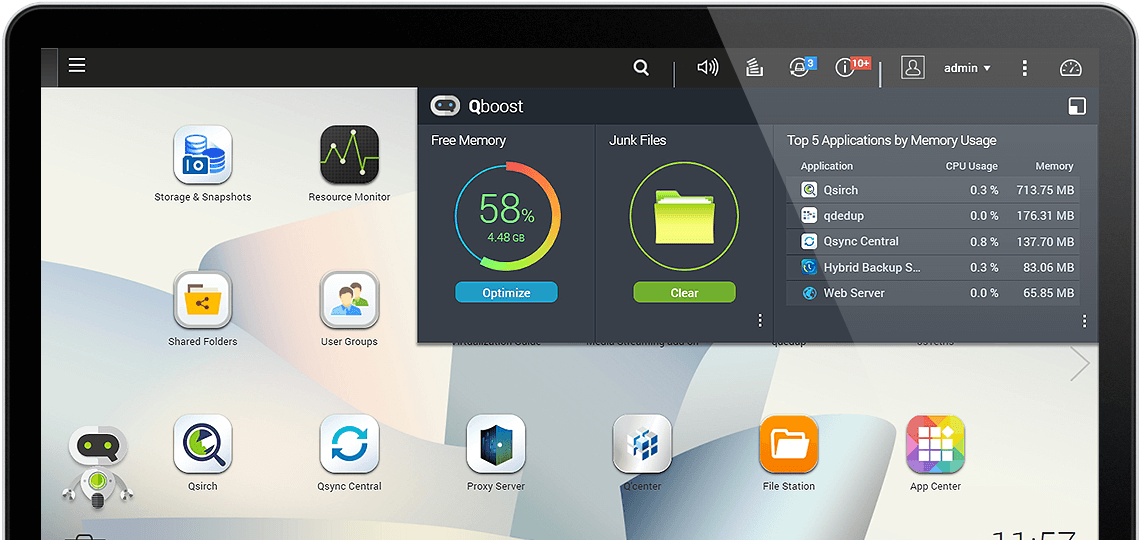

QTS–Intelligent, intuitive and creative NAS operating system

With modularized multiple applications and functions, QTS enhances management efficiency, personal productivity, multimedia, and much more, making your NAS experience easier, efficient, and more flexible! The new Qboost provides a NAS optimization tool that helps accelerate applications, free up system resources, and schedule applications. The built-in App Center with hundreds of install-on-demand apps realizes far more extensive NAS functionality. QTS breaks the barriers of devices, platforms, and geography to bring you optimized cloud experiences and incorporates advanced features.

Optimized collaboration with seamless file sharing and sync

The TS-877XU-RP centrally stores data and files, and supports SMB/CIFS, AFP and NFS protocols for file sharing across Windows®, Mac®, and Linux®/UNIX® networks. Coupled with Qsync (a utility that turns a QNAP NAS into a safe, high-capacity data center for file synchronization) any file uploaded to the TS-877XU-RP will be made available for all linked devices, such as computers, laptops or mobile devices. You can sync shared folders and team folders for group file sharing to enhance the flexibility of team projects and collaboration. Files can be centrally managed using File Station, including files from mobile devices and optical disc drives. File Station also allows you to mount a remote NAS, and transfer files between your NAS and public cloud services for greater convenience.

Complete backup planning

The TS-877XU-RP provides a reliable, flexible backup & disaster recovery solution to assist organizations in routine backup jobs with cost-efficiency and high productivity.

Windows and Mac backup

Use the license-free QNAP NetBak Replicator utility to back up/restore Windows® files, alongside Time Machine® support for Mac® devices. It is easy, fast and convenient.

Hybrid Backup Sync

Consolidates backup, restoration and synchronization functions (using RTRR, rsync, FTP, CIFS/SMB) for easily transferring data to local, remote and cloud storage spaces as a comprehensive data storage and disaster recovery plan.

Snapshots for Volume & LUN

Snapshot is essential for NAS data protection, and its block-level feature makes it a dependable method for protecting data in the face of the growing threat of ransomware. The TS-877XU-RP supports up to 256 snapshots per volume or LUN, and maximum 1,024 snapshots per NAS.

VM backup

With high performance, potentially huge storage capacities, integrated virtualization solutions, and support for snapshots that record the state of the system at any time, the TS-877XU-RP are perfect for backing up virtual machines.

The new QVR Pro surveillance solution

QNAP’s new QVR Pro surveillance solution allows you to arrange a dedicated, independent storage space for surveillance data on TS-877XU-RP and leverage the advantages of scalability and storage manageability from QTS. With QVR Pro, camera management, storage space allocation, camera live viewing and playback is greatly simplified. You can also use the QVR Pro Client mobile app to monitor your cameras from anywhere, or use a USB webcam as an ONVIF network camera with the QUSBCam2 app.

Note :
1. QVR Pro supports 8 free channels for surveillance monitoring (expandable to 128 channels with additional channel license purchase).
2. The maximum number of channels supported varies by NAS model, network configuration, and camera settings. For more information, visit https://www.qnap.com/go/qvr-nas-selector.

Flexible and economical storage expansion

You need an easy solution to increase storage capacity when running out of space. QNAP provides several ways to expand your NAS storage as needed to accommodate data and business growth.

VJBOD

Use VJBOD (Virtual JBOD) to expand your storage capacity by using the unused storage of other QNAP NAS. Up to 8 QNAP NAS can be mounted as local disks on the TS-877XU-RP

Upgrade RAID Capacity

Hot swap lower-capacity drives with larger-capacity drives so that your QNAP NAS can grow with your business.

Migrate to a New NAS

Install your NAS hard drives into a larger QNAP NAS and retain all your existing data and configurations.

Attach Expansion Enclosures

Connect up to 8 REXP-1620U-RP/REXP-1220U-RP* or up to 2 UX-1200U-RP/800U-RP expansion enclosures. Use the QTS Storage & Snapshots Manager to easily handle NAS capacity expansion.

* A SAS storage expansion card is required to use REXP-1620U-RP / REXP-1220U-RP expansion enclosures.

More Productivity Applications

Q’center

Use the NAS as a central management platform to manage multiple QNAP NAS across multiple sites, monitor system logs, and manage NAS updates and maintenance.

QmailAgent

Centrally manage and switch between different email accounts, back up emails to the NAS, and safeguard email security and personal privacy.

Browser Station

Enable remote access through NAS browsers to access local LAN resources without going through complex VPN setting.

IFTTT Agent

A popular web automation service for combining QNAP NAS and mobile devices/apps to customize NAS applets.

Mobile Apps

Simplify file access, NAS management, multimedia entertainment, surveillance, and download tasks on mobile devices with QNAP mobile apps.




Short Tech Specification



8-Bay NAS, AMD Ryzen™ 3600 6-core/12-thread 3.6 GHz processor, 8GB DDR4 RAM (max 64GB RAM), 8x 2.5″/3.5″ SATA HDD/SSD, 2xGbE LAN, 2 x 10GbE SFP+, USB. 3.1/3.0, 4 x PCIe expansion slot, 500W redundant power supply, QVR Pro free 8 & max 128 channels, optional graphics card support,



Detailed Tech Specification



Hardware Specs



TS-877XU-RP-3600-8G

CPU AMD Ryzen™ 5 3600 6-core/12-thread processor, burst up to 4.2 GHz
CPU Architecture 64-bit x86
Floating Point Unit
Encryption Engine ✓ (AES-NI)
System Memory 8 GB UDIMM DDR4 (2 x 4GB)
Maximum Memory 64 GB (4 x 16 GB)
Memory Slot 4 x UDIMM DDR4
Flash Memory 5GB (Dual boot OS protection)
Drive Bay 8 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility 3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Hot-swappable
SSD Cache Acceleration Support
GPU pass-through
Gigabit Ethernet Port (RJ45) 2
10 Gigabit Ethernet Port 2 x 10GbE SFP+ SmartNIC port
Wake on LAN (WOL)
Jumbo Frame
PCIe Slot 4
Slot 1: PCIe Gen 3 x4
Slot 2: PCIe Gen 3 x8 or PCIe Gen 3 x4*
Slot 3: PCIe Gen 3 x4
Slot 4: PCIe Gen 3 x8 or PCIe Gen 3 x4**

*Slot 2 provides the width of PCIe Gen.3 x8 when Slot 1 is not in use, and provides the width of PCIe Gen.3 x4 when Slot 1 is in use.
**Slot 4 provides the width of PCIe Gen.3 x8 when Slot 3 is not in use, and provides the width of PCIe Gen.3 x4 when Slot 3 is in use.
USB 3.2 Gen 1 port 4
USB 3.2 Gen 2 (10Gbps) Port 1 x Type-C USB 3.2 Gen 2 10Gbps
1 x Type-A USB 3.2 Gen 2 10Gbps
Form Factor 2U Rackmount
LED Indicators HDD 1-8, Status, LAN, storage expansion port status
Buttons Power, Reset
Dimensions (HxWxD) 88.3 × 482 × 562 mm
Weight (Net) 13.31 kg
Weight (Gross) 15.46 kg
Operating Temperature 0 – 40 °C (32°F – 104°F)
Storage Temperature -20 – 70°C (-4°F – 158°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit 300W (x2), 100-240V
Power Consumption: Operating Mode, Typical 86.04 W

Tested with drives fully populated.
Fan System fan: 2 x 70mm, 12VDC
System Warning Buzzer
Max. Number of Concurrent Connections (CIFS) – with Max. Memory 3500



Software Specs



Operating System QTS 5.0.1
Supported Client Operating Systems
  1. Apple Mac OS 10.10 or later
  2. Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later Linux
  3. IBM AIX 7, Solaris 10 or later UNIX
  4. Microsoft Windows 7, 8, 10 and 11
  5. Microsoft Windows Server 2008 R2, 2012, 2012 R2, 2016, and 2019
Supported Browsers
  1. Apple Safari (latest version)
  2. Google Chrome (latest version)
  3. Microsoft Edge (latest version)
  4. Mozilla Firefox (latest version)
Supported Languages Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, and Turkish
Storage Pool
SED Storage Pool
Maximum Pool size 308 TB
Maximum number of storage pool 128
Volume Type Thick, Thin, Static
Maximum volume size 250 TB

Note: At least 4 GB RAM is required.

Maximum number of volume 128
Maximum shared folder size 250 TB
Maximum number of shared folder 512
JBOD Expansion
VJBOD / VJBOD Cloud
iSCSI Service
Fibre Channel Service
LUN Type Thick, Thin
File-based iSCSI LUN
Block-based iSCSI LUN
Maximum LUN size 250 TB

Note: At least 4 GB RAM is required.

Maximum number of targets LUN 256
LUN feature
  1. LUN Mapping (LUN can be moved between iSCSI and FC)
  2. LUN Masking
  3. WWPN Aliases Import/Export
  4. FC Port Group
  5. FC Port Binding
  6. Multipath IO (MPIO)
  7. Online LUN capacity expansion
  8. LUN snapshot
  9. LUN snapshot replication and clone
Auto Tiering

Requires minimum 2GB memory.

RAID Type
  1. 8-bay (and more): JBOD, Single, RAID 0, 1, 5, 6, 10, 50, 60
  2. 6-bay: JBOD, Single, RAID 0, 1, 5, 6, 10, 50
  3. 4-bay: JBOD, Single, RAID 0, 1, 5, 6, 10
  4. 2-bay: JBOD, Single, RAID 0, 1
RAID Group

To ensure data security, system stability, and storage performance, the maximum number of drives for a single RAID group is now 16 (applicable to RAID 5, RAID 6, RAID TP, and subgroups of RAID 50 and RAID 60). Nevertheless, users can combine multiple RAID groups into a large storage pool that contains more than 16 drives, using RAID 50, RAID 60, or RAID 10 as the RAID configuration. This enhancement will only be applied to new RAID groups. All existing RAID groups and storage systems will not be affected.

RAID Level Migration
RAID Expansion (by adding Disk)
RAID Expansion (by replacing bigger Disks)
Storage Pool Expansion (by adding RAID Group)
RAID Hot Spare Global, Local
RAID Sync/Rebuild/Scrubbing
Internal drive EXT4
External drive EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT (optional for ARM model)

Note: To use exFat in certain models you must purchase an exFAT driver license from License Center.

Disk, Enclosure Locate
Disk S.M.A.R.T. Scan
Disk S.M.A.R.T. Data Migration
Ironwolf Health Management
Secure Erase
SSD Trim
SSD Life Estimation
Disk Roaming
Disk Standby
Volume Snapshot
LUN Snapshot
Maximum Snapshot (Per System) Check maximum number of snapshots of your NAS
Maximum Snapshot (Per Volume / LUN) Check maximum number of snapshots of your NAS
Minimum Snapshot Interval 5 minutes
Snapshot Retention Policy
Self-serve Snapshot Recovery
Application Consisted Snapshot
Snapshot Full Clone
Snapshot Replica / Vault
SSD read-only Cache
SSD read-write cache
SSD write-only cache
SSD Cache Maximum Size Check your QNAP NAS cache capacity and RAM requirements
SSD Cache RAID 0, 1, 5, 6, 10
SSD profiling tool
External Device Management
Mount Smart Phone (MTP)
External RAID Device (QNAP so on) Management (External Device Mode)
External RAID Device (QNAP so on) Management (NAS Mode)
File Server
  1. File sharing across Windows, Mac, and Linux/UNIX
  2. Microsoft networking (CIFS/SMB)
  3. Apple networking (AFP)
  4. NFS version 3/4 services
FTP Server
  1. QuFTP
  2. FTP, SFTP and TFTP protocols
  3. FTP over SSL/TLS (explicit FTPS)
  4. FXP support
Maximum FTP connection 1024
File Station (Web)
Object Storage
Local user account 4,096
Local group account 512
Domain user/group account 200,000
Domain Security
Domain Controller
Shared folder permission
Advanced folder permission , (AFP, CIFS/SMB, FTP, and File Station)
Windows ACL , (CIFS/SMB)
User quota
Group quota
Folder quota , (Snapshot shared folder)
Home folder
Resource Monitor
SNMP V2, V3
Network recycle bin
  1. Recover files deleted using AFP, CIFS/SMB, and File Station
  2. Automatic cleanup and file type filter
System Log & Notification Center Log recording: 3,000 event per second
Smart Fan
Schedule on/off
Internet protocol IPv4, IPv6
Virtual Switch
Port trunking , (7 modes)
VLAN
DHCP Server
DDNS (Dynamic Domain Name Service)
Network access protection with auto-blocking SSH, Telnet, HTTP(S), FTP, CIFS/SMB, and AFP
Security Counselor
Malware Remover
AES 256-bit Volume Encryption validated by FIPS 140-2 CAVP
2-step verification
Allow/Deny List
Access Protection
Service binding
Firewall
VMware vSphere Ready
Windows Server certifcated
Citrix Ready
vSphere Web Client Plug-in
VMware vSphere VAAI for iSCSI
VMware vSphere VAAI for NAS
Windows ODX
Windows/VMware Snapshot Agent
HTTP/HTTPS Connections TLS 1.0/1.1/1.2/1.3
Supports WebDAV Connection
Supports Virtual Hosts 32
Qsync

Note: At least 1 GB RAM is required.

[Qsync] Management Mode User customization, Central
[Qsync] Qsync client supported platforms Windows, macOS, Ubuntu, Android, and iOS
[Qsync] Maximum number of version control 64
HybridMount

Note: At least 1 GB RAM is required.

[HybridMount] File Cloud Gateway Concurrent Connections = 20 Upload & 20 Download
[HybridMount] Network Drive Mount
[HybridMount] Free cloud gateway sessions 2
HBS (Hybrid Backup Sync)

Note: At least 1 GB RAM is required.

[HBS (Hybrid Backup Sync)] NAS to NAS backup
[HBS (Hybrid Backup Sync)] Cloud Backup
[HBS (Hybrid Backup Sync)] Cloud Sync
[HBS (Hybrid Backup Sync)] 2-way and Active Sync
[HBS (Hybrid Backup Sync)] Backup Deduplication
[HBS (Hybrid Backup Sync)] Apple Time Machine Backup
[HBS (Hybrid Backup Sync)] External drive backup
[HBS (Hybrid Backup Sync)] Maximum number of backup job 400
Hyper Data Protector
Boxafe

Note: At least 4 GB RAM is required.

[Boxafe] Office 365 Backup
[Boxafe] Google Workspace Backup
[Boxafe] Full-text search
Qsirch

Note: This feature is supported by all QNAP NAS devices with at least 2 GB of memory

[Qsirch] Previews Photos, music, videos, PDFs, Gmail, and others
[Qsirch] Integrate Mac Finder
[Qsirch] Advanced picture search
[Qsirch] Search filters
QuMagie

Note: At least 1 GB RAM is required.

[QuMagie] Browse photos
[QuMagie] Virtual and smart albums
[QuMagie] AI-assisted photo management People, things, places, and others
Antivirus (free)
McAfee (License)
QVPN Service

Note: At least 1 GB RAM is required.

[QVPN Service] Remote Access PPTP, L2TP/IPSec, OpenVPN, WireGuard, QBelt (QNAP proprietary)
[QVPN Service] Supportedd utility and mobile app Windows, macOS, iOS, and Android
[QVPN Service] Supported maximum clients 100
LDAP Server
RADIUS
SQL server
License Center
Multimedia Console
Photo Station
Music Station
Video Station
Download Station
Notes Station
Qfiling
Media Streaming add-on
QmailAgent
QuWAN
DA Driver Analyzer
Q’center

Note: The application is available in the App Center and in virtual appliance marketplaces (VMware vSphere ESXi and Microsoft Hyper-V).

Q’center Server
Q’center Agent
Connect to Q’center
Virtualization Station

Note: At least 4 GB RAM is required.

[Virtualization Station] Supports Virtual machine instances Windows, Linux, Unix, and Android
[Virtualization Station] VM importing, exporting, cloning, snapshot capturing, backup, and restoration All function is Fine.
[Virtualization Station] Virtual switches Can create a virtual switch
[Virtualization Station] GPU pass-through Not support GPU
[Virtualization Station] Suggested number of virtual machine instances 12

The actual number of virtual machine instances may vary by the memory installed on NAS (e.g. 1 VM= 1 thread for 1 vCPU and 1GB memory). Please expend memory if needed.

Container Station

Note: At least 1 GB RAM is required.

[Container Station] Supported type LXC/LXD and Docker

Note: LXD has been supported after Container Station 2.4

[Container Station] Docker Hub Registry
[Container Station] Container importing and exporting
[Container Station] Console mode
Linux Station

Notification: At least 4 GB RAM is required.

[Linux Station] Supports Ubuntu versions 18.04, and 20.04
Linux Station Center
QVR Pro

Note: At least 4 GB RAM is required. The maximum number of channels supported varies by NAS model, network configuration, and camera settings. For more information, visit https://www.qnap.com/go/qvr-nas-selector.

[QVR Pro] Recording Technique Index database based
[QVR Pro] License Type Perpetual
[QVR Pro] User-defined trigger events
[QVR Pro] Metadata
[QVR Pro] QVR Pro Client (Desktop) Windows, macOS, and QNAP HybridDesk Station
[QVR Pro] QVR Pro Client (Mobile) Android and iOS
[QVR Pro] Recording camera streams H.264
[QVR Pro] Free built-in camera channels 8
QVR Elite

Note: At least 1 GB RAM is required. The maximum number of channels supported varies by NAS model, network configuration, and camera settings. For more information, visit https://www.qnap.com/go/qvr-nas-selector.

[QVR Elite] Recording Technique Standard MP4 file based
[QVR Elite] License Type Subscription-based
[QVR Elite] User-defined trigger events
[QVR Elite] QVR Pro Client (Desktop) Windows, macOS, and QNAP HybridDesk Station
[QVR Elite] QVR Pro Client (Mobile) Android and iOS
[QVR Elite] Recording camera streams H.264
[QVR Elite] Free built-in camera channels 2
QVR Pro Client
[QVR Pro Client] Dynamic View Layout
[QVR Pro Client] Windows
[QVR Pro Client] Mac
[QVR Pro Client] HybridDesktop
[QVR Pro Client] iOS
[QVR Pro Client] Android
QVR Center

Note: At least 4 GB RAM is required.

[QVR Center] Log management
[QVR Center] Central monitoring across multiple servers
QVR Guard

Note: At least 4 GB RAM is required.

[QVR Guard] Failover design
[QVR Guard] Viewing task details
[QVR Guard] Automatic switch between Standby and Takeover modes
QVR Human
QVR Face

The maximum number of channels supported varies by NAS model, network configuration, and camera settings. For more information, visit https://www.qnap.com/solution/qvr-face/en-us/

QVR DoorAccess
Processor

AMD Ryzen

Memory

8GB
