QNAP 9-Bay NAS AMD Ryzen 3600 8GB DDR4 4×2.5″/3.5″ SATA HDD/SSD and 5×2.5″ SATA SSD 2 GigaLan 2x10GbE SFP+ SmartNIC 300W redundant power supply – TS-977XU-RP-3600-8G
For The Immediate delivery contact the sales team. Usually, Ship in 2-3 days, backorder ship in 4-5 Weeks, images are for illustration purposes only.
Original price was: AED. 11,546.00.AED. 10,614.00Current price is: AED. 10,614.00. excl. VAT
QNAP 9-Bay NAS AMD Ryzen 3600 8GB DDR4 4×2.5″/3.5″ SATA HDD/SSD and 5×2.5″ SATA SSD 2 GigaLan 2x10GbE SFP+ SmartNIC 300W redundant power supply – TS-977XU-RP-3600-8G
TS-977XU-RP
Overview
Features
Powered by AMD’s powerful Ryzen™ processor, the TS-977XU-RP delivers high system performance with up to 6 cores/12 threads and Turbo Core up to 3.9 GHz. The TS-977XU-RP features a hybrid structure with four 3.5-inch HDD and five 2.5-inch SSD drive bays, allowing for enabling SSD caching and Qtier™ auto-tiering technology to greatly boost IOPS to meet the performance requirements of demanding applications. The TS-977XU-RP features two SFP+ 10GbE ports and two Gigabit ports for high-speed connectivity, providing businesses and organizations with an ideal solution for quickly deploying a high-bandwidth, high-reliability storage environment. The TS-977XU-RP also features a redundant power supply to ensure maximum system uptime.
1. Install up to five SSDs in the 2.5-inch drive bays to enable SSD caching and Qtier for optimal system performance.
2. Two 10GbE SFP+ ports provide higher bandwidth to empower applications like virtualization, 4K video editing and file sharing.
3. PCIe expandability allows for installing QM2 expansion card, USB 3.2 Gen 2 (10Gbps) cards, or wireless network cards.
4. Snapshots add an extra layer of protection for disaster recovery plans. You can set a custom snapshot schedule and can use snapshots to recover data from a local or remote NAS.
5. Scalable storage supporting virtualization, containerized apps, centralized storage, backup, sharing, and disaster recovery.
6. Besides using QNAP storage expansion enclosures, you can also leverage QNAP VJBOD technology to use the unused storage space from other NAS.
Top-class hardware engineering with high I/O expandability
The hardware design of the TS-977XU-RP provides exceptional system performance and expandability to fulfill diverse application requirements.
1. Multi-core AMD Ryzen™ processor
TS-977XU-RP-3600-8G: Featuring a 6-core/12-thread Ryzen™ 5 3600 3.6 GHz processor with Turbo Core up to 4.2 GHz.
2. DDR4 2400 MHz memory
Supports four DDR4 dual-channel Long-DIMM memory modules (expandable up to 64GB). Includes 4GB/8GB RAM as standard.
3. 2 x 10GbE SFP+ ports
Fully supports 10GbE high-speed networks, ideal for running bandwidth-demanding applications.
4. USB 3.2 Gen 1/ 3.1 ports
Supports external hard drives, printers and UPS. USB 3.2 Gen 2 provides speeds up to 10Gb/s to greatly boost data transfer performance.
5. 2 x Gigabit Ethernet ports
Ideal for service binding, port trunking and MPIO configurations.
6. 1 x PCIe expansion slot
Supports a SAS card, 10GbE/40GbE network card or a QM2 M.2 SSD/10GbE PCIe card to add greater application potential.
7. Three 4cm System fans
Monitors system temperatures and automatically adjusts fan speeds accordingly.
8. 2 x 300W Power Supply Units
Redundant power supplies are provided on both new models to ensure continuous system up-time
9. Five 2.5-inch SSD drive bays
Allows for installing SSDs to enable SSD caching and Qtier to enhance system performance.
Virtualization Certifications Supported by TS-977XU-RP
Extend hardware warranty up to 5 years
The TS-977XU-RP is backed by a 3-year warranty at no extra cost. If needed, you can purchase a warranty extension that increases your coverage up to 5 years.
Learn More: QNAP warranty services

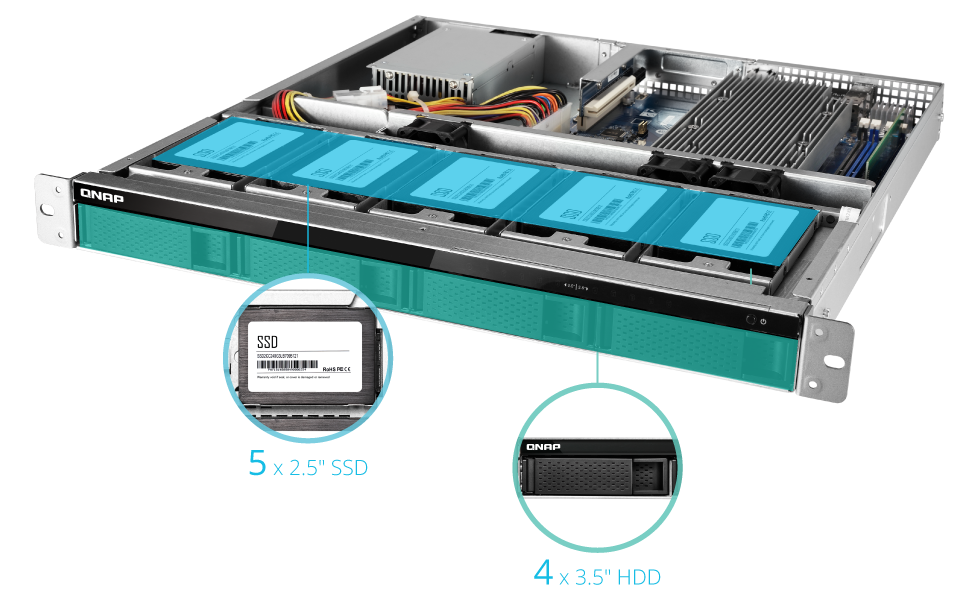

Hybrid structure for enabling SSD and tiered storage
The TS-977XU-RP features an HDD+ SSD hybrid structure (including five 2.5-inch and four 3.5-inch drive bays*), allowing you to leverage the benefits of both hard drives and SSD to provide high storage capacity and high performance. Qtier™ Technology empowers the TS-977XU-RP with automatic tiering that continuously optimizes storage utilization across high-performance SSD and high-capacity hard drives. The new Qtier™ 2.0 features IO-awareness that empowers SSD-tiered storage with a cache-like reserved space to handle burst I/O in real time, greatly maximizing the advantages of SSD.
Learn More: SSD caching, Qtier
*SSDs and HDDs sold separately.
Dual-channel Memory to delivers power-smart performance
The TS-977XU-RP supports dual-channel DDR4 memory and features four Long-DIMM slots. When using paired memory modules, the TS-977XU-RP leverages the power of dual-channel architecture to boost performance. You can also customize the memory configuration (supports up to 64GB RAM) of the TS-977XU-RP, making it the most ideal and cost-efficient storage solution for environments like virtualization that contain dynamically-changing workloads.
Extend NAS functionality with PCIe cards
The TS-977XU-RP features a PCIe slot that allows for installing a 10GbE/40GbE network card, a QM2 M.2 SSD/10GbE PCIe card, or a wireless network card to provide greater application potential.
10GbE/ 40GbE adapters
Supports lightning-fast throughput for bandwidth-demanding tasks such as virtualization and fast backup/restoration for an ever-growing amount of data.
Learn More: 10GbE NAS solution
QM2 card with M.2 SSD/10GbE support
Add M.2 SSD caching or 10GbE (10GBASE-T) connectivity to the NAS to enjoy optimal performance.
Wireless network cards
Use with the WirelessAP Station app to transform the NAS into a convenient wireless base station, allowing network resources of the NAS to be shared with multiple devices.
Learn More: WirelessAP Station
Performance & reliability. Your wise choice.
The TS-977XU-RP supports advanced business features to provide maximized efficiency and performance while ensuring 24/7 services.

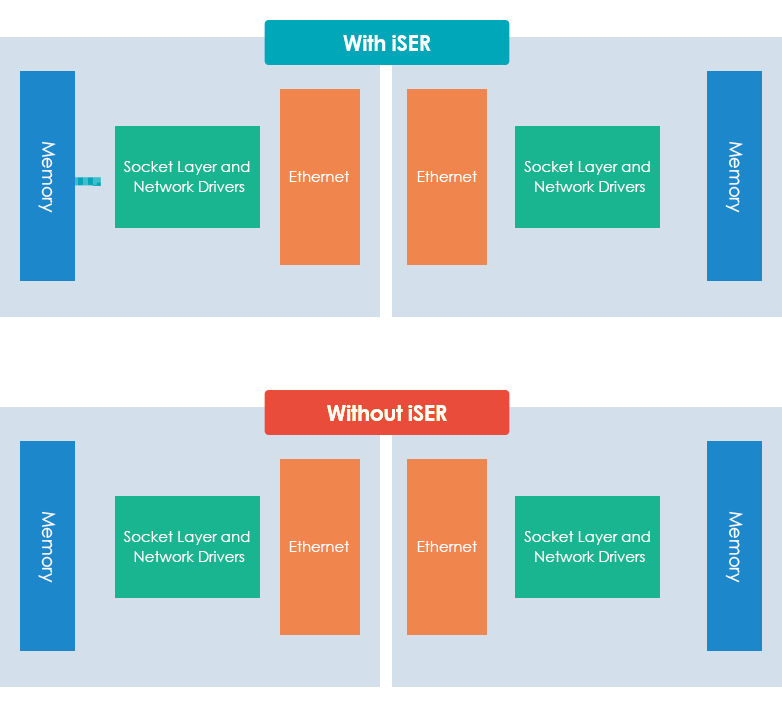

Optimized performance for VMware Virtualization with iSER
With the built-in dual 10GbE ports that natively features NVIDIA® Mellanox ConnectX-4, the TS-977XU-RP supports the iSCSI Extensions for RDMA (iSER) protocol to boost data transfer performance of the TS-977XU-RP as VMware® ESXi storage and to reduce the CPU load of the ESXi server. iSER can provide a significant increase in performance, providing an essential tool to optimize demanding virtualization applications.
Learn More: iSER
Note: To create an iSER connection with VMware ESXi, both the server and NAS require compatible NVIDIA® Mellanox NICs and switches compatible with NVIDIA® Mellanox or supporting PFC (Priority Flow Control) configuration.
Block-based iSCSI LUN: Ideal choice for virtualization storage
The TS-977XU-RP supports block-based iSCSI LUN that provides a more reliable and isolated environment than file-based LUN. Supporting VMware®, Citrix®, Microsoft® Hyper-V® and Windows Server® 2016, the TS-977XU-RP provides a high-performance, reliable and affordable storage solution for virtualization environments, while also supporting VMware VAAI and Microsoft ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively, and supporting QNAP vSphere Client plug-in and QNAP SMI-S provider with enhanced operational efficiency and management in virtualization applications.
Learn More: Storage for virtualization
High-speed VM Backup Solution
With Hyper Data Protector, the TS-977XU-RP becomes an agentless backup tool for unlimited VMware® vSphere and Microsoft® Hyper-V VM backup. Hyper Data Protector features incremental backup, global deduplication, backup scheduling and recovery compression that provides you with a cost-effective and reliable disaster recovery plan, ensuring 24/7 operation of your services.
Learn More: Hyper Data Protector
Notes: QNAP NAS must be running QTS version 4.3.6 or later
HBS 3
QuDedup technology deduplicates data at the source, helping to reduce the time and storage space needed for backup.
VJBOD Cloud
Seamlessly connect local storage with cloud object storage to easily backup local application data to the cloud.
HybridMount
Enabling local caching on NAS for low-latency access to the connected cloud services.
QuMagie
Integrated AI algorithm for auto photo organization and a powerful search tool for more intuitive and streamlined photo management.
Build an affordable Fibre Channel SAN environment
Common Fibre Channel SAN (Storage Area Networks) devices are often expensive. Now you have more budge-friendly options to easily add your NAS to a SAN environment. Once a Marvell®, ATTO® or QNAP Fibre Channel card has been installed in the TS-977XU-RP, you can set a Fibre Channel Target using the iSCSI & Fibre Channel app, and leverage the many benefits from QNAP NAS including snapshot protection, Qtier™ tiering storage, SSD cache acceleration and more. In addition, the LUN Masking and Port Binding features provide an additional layer of security for your data.
Learn More: QNAP NAS supports Fibre Channel SAN
All-in-one server to host virtual machines and containers
Virtualization Station and Container Station jointly introduce a hybrid approach to virtualization. No matter your virtualization needs, you can count on QNAP for complete virtualization support.
Virtualization Station
Virtualization Station allows you to run multiple Windows®, Linux®, UNIX® and Android™ virtual machines and access them via a web browser or VNC (Virtual Network Computing). Businesses can run virtualized server applications on a single NAS without the need for additional physical servers.
Learn More: Virtualization Station, P2V
Container Station
Container Station integrates LXC and Docker® lightweight virtualization technologies. You can download apps from the built-in Docker Hub Registry®. It supports container import/export and permission settings. It’s easy deployment, portable, and efficient.
Learn More: Container Station, QIoT Containers
Upgrade your IT environment with QNAP’s fast and affordable 10GbE Switch!
QNAP 10GbE/NBASE-T™ unmanaged switches allow you to instantly upgrade your network environment at a cost-effective price. With a 10GbE network you can enjoy blazing-fast transfer speeds, empower bandwidth-demanding tasks like virtualization, and enable simultaneous real-time access to large NAS-based files using multiple workstations (ideal for video editing and multimedia). QNAP also provides a 10GbE PCIe network expansion card for Windows®/Linux® PCs to take advantage of high-speed LAN environments.
Learn More: 10GbE switches, 10GbE LAN cards
Optimized collaboration with seamless file sharing and sync
The TS-977XU-RP centrally stores data and files, and supports SMB/CIFS, AFP and NFS protocols for file sharing across Windows®, Mac®, and Linux®/UNIX® networks. Coupled with Qsync (a utility that turns a QNAP NAS into a safe, high-capacity data center for file synchronization) any file uploaded to the TS-977XU-RP will be made available for all linked devices, such as computers, laptops or mobile devices. You can sync shared folders and team folders for group file sharing to enhance the flexibility of team projects and collaboration. Files can be centrally managed using File Station, including files from mobile devices and optical disc drives. File Station also allows you to mount a remote NAS, and transfer files between your NAS and public cloud services for greater convenience.
Learn More : Cross-platform file sharing, Qsync
Complete backup planning
The TS-977XU-RP provides a reliable, flexible backup & disaster recovery solution to assist organizations in routine backup jobs with cost-efficiency and high productivity.
Windows and Mac backup
Use the license-free QNAP NetBak Replicator utility to back up/restore Windows® files, alongside Time Machine® support for Mac® devices. It is easy, fast and convenient.
Learn More: Data backup & Disaster recovery
Hybrid Backup Sync
Consolidates backup, restoration and synchronization functions (using RTRR, rsync, FTP, CIFS/SMB) for easily transferring data to local, remote and cloud storage spaces as a comprehensive data storage and disaster recovery plan.
Learn More: Hybrid Backup Sync
Snapshots for Volume & LUN
Snapshot is essential for NAS data protection, and its block-level feature makes it a dependable method for protecting data in the face of the growing threat of ransomware. The TS-977XU-RP supports up to 256 snapshots per volume or LUN, and maximum 1,024 snapshots per NAS.
Learn More: Volume & LUN snapshots
VM backup
With high performance, potentially huge storage capacities, integrated virtualization solutions, and support for snapshots that record the state of the system at any time, the TS-977XU-RP are perfect for backing up virtual machines.
Learn More: VM backup, NAKIVO backup

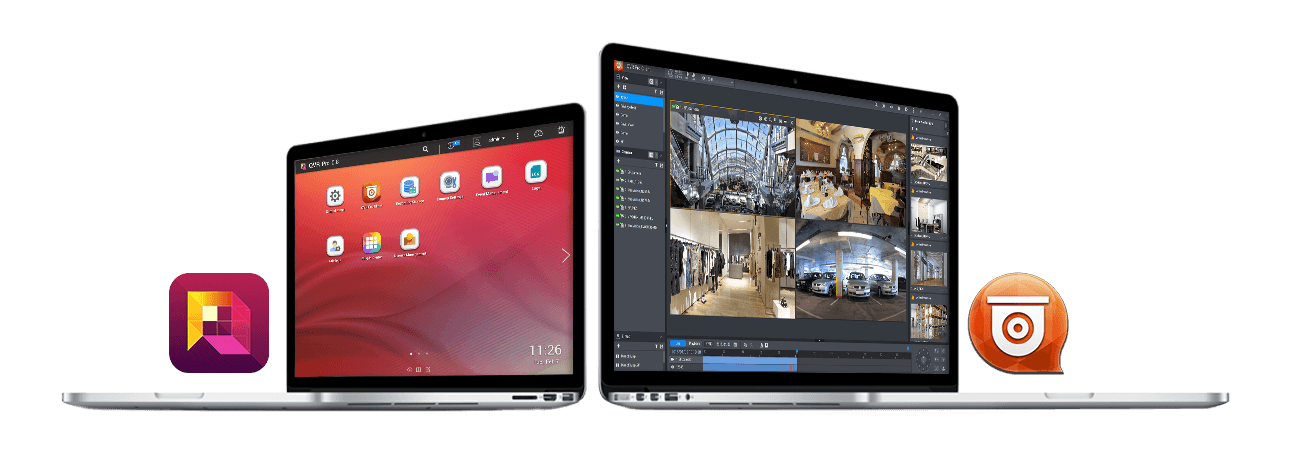

QVR Pro surveillance solution
QNAP’s QVR Pro surveillance solution allows you to arrange a dedicated, independent storage space for surveillance data on TS-977XU-RP and leverage the advantages of scalability and storage manageability from QTS. With QVR Pro, camera management, storage space allocation, camera live viewing and playback is greatly simplified. You can also use the QVR Pro Client mobile app to monitor your cameras from anywhere, or use a USB webcam as an ONVIF network camera with the QUSBCam2 app.
Learn More: QVR Pro
Note:
1. QVR Pro supports 8 free channels for surveillance monitoring (expandable to 128 channels with additional channel license purchase).
2. The maximum number of channels supported varies by NAS model, network configuration, and camera settings. For more information, visit https://www.qnap.com/go/qvr-nas-selector.
Flexible and economical storage expansion
You need an easy solution to increase storage capacity when running out of space. QNAP provides several ways to expand your NAS storage as needed to accommodate data and business growth.
VJBOD
Use VJBOD (Virtual JBOD) to expand your storage capacity by using the unused storage of other QNAP NAS. Up to 8 QNAP NAS can be mounted as local disks on the TS-977XU-RP
Learn More: VJBOD
Upgrade RAID Capacity
Hot swap lower-capacity drives with larger-capacity drives so that your QNAP NAS can grow with your business.
Learn More: Online RAID Capacity Upgrade
Migrate to a New NAS
Install your NAS hard drives into a larger QNAP NAS and retain all your existing data and configurations.
Learn More: Migrating from Old NAS
Attach Expansion Enclosures
Connect up to 8 REXP-1620U-RP/REXP-1220U-RP* or up to 2 UX-1200U-RP/800U-RP expansion enclosures. Use the QTS Storage & Snapshots Manager to easily handle NAS capacity expansion.
* A SAS storage expansion card is required to use REXP-1620U-RP / REXP-1220U-RP expansion enclosures.
More Productivity Applications
Q’center
Use the NAS as a central management platform to manage multiple QNAP NAS across multiple sites, monitor system logs, and manage NAS updates and maintenance.
Learn More: Q’center
QmailAgent
Centrally manage and switch between different email accounts, back up emails to the NAS, and safeguard email security and personal privacy.
Learn More: QmailAgent
Browser Station
Enable remote access through NAS browsers to access local LAN resources without going through complex VPN setting.
Learn More: Browser Station
IFTTT Agent
A popular web automation service for combining QNAP NAS and mobile devices/apps to customize NAS applets.
Learn More: IFTTT Agent
Mobile Apps
Simplify file access, NAS management, multimedia entertainment, surveillance, and download tasks on mobile devices with QNAP mobile apps.
Learn More: Mobile apps
Short Tech Specification
| 9-Bay NAS,AMD Ryzen™ 3600 6-core/12-thread 3.6 GHz processor, 8 GB UDIMM DDR4 (2 x 4GB), 4 x 2.5″/3.5″ SATA HDD/SSD and 5 x 2.5″ SATA SSD, 2 GigaLan, 2 x 10GbE SFP+ SmartNIC, 300W redundant power supply |
Detailed Tech Specification
Hardware Specs
TS-977XU-RP-3600-8G
| CPU | AMD Ryzen™ 5 3600 6-core/12-thread processor, burst up to 4.2 GHz |
| CPU Architecture | 64-bit x86 |
| Encryption Engine | ✓ (AES-NI) |
| System Memory | 8 GB UDIMM DDR4 (1 x 8GB) |
| Maximum Memory | 64 GB (4 x 16 GB) |
| Memory Slot | 4 x UDIMM DDR4 |
| Flash Memory | 5 GB (Dual boot OS protection) |
| Drive Bay | 4 x 3.5-inch + 5 x 2.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | ✓ |
| SSD Cache Acceleration Support | ✓ |
| Gigabit Ethernet Port (RJ45) | 2 |
| 10 Gigabit Ethernet Port | 2 x 10GbE SFP+ SmartNIC port |
| Wake on LAN (WOL) | ✓ |
| Jumbo Frame | ✓ |
| PCIe Slot | 1 Slot 1: PCIe Gen 3 x16 |
| USB 3.2 Gen 1 port | 4 |
| USB 3.2 Gen 2 (10Gbps) Port | 1 x Type-A USB 3.2 Gen 2 10Gbps |
| Form Factor | 1U Rackmount |
| LED Indicators | HDD 1-9, Status, LAN, storage expansion port status |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 43.3 × 482.6 × 505.54 mm |
| Weight (Net) | 8.62 kg |
| Operating Temperature | 0 – 40 °C (32°F – 104°F) |
| Storage Temperature | -20 – 70°C (-4°F – 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 300W(x2), 100-240V |
| Power Consumption: Operating Mode, Typical | 76.43 W
Tested with drives fully populated.
|
| Fan | System fan: 3 x 40mm, 12VDC |
| System Warning | Buzzer |
| Max. Number of Concurrent Connections (CIFS) – with Max. Memory | 3500 |
Software Specs
| Operating System | QTS 5.0.1 |
| Supported Client Operating Systems |
|
| Supported Browsers |
|
| Supported Languages | Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, and Turkish |
| Storage Pool | ✓ |
| SED Storage Pool | ✓ |
| Maximum Pool size | 308 TB |
| Maximum number of storage pool | 128 |
| Volume Type | Thick, Thin, Static |
| Maximum volume size | 250 TB
Note: At least 4 GB RAM is required. |
| Maximum number of volume | 128 |
| Maximum shared folder size | 250 TB |
| Maximum number of shared folder | 512 |
| JBOD Expansion | ✓ |
| VJBOD / VJBOD Cloud | ✓ |
| iSCSI Service | ✓ |
| Fibre Channel Service | ✓ |
| LUN Type | Thick, Thin |
| File-based iSCSI LUN | ✓ |
| Block-based iSCSI LUN | ✓ |
| Maximum LUN size | 250 TB
Note: At least 4 GB RAM is required. |
| Maximum number of targets LUN | 256 |
| LUN feature |
|
| Auto Tiering | ✓
Requires minimum 2GB memory. |
| RAID Type |
|
| RAID Group | ✓
To ensure data security, system stability, and storage performance, the maximum number of drives for a single RAID group is now 16 (applicable to RAID 5, RAID 6, RAID TP, and subgroups of RAID 50 and RAID 60). Nevertheless, users can combine multiple RAID groups into a large storage pool that contains more than 16 drives, using RAID 50, RAID 60, or RAID 10 as the RAID configuration. This enhancement will only be applied to new RAID groups. All existing RAID groups and storage systems will not be affected. |
| RAID Level Migration | ✓ |
| RAID Expansion (by adding Disk) | ✓ |
| RAID Expansion (by replacing bigger Disks) | ✓ |
| Storage Pool Expansion (by adding RAID Group) | ✓ |
| RAID Hot Spare | Global, Local |
| RAID Sync/Rebuild/Scrubbing | ✓ |
| Internal drive | EXT4 |
| External drive | EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT (optional for ARM model)
Note: To use exFat in certain models you must purchase an exFAT driver license from License Center. |
| Disk, Enclosure Locate | ✓ |
| Disk S.M.A.R.T. Scan | ✓ |
| Disk S.M.A.R.T. Data Migration | ✓ |
| Ironwolf Health Management | ✓ |
| Secure Erase | ✓ |
| SSD Trim | ✓ |
| SSD Life Estimation | ✓ |
| Disk Roaming | ✓ |
| Disk Standby | ✓ |
| Volume Snapshot | ✓ |
| LUN Snapshot | ✓ |
| Maximum Snapshot (Per System) | Check maximum number of snapshots of your NAS |
| Maximum Snapshot (Per Volume / LUN) | Check maximum number of snapshots of your NAS |
| Minimum Snapshot Interval | 5 minutes |
| Snapshot Retention Policy | ✓ |
| Self-serve Snapshot Recovery | ✓ |
| Application Consisted Snapshot | ✓ |
| Snapshot Full Clone | ✓ |
| Snapshot Replica / Vault | ✓ |
| SSD read-only Cache | ✓ |
| SSD read-write cache | ✓ |
| SSD write-only cache | ✓ |
| SSD Cache Maximum Size | Check your QNAP NAS cache capacity and RAM requirements |
| SSD Cache RAID | 0, 1, 5, 6, 10 |
| SSD profiling tool | ✓ |
| External Device Management | ✓ |
| Mount Smart Phone (MTP) | ✓ |
| External RAID Device (QNAP so on) Management (External Device Mode) | ✓ |
| External RAID Device (QNAP so on) Management (NAS Mode) | ✓ |
| File Server |
|
| FTP Server |
|
| Maximum FTP connection | 1024 |
| File Station (Web) | ✓ |
| Object Storage | ✓ |
| Local user account | 4,096 |
| Local group account | 512 |
| Domain user/group account | 200,000 |
| Domain Security | ✓ |
| Domain Controller | ✓ |
| Shared folder permission | ✓ |
| Advanced folder permission | ✓ , (AFP, CIFS/SMB, FTP, and File Station) |
| Windows ACL | ✓ , (CIFS/SMB) |
| User quota | ✓ |
| Group quota | ✓ |
| Folder quota | ✓ , (Snapshot shared folder) |
| Home folder | ✓ |
| Resource Monitor | ✓ |
| SNMP | V2, V3 |
| Network recycle bin |
|
| System Log & Notification Center | Log recording: 3,000 event per second |
| Smart Fan | ✓ |
| Schedule on/off | ✓ |
| Internet protocol | IPv4, IPv6 |
| Virtual Switch | ✓ |
| Port trunking | ✓ , (7 modes) |
| VLAN | ✓ |
| DHCP Server | ✓ |
| DDNS (Dynamic Domain Name Service) | ✓ |
| Network access protection with auto-blocking | SSH, Telnet, HTTP(S), FTP, CIFS/SMB, and AFP |
| Security Counselor | ✓ |
| Malware Remover | ✓ |
| AES 256-bit Volume Encryption validated by FIPS 140-2 CAVP | ✓ |
| 2-step verification | ✓ |
| Allow/Deny List | ✓ |
| Access Protection | ✓ |
| Service binding | ✓ |
| Firewall | ✓ |
| VMware vSphere Ready | ✓ |
| Windows Server certifcated | ✓ |
| Citrix Ready | ✓ |
| vSphere Web Client Plug-in | ✓ |
| VMware vSphere VAAI for iSCSI | ✓ |
| VMware vSphere VAAI for NAS | ✓ |
| Windows ODX | ✓ |
| Windows/VMware Snapshot Agent | ✓ |
| HTTP/HTTPS Connections | TLS 1.0/1.1/1.2/1.3 |
| Supports WebDAV Connection | ✓ |
| Supports Virtual Hosts | 32 |
| Qsync | ✓
Note: At least 1 GB RAM is required. |
| [Qsync] Management Mode | User customization, Central |
| [Qsync] Qsync client supported platforms | Windows, macOS, Ubuntu, Android, and iOS |
| [Qsync] Maximum number of version control | 64 |
| HybridMount | ✓
Note: At least 1 GB RAM is required. |
| [HybridMount] File Cloud Gateway | Concurrent Connections = 20 Upload & 20 Download |
| [HybridMount] Network Drive Mount | ✓ |
| [HybridMount] Free cloud gateway sessions | 2 |
| HBS (Hybrid Backup Sync) | ✓
Note: At least 1 GB RAM is required. |
| [HBS (Hybrid Backup Sync)] NAS to NAS backup | ✓ |
| [HBS (Hybrid Backup Sync)] Cloud Backup | ✓ |
| [HBS (Hybrid Backup Sync)] Cloud Sync | ✓ |
| [HBS (Hybrid Backup Sync)] 2-way and Active Sync | ✓ |
| [HBS (Hybrid Backup Sync)] Backup Deduplication | ✓ |
| [HBS (Hybrid Backup Sync)] Apple Time Machine Backup | ✓ |
| [HBS (Hybrid Backup Sync)] External drive backup | ✓ |
| [HBS (Hybrid Backup Sync)] Maximum number of backup job | 400 |
| Hyper Data Protector | ✓ |
| Boxafe | ✓
Note: At least 4 GB RAM is required. |
| [Boxafe] Office 365 Backup | ✓ |
| [Boxafe] Google Workspace Backup | ✓ |
| [Boxafe] Full-text search | ✓ |
| Qsirch | ✓
Note: This feature is supported by all QNAP NAS devices with at least 2 GB of memory |
| [Qsirch] Previews | Photos, music, videos, PDFs, Gmail, and others |
| [Qsirch] Integrate Mac Finder | ✓ |
| [Qsirch] Advanced picture search | ✓ |
| [Qsirch] Search filters | ✓ |
| QuMagie | ✓
Note: At least 1 GB RAM is required. |
| [QuMagie] Browse photos | ✓ |
| [QuMagie] Virtual and smart albums | ✓ |
| [QuMagie] AI-assisted photo management | People, things, places, and others |
| Antivirus (free) | ✓ |
| McAfee (License) | ✓ |
| QVPN Service | ✓
Note: At least 1 GB RAM is required. |
| [QVPN Service] Remote Access | PPTP, L2TP/IPSec, OpenVPN, WireGuard, QBelt (QNAP proprietary) |
| [QVPN Service] Supportedd utility and mobile app | Windows, macOS, iOS, and Android |
| [QVPN Service] Supported maximum clients | 100 |
| LDAP Server | ✓ |
| RADIUS | ✓ |
| SQL server | ✓ |
| License Center | ✓ |
| Multimedia Console | ✓ |
| Photo Station | ✓ |
| Music Station | ✓ |
| Video Station | ✓ |
| Download Station | ✓ |
| Notes Station | ✓ |
| Qfiling | ✓ |
| Media Streaming add-on | ✓ |
| QmailAgent | ✓ |
| QuWAN | ✓ |
| DA Driver Analyzer | ✓ |
| Q’center | ✓
Note: The application is available in the App Center and in virtual appliance marketplaces (VMware vSphere ESXi and Microsoft Hyper-V). |
| Q’center Server | ✓ |
| Q’center Agent | ✓ |
| Connect to Q’center | ✓ |
| Virtualization Station | ✓
Note: At least 4 GB RAM is required. |
| [Virtualization Station] Supports Virtual machine instances | Windows, Linux, Unix, and Android |
| [Virtualization Station] VM importing, exporting, cloning, snapshot capturing, backup, and restoration | All function is Fine. |
| [Virtualization Station] Virtual switches | Can create a virtual switch |
| [Virtualization Station] GPU pass-through | Not support GPU |
| [Virtualization Station] Suggested number of virtual machine instances | 12
The actual number of virtual machine instances may vary by the memory installed on NAS (e.g. 1 VM= 1 thread for 1 vCPU and 1GB memory). Please expend memory if needed. |
| Container Station | ✓
Note: At least 1 GB RAM is required. |
| [Container Station] Supported type | LXC/LXD and Docker
Note: LXD has been supported after Container Station 2.4 |
| [Container Station] Docker Hub Registry | ✓ |
| [Container Station] Container importing and exporting | ✓ |
| [Container Station] Console mode | ✓ |
| Linux Station | ✓
Notification: At least 4 GB RAM is required. |
| [Linux Station] Supports Ubuntu versions | 18.04, and 20.04 |
| Linux Station Center | ✓ |
| QVR Pro | ✓
Note: At least 4 GB RAM is required. The maximum number of channels supported varies by NAS model, network configuration, and camera settings. For more information, visit https://www.qnap.com/go/qvr-nas-selector. |
| [QVR Pro] Recording Technique | Index database based |
| [QVR Pro] License Type | Perpetual |
| [QVR Pro] User-defined trigger events | ✓ |
| [QVR Pro] Metadata | ✓ |
| [QVR Pro] QVR Pro Client (Desktop) | Windows, macOS, and QNAP HybridDesk Station |
| [QVR Pro] QVR Pro Client (Mobile) | Android and iOS |
| [QVR Pro] Recording camera streams | H.264 |
| [QVR Pro] Free built-in camera channels | 8 |
| QVR Elite | ✓
Note: At least 1 GB RAM is required. The maximum number of channels supported varies by NAS model, network configuration, and camera settings. For more information, visit https://www.qnap.com/go/qvr-nas-selector. |
| [QVR Elite] Recording Technique | Standard MP4 file based |
| [QVR Elite] License Type | Subscription-based |
| [QVR Elite] User-defined trigger events | ✓ |
| [QVR Elite] QVR Pro Client (Desktop) | Windows, macOS, and QNAP HybridDesk Station |
| [QVR Elite] QVR Pro Client (Mobile) | Android and iOS |
| [QVR Elite] Recording camera streams | H.264 |
| [QVR Elite] Free built-in camera channels | 2 |
| QVR Pro Client | ✓ |
| [QVR Pro Client] Dynamic View Layout | ✓ |
| [QVR Pro Client] Windows | ✓ |
| [QVR Pro Client] Mac | ✓ |
| [QVR Pro Client] HybridDesktop | ✓ |
| [QVR Pro Client] iOS | ✓ |
| [QVR Pro Client] Android | ✓ |
| QVR Center | ✓
Note: At least 4 GB RAM is required. |
| [QVR Center] Log management | ✓ |
| [QVR Center] Central monitoring across multiple servers | ✓ |
| QVR Guard | ✓
Note: At least 4 GB RAM is required. |
| [QVR Guard] Failover design | ✓ |
| [QVR Guard] Viewing task details | ✓ |
| [QVR Guard] Automatic switch between Standby and Takeover modes | ✓ |
| QVR Human | ✓ |
| QVR Face | ✓
The maximum number of channels supported varies by NAS model, network configuration, and camera settings. For more information, visit https://www.qnap.com/solution/qvr-face/en-us/ |
| QVR DoorAccess | ✓ |
| Processor | AMD Ryzen |
|---|---|
| Memory | 8GB |
Related products
All Brands
