QNAP KoiBox-100W High-quality video conferencing and 4K wireless presentation solution for business meeting rooms – KoiBox-100W
For The Immediate delivery contact the sales team. Usually, Ship in 2-3 days, backorder ship in 4-5 Weeks, images are for illustration purposes only.
Original price was: AED. 2,033.00.AED. 1,859.00Current price is: AED. 1,859.00. excl. VAT
QNAP KoiBox-100W High-quality video conferencing and 4K wireless presentation solution for business meeting rooms – KoiBox-100W
KoiBox-100W
Overview
Features
Running the KoiMeeter video conferencing operating system, the KoiBox-100W is the ideal replacement for costly SIP-based conferencing systems and features value-added 4K wireless projection, four-way communication, and local storage features. Creating private meetings with the KoiBox-100W provides higher security and privacy compared with public cloud meetings, and the auto-answering function provides greater convenience in certain usage environments. Besides private meetings, the KoiBox-100W streamlines communication between different platforms by allowing joining Zoom®, Skype™, Microsoft Teams®, Cisco Webex®, and Google Meet™ calls.
4K wireless projection
Present with a 4K high-resolution visual experience.
Four-way communications
Multi-point video conferencing with QNAP KoiBox-100W, KoiMeeter,and the KoiMeeter mobile app.
Join cloud meetings
Use cloud-based meeting platforms almost every day? No problem! The KoiBox-100W supports well-known cloud meeting services.
Share mobile phone screens
Scan the QR code on the KoiBox-100W display to quickly share your mobile phone screen.

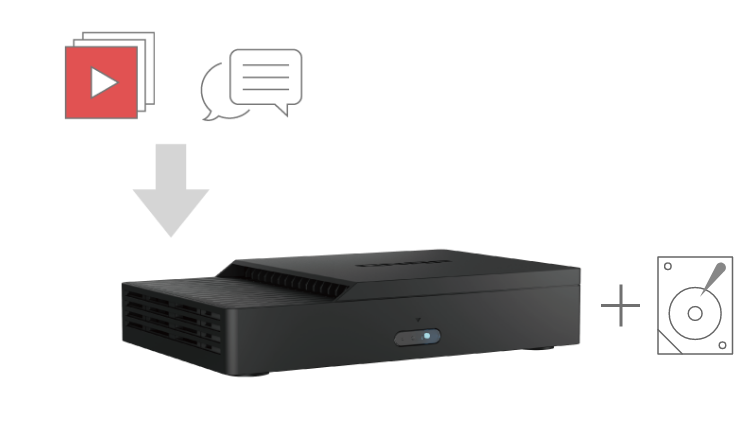

Local storage
Install a 2.5-inch SATA drive to store meeting videos, audio, and files.
Note: SSD/hard drive sold separately.

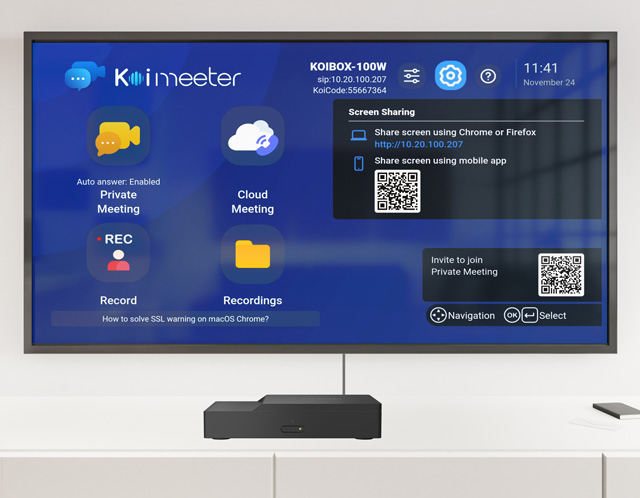

Connect, click, and start your meetings!
Simply connect the KoiBox-100W to an HDMI display and network, and you’re ready to go. Coupled with affordable cameras and microphones, you can easily start video conferencing and wireless presentations without requiring complex settings. Simply call another KoiBox-100W, KoiMeeter system, KoiMeeter mobile app, or compatible SIP system (such as Avaya® or Poly®) to start a high-resolution video conference, or alternatively join other cloud conferencing rooms*. The KoiBox-100W is the ideal solution for budget-constrained organizations to deploy in all their meeting rooms.
*Note: A keyboard and mouse are required for connecting to the KoiBox-100W for managing cloud conference.
Multiple I/O. Easy to use.
① Attach a power cord
② Video output to an HDMI display
③ Plug in a conference speaker, camera, keyboard, or mouse in the USB 3.2 Gen 2 Type-A ports.
④ Connect to a Gigabit Ethernet network
⑤ Kensington Security Slot
⑥ Supports Wi-Fi 6
⑦ Install a 2.5-inch SATA HDD/SSD (sold separately)
⑧ Use the RM-IR004 remote control

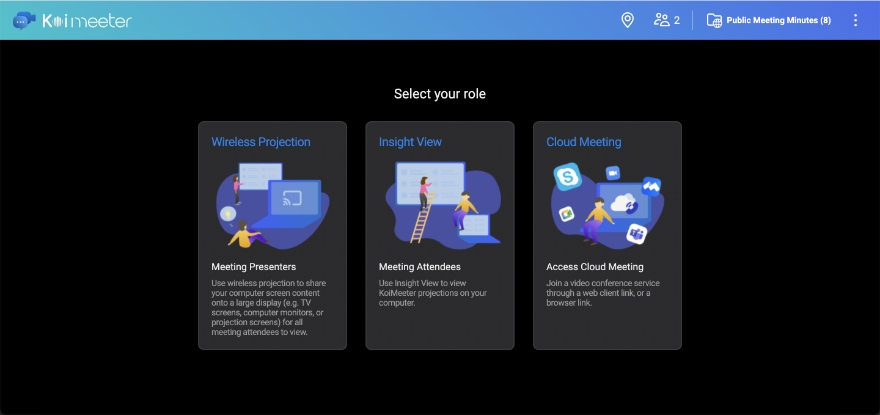

The KoiMeeter video conferencing operating system
KoiMeeter, engineered for optimal video conferencing experience, is the ideal solution for organizations to create private meeting systems with trusted security. It also offers great compatibility with mainstream cloud video conferencing services for seamless communication. The highly-anticipated 4K wireless projection makes it easy for all members in the same meeting room view the KoiBox-100W screen on an HDMI display without needing a dedicated computer.
Learn More: KoiMeeter
Up to four-way video conferencing and collaboration
The KoiBox-100W can form up to 4-way video conferencing with QNAP NAS running the KoiMeeter and mobile phones with KoiMeeter mobile app*. The KoiBox-100W also supports SIP systems and cloud meeting platforms for cross-platform communications.
*Note: The host of 4-way video conferencing must be a KoiBox-100W or KoiMeeter system.
Join meetings with NAS
Install KoiMeeter on a QNAP NAS to transform the NAS as a video conferencing system!
Learn more：KoiMeeter
Join meetings from mobile devices
Join meetings from anywhere by using the KoiMeeter mobile app.
Learn more：KoiMeeter mobile app
Join meetings from computers
Join meetings in a web browser (Chrome™ or Firefox®) by using the browser-based version of KoiMeeter.
Learn more：KoiMeeter
Join cloud meeting rooms
KoiBox-100W is well-integrated with popular cloud meeting platforms.
Join meetings with SIP systems
Flexibly join a multi-point video conference launched by a SIP system (such as Avaya, Poly, and others).
Automatically answer calls
Ensure you never miss any calls and meetings by enabling the auto answering function. It is useful for scenarios such as elderly or disabled people, or assembly line workers who can’t leave their position.
Note: Auto Answering is disabled by default for privacy concerns. Ensure that your environment is private and secure before enabling Auto Answering.
4K wireless projection. Free yourself from cables.
No cables. No software installation. KoiBox-100W provides a seamless wireless projection experience free from complex cabling and without the need of buying additional projection devices.
Cast your screen using a browser
Open a browser (Chrome™ or Firefox®), enter the display’s IP address, and project your screen to start the presentation. No additional wireless projectors, dongles, or software is needed.
4K UHD playback
KoiBox-100W supports up to 4K Ultra HD resolution that delivers your presentation with optimal image quality to engage your audience.
Four-way split screens
Display up to four split screens from different devices in a single presentation.
Four projection modes
Presenters can choose from “entire screen mode”, “specific application window mode” and “Chrome tab mode” to fit their needs. Screen Mirroring from macOS® and iOS® devices is also supported.
Notes: Firefox® does not support “Chrome tab mode”.
Remote projection
Simultaneously project one screen to multiple KoiBox-100W or KoiMeeter systems via the Internet for greater flexibility and convenience.
Setup and manage with ease.
System connection
Address book
Meeting minutes
Auto answer calls
Share your mobile phone screen
Simply scan the KoiBox-100W QR code to project your mobile phone screen and camera display on a monitor.
Remote view and chat room
Meeting participants can remotely view the presentation on their computers and use the built-in chat room to share files and have their voices heard.
Record and store meetings
KoiBox-100W includes a 2.5-inch SATA drive bay (SSD/hard drive sold separately) for storing meeting video (roughly 13 MB per minute), audio, and files in the chat room.
Note: Meetings created through Zoom®, Skype™, Microsoft Teams®, Cisco Webex®, and Google Meet™ can only be recorded based on their rules for cloud recording.
Easy-to-use, affordable video conferencing and wireless presentation experience
As an all-in-one video conferencing and wireless presentation solution, KoiBox-100W is perfect for small-to-medium meeting rooms, director’s offices, classrooms, lecture halls, and even home environments.
Video conferencing
Mobile meetings
Wireless presentations for lectures
Online study or home entertainment
KoiBox-100W bandwidth requirements
You might also need the following
Most of the devices compliant with USB standards can work with the KoiBox-100W. The listed devices below are tested and recommended by QNAP.
| Camera | Conference Speaker | Camera + Microphone |
|---|---|---|
 |
 |
 |
| Logitech Rally Camera Logitech PTZ Pro 2 Logitech C615 Logitech C922 Logitech C925e Logitech C930e Logitech BRIO |
Jabra Speak 410 Jabra Speak 510 Jabra Speak 710 |
Logitech MeetUp Logitech CONNECT Logitech BCC950 ConferenceCam Logitech GROUP |
Note:
1. Mandatory accessories: camera (keyboard and mouse are necessary for joining cloud meetings)
2. Optional accessories: Conference speaker, camera, and microphone system
Short Tech Specification
| KoiBox-100W: High-quality video conferencing and 4K wireless presentation solution for business meeting rooms |
Detailed Tech Specification
Hardware Specs
KoiBox-100W
| CPU | Intel® Celeron® dual-core 1.8GHz |
| System Memory | 4GB DDR4 |
| Flash Memory | M.2 2242 SSD 30GB |
| Drive Bay | 1 x 2.5-inch SATA (HDD/SSD not included) |
| Gigabit Ethernet Port | 1 x 1GbE RJ45 |
| Wi-Fi / Bluetooth | Intel Wi-Fi 6 AX201, 802.11ax, Bluetooth 5.2 |
| HDMI Output | 1 x HDMI 1.4b output |
| USB Port | 4 x USB 3.2 Gen 2 Type-A |
| IR sensor | Yes, supports remote controller (RM-IR004) |
| Buttons | 1 x Power button |
| LED Indicators | Power status (On: blue, Standby: blue breathing light, Off: red) |
| Power Supply Unit | 36W, 100-240V DC, 50/60Hz |
| Security Slot | 1x Kensington security slot |
| Dimensions (H x W x D) | 45 x 232 x 152 mm |
| Net Weight | 1.09 kg (2.4lbs) |
| Operating Temperature & Relative Humidity | 0 ~ 40˚C ( 32˚F ~ 104˚F )，5 – 95% RH non-condensing |
| Processor | Intel Celeron |
|---|---|
| Memory | 4GB |
