QNAP 6 Gbps 2.5-inch SAS to SATA drive adapter in 2.5-inch drive form factor for dual controller servers – QDA-SA3-4PCS
QDA-SA3
2.5-inch 6Gbps SAS to SATA drive adapter (Designed for dual-controller all-flash ES2486dc NAS)
Overview
Features
The QDA-SA3 adapter is designed for QNAP’s dual-controller all-flash array Enterprise ZFS NAS (ES2486dc) and allows the usage of a SATA 6Gbps drive in a 2.5-inch SAS 12Gbps/6Gbps drive bay — providing the ability to expand storage capacity with cost-effective SATA drives.
Note: QDA-SA3 adapters are sold in a pack of four. (Order number: QDA-SA3-4PCS)
1. Supports 2.5-inch SATA HDD/SSD.
2. Up to 6Gb/s file transfer speeds.
3. The installed SATA drive can share SAS dual-port advantages for higher reliability.

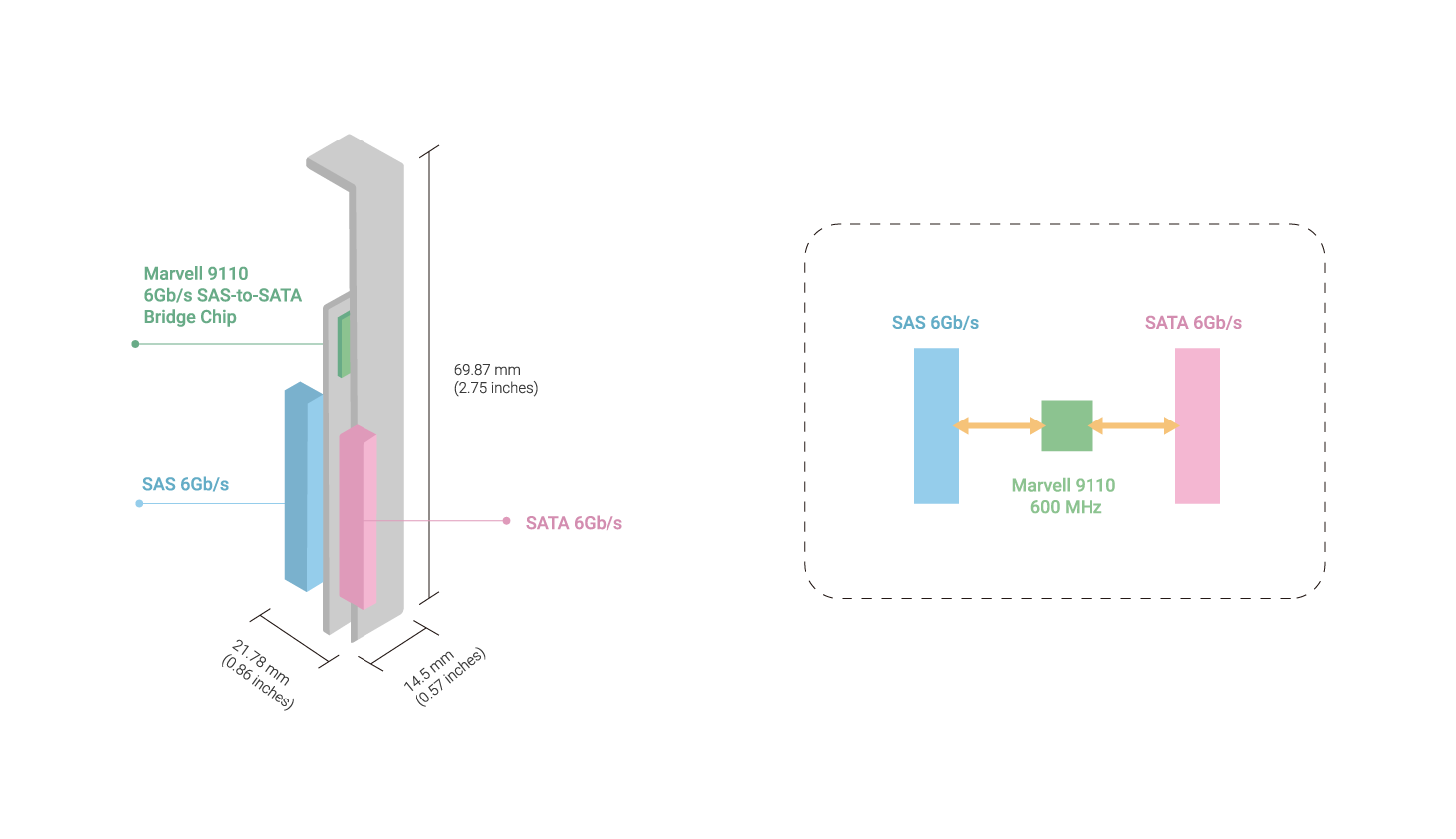

Architecture diagram
Note: The connected drive may not reach its optimal performance due to protocol translation and some overhead.

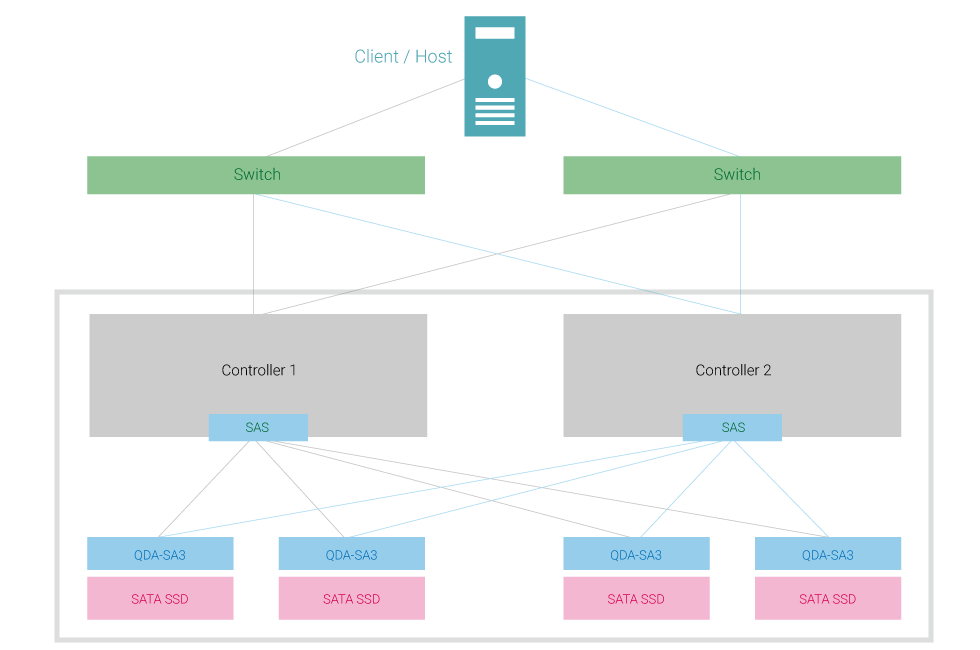

SAS dual-port advantage for fault tolerance
SAS features dual porting for redundancy, eliminating single points of failure and allowing for higher reliability and performance. By installing a SATA drive with the QDA-SA3 into a dual-controller all-flash Enterprise ZFS NAS, the SATA drive can share these SAS dual-port advantages to ensure a high-availability, fault tolerant enterprise storage environment.

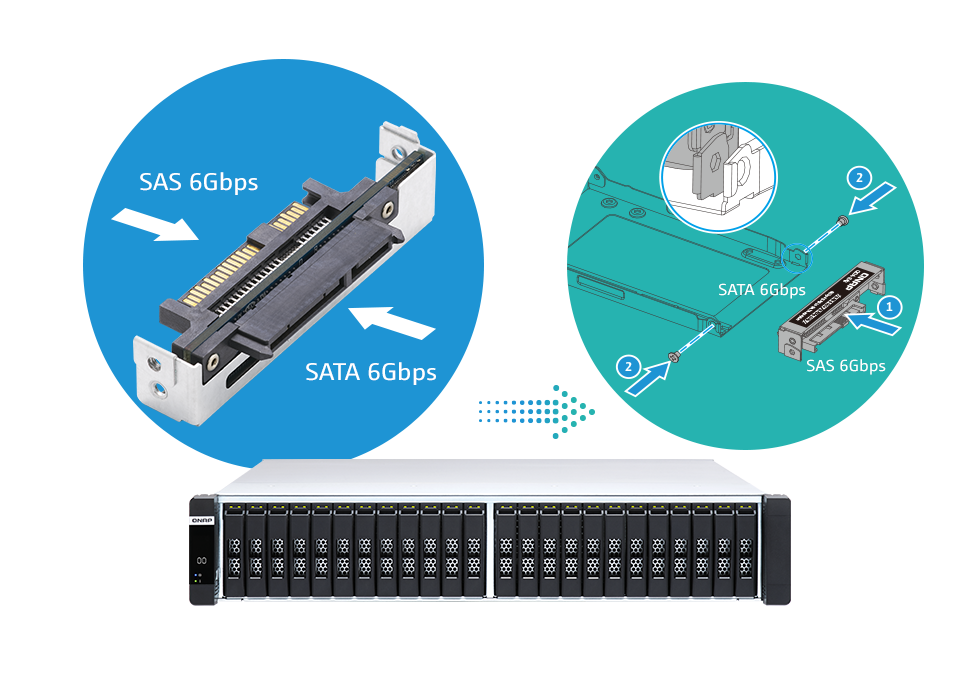

Designed for all-flash Enterprise ZFS NAS
The QDA-SA3 can be easily installed in the 2.5-inch disk tray of an all-flash array Enterprise ZFS NAS (ES2486dc disk tray model: TRAY-25-NK-BLK04).
Note: QDA-SA3 does not support SSD TRIM and the drive S.M.A.R.T. feature is not supported on non-QES operating system.
Short Tech Specification
| 6 Gbps 2.5-inch SAS to SATA drive adapter in 2.5-inch drive form factor for dual controller servers |
Detailed Tech Specification
Hardware Specs
2.5-inch 6Gbps SAS to SATA drive adapter (Designed for dual-controller all-flash ES2486dc NAS)
| Supported Dirves | 1 x 2.5-inch SATA 6Gbps SSD |
| Host Interface | SAS 6Gbps |
| Supported Operating Systems | QES 2.1.0 (or later) for dual controller NAS or JBOD |
| Dimension | 69.87 × 21.78 × 14.5 mm |
| Weight | 0.02 kg |
| Note | QDA-SA3 adapters are sold in a pack of four.
The connected drive may not reach its optimal performance due to protocol translation and some overhead. QDA-SA3 does not support SSD TRIM and the drive S.M.A.R.T. feature is not supported on non-QES operating system. |
